• Input Voltage Range: 1V to 5.5V

• Maximum Continuous Current: 2A

• Low On-Resistance

  RON = 29mΩ at VIN = 4.35V

• RON = 30mΩ at VIN = 3.3V

• RON = 36mΩ at VIN = 1.0V

• Low Shutdown Current: 90nA (TYP)

• Reverse Current Protection When Disabled

• Low Threshold 1.8V GPIO Control Input

• Bidirectional Power Supply for Power Zone Application

• Rise Time:

  SGM2578AAD: 200μs (TYP)

  SGM2578ABD: 5000μs (TYP)

• Quick Output Discharge

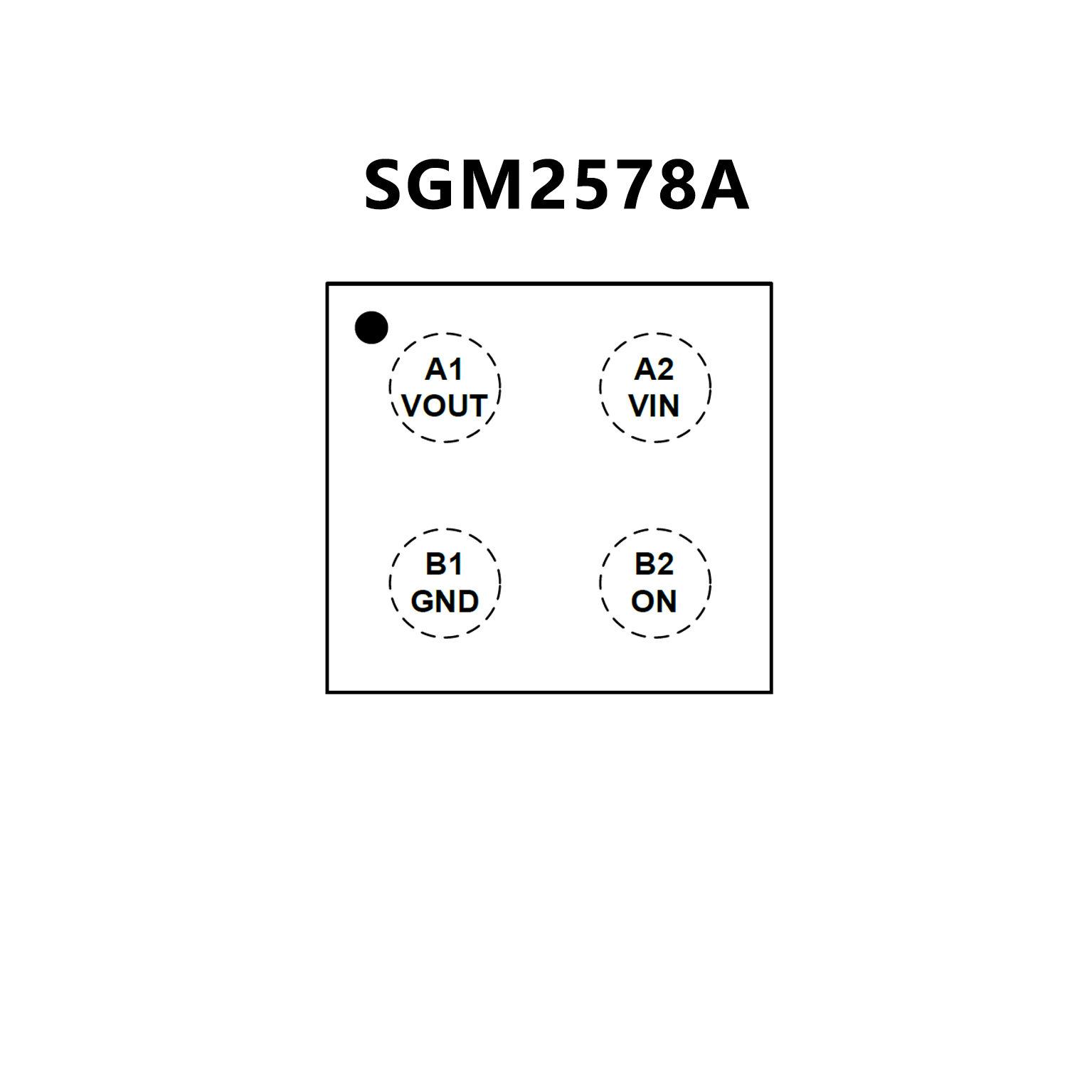

• Available in a Green WLCSP-0.9×0.9-4B-A Package
