Ultra Small, Low Input Voltage, Low RON Load Switch,SGM2578AADYGTR Replace FPF1504UCX.
SGM2578AAD
SGM2578AAD.pdf
SGM2578AAD.pdfFEATURES
• Input Voltage Range: 1V to 5.5V
• Maximum Continuous Current: 2A
• Low On-Resistance
RON = 29mΩ at VIN = 4.35V
RON = 30mΩ at VIN = 3.3V
RON = 36mΩ at VIN = 1.0V
• Low Shutdown Current: 90nA (TYP)
• Reverse Current Protection When Disabled
• Low Threshold 1.8V GPIO Control Input
• Bidirectional Power Supply for Power Zone
Application
• Rise Time:
SGM2578AAD: 200μs (TYP)
SGM2578ABD: 5000μs (TYP)
• Quick Output Discharge
• Available in a Green WLCSP-0.9×0.9-4B-A Package

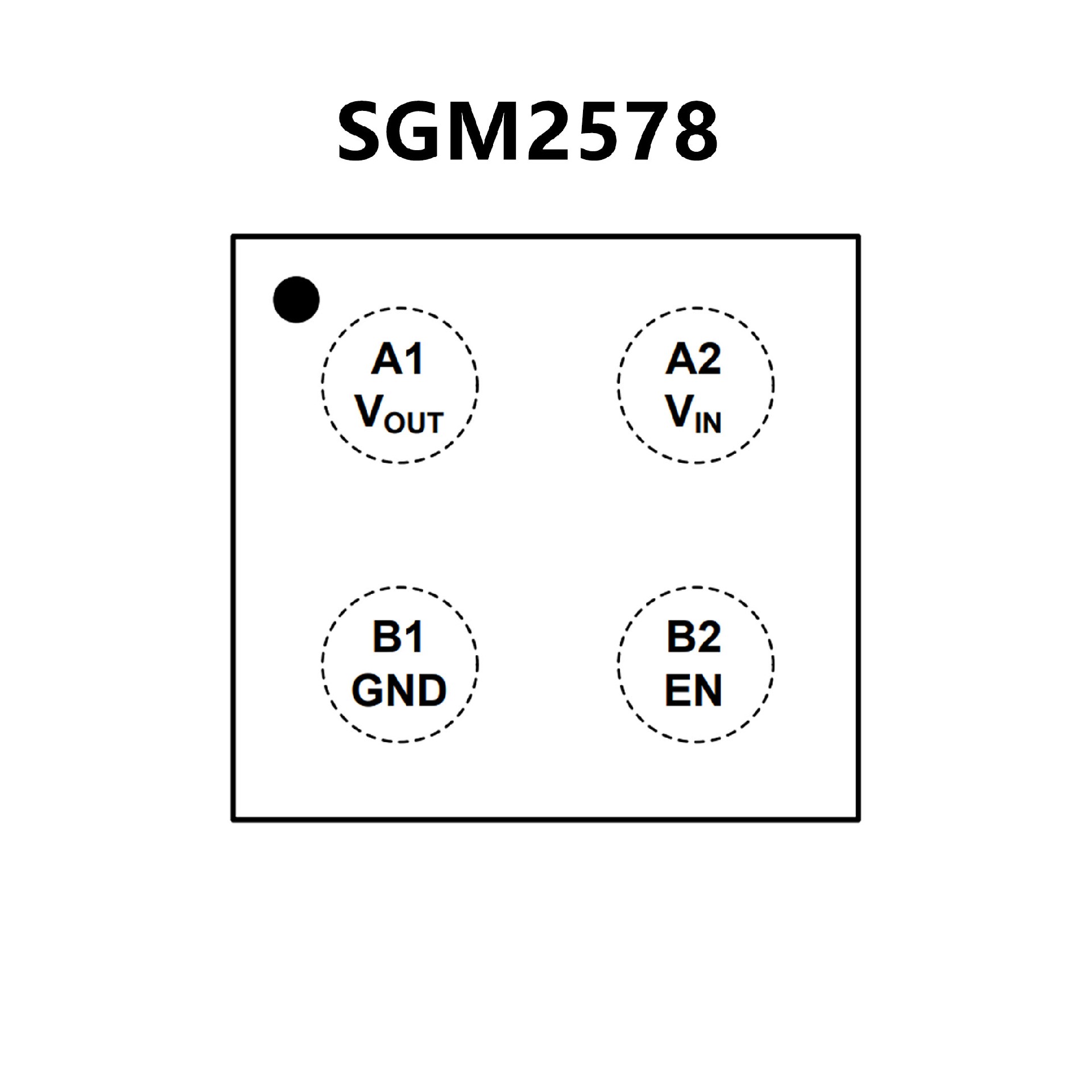

PIN CONFIGUTION
优势替代
FEATURES
• 1.0至3.6 V的输入电压工作范围
• 典型RDS(ON):
• 15 mΩ(VIN = 3.3 V时)
• 20 mΩ(VIN = 1.8 V时)
• VIN = 1.0 V时为40 mΩ
• 转换速率控制
• 输入放电功能
• 小于1 µA的低静态电流(VON = VIN)
• 静电放电保护: 4000 V HBM, 2000 V CDM
• 兼容GPIO/CMOS,的使能电路
• 高电平有效版本和低电平有效版本

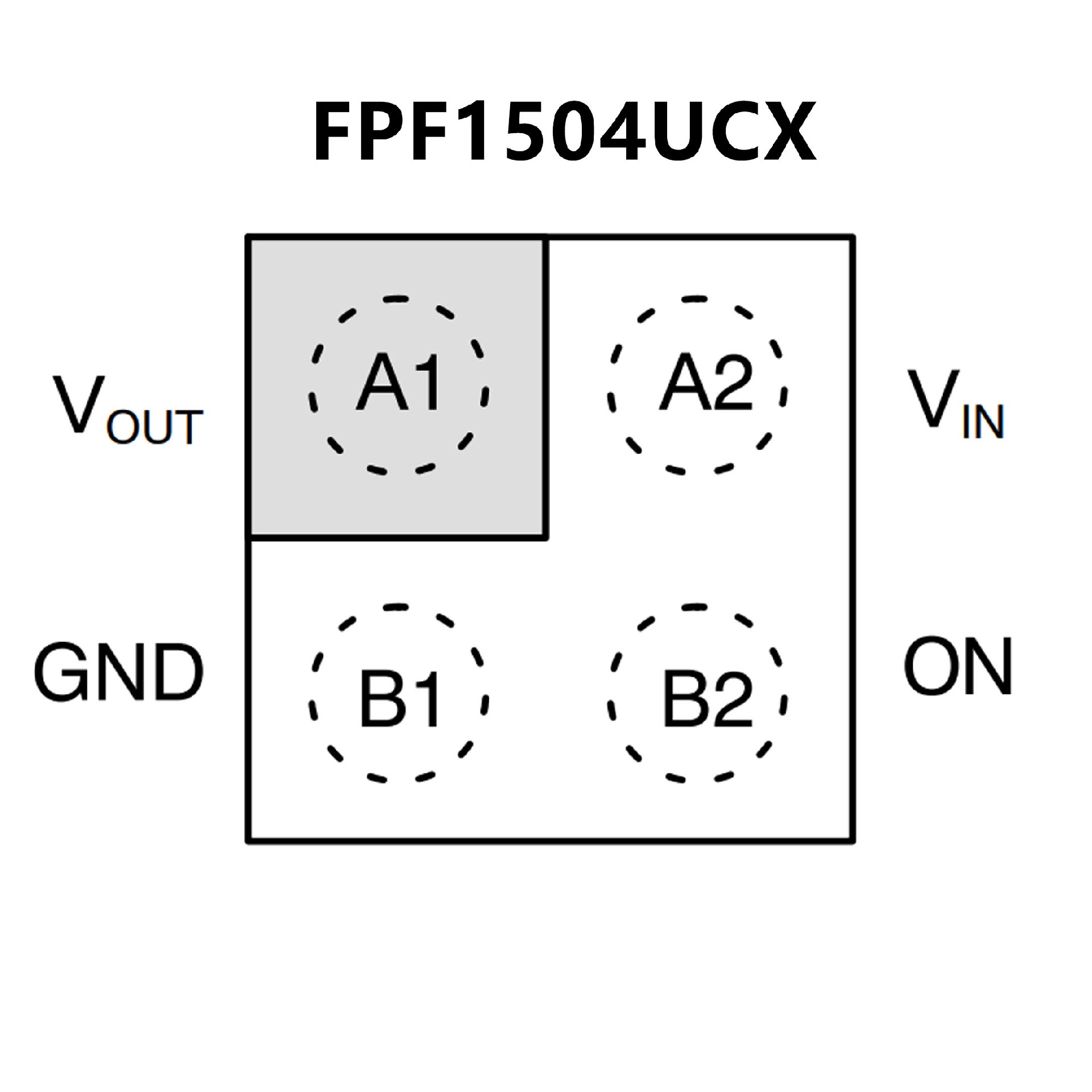

PIN CONFIGUTION
