• 100mΩ (TYP) High-side N-Channel MOSFET

• Three Current Limit Levels

   SGM2581A/B/G: 1100 ± 110mA

   SGM2581C/D/I: 2100 ± 220mA

   SGM2581E/F/K: 2600 ± 310mA

• Input Voltage Range: 2.5V to 5.5V

• Low 23μA Quiescent Current

• Typical 0.1μA Shutdown Current

• Soft-Start Function

• Thermal Shutdown Protection

• Under-Voltage Lockout Protection for VIN

• No Reversed Leakage Current (Reverse Blocking)

• Fault Flag (FAULT ) with 13ms Filter Eliminates

  False Assertions

• Automatic Output Discharge in Shutdown Mode

  (SGM2581A/B/C/D/E/F)

• 500kΩ Pull-Down Resistor at EN Pin

  (SGM2581G/I/K)

• Evaluated to IEC 60950-1, Ed 2, Am1, Annex CC,

  Test Program 1 with CB Report (SGM2581A/C/E)

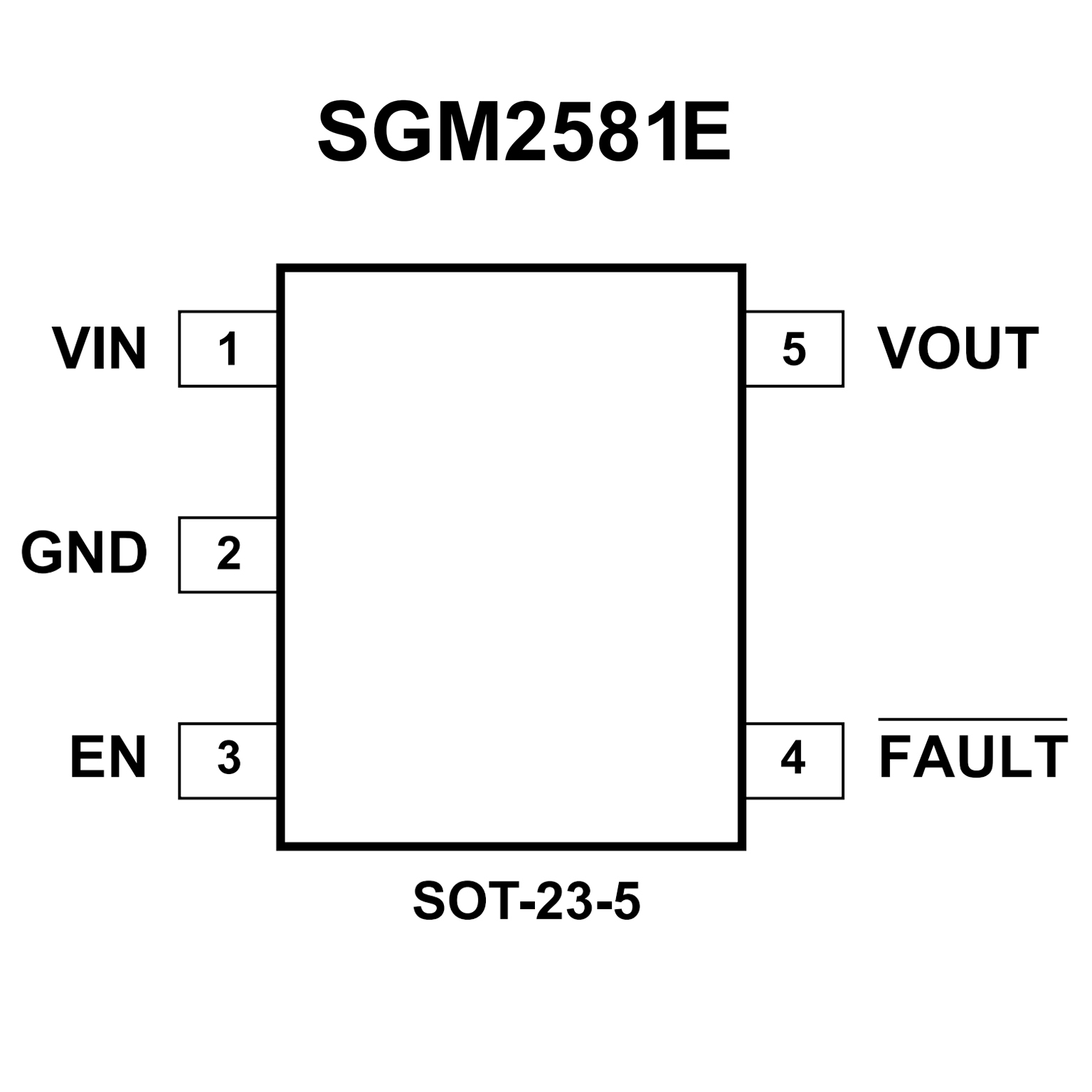

• Available in the Green SOT-23-5 Package
