• 100mΩ (TYP) High-side N-Channel MOSFET

• Three Current Limit Levels

  SGM2588A/B/G: 1100 ± 100mA

  SGM2588C/D/I: 2100 ± 210mA

  SGM2588E/F/K: 2600 ± 300mA

• Input Voltage Range: 2.5V to 5.5V

• Low 23μA Quiescent Current

• Typical 0.1μA Shutdown Current

• Soft-Start Function

• Thermal Shutdown Protection

• Under-Voltage Lockout Protection for VIN

• No Reversed Leakage Current (Reverse Blocking)

• Fault Flag (FAULT) with 13ms Filter Eliminates

  False Assertions

• Automatic Output Discharge in Shutdown Mode

  (SGM2588A/B/C/D/E/F)

• 500kΩ Pull-Down Resistor at EN Pin

  (SGM2588G/I/K)

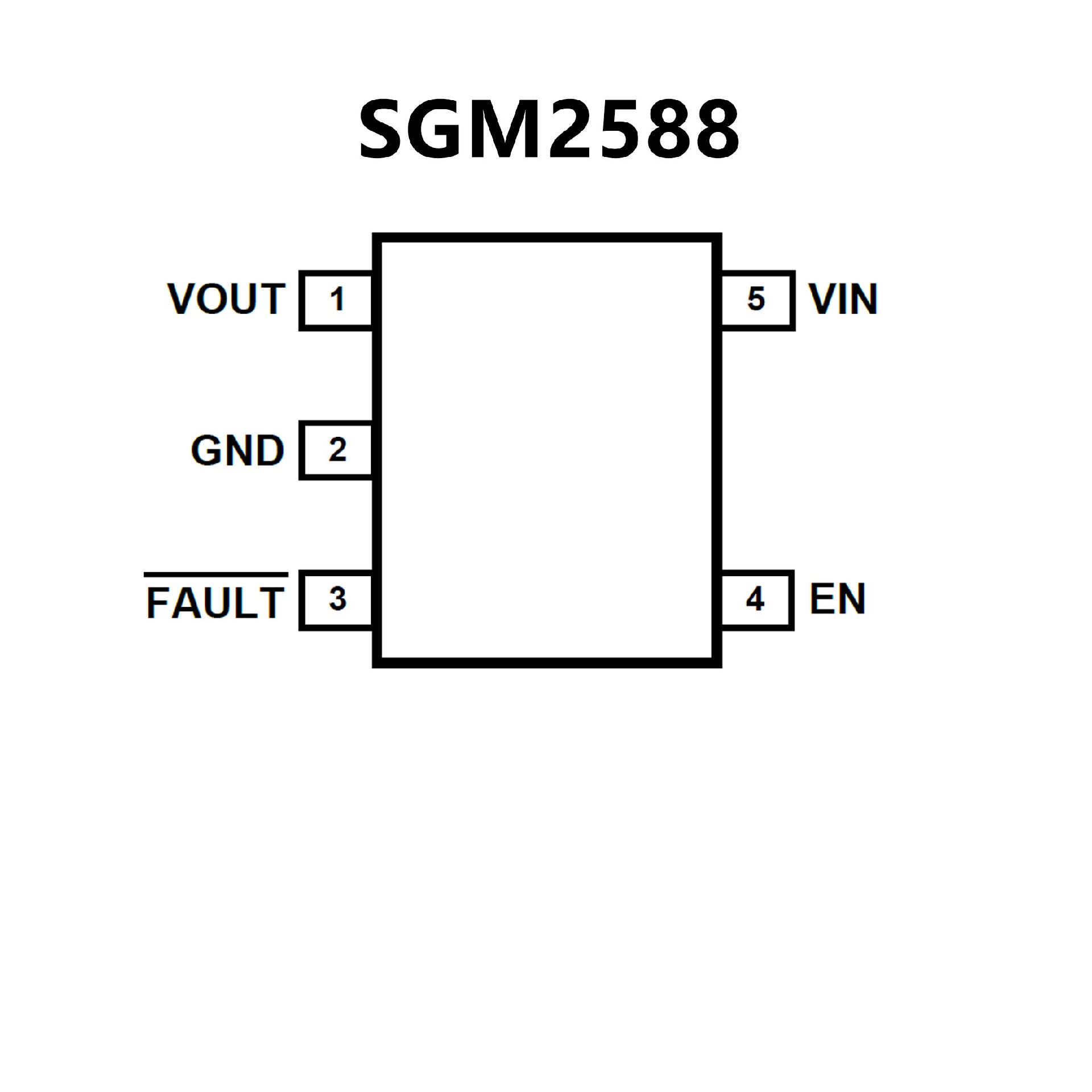

• Available in the Green SOT-23-5 Package
