70mΩ/55mΩ, 3A/2.5A/2A/1.5A/1A/0.5A High-Side Power Switches with Flag, SGM2588 Replace RT9742.
SGM2588
SGM2588.pdf
SGM2588.pdfFEATURES
• 100mΩ (TYP) High-side N-Channel MOSFET
• Input Voltage Range: 2.5V to 5.5V
• Low 23μA Quiescent Current
• Typical 0.1μA Shutdown Current
• Soft-Start Function
• Thermal Shutdown Protection
• Under-Voltage Lockout Protection for VIN
• No Reversed Leakage Current (Reverse Blocking)
• Fault Flag (FAULT) with 13ms Filter Eliminates
False Assertions
PIN CONFIGUTION
优势替代
FEATURES
• 70mΩ/55mΩ (typ.) N-MOSFET Switch
• Operating Range : 2.7V to 6V
• Reverse Blocking Current
• Under Voltage Lockout
• Deglitched Fault Report (FLG)
• Thermal Protection with Fold-back
• Over Current Protection
• Short Circuit Protection
• UL Approved−E219878
• Nemko Approved-NO109777

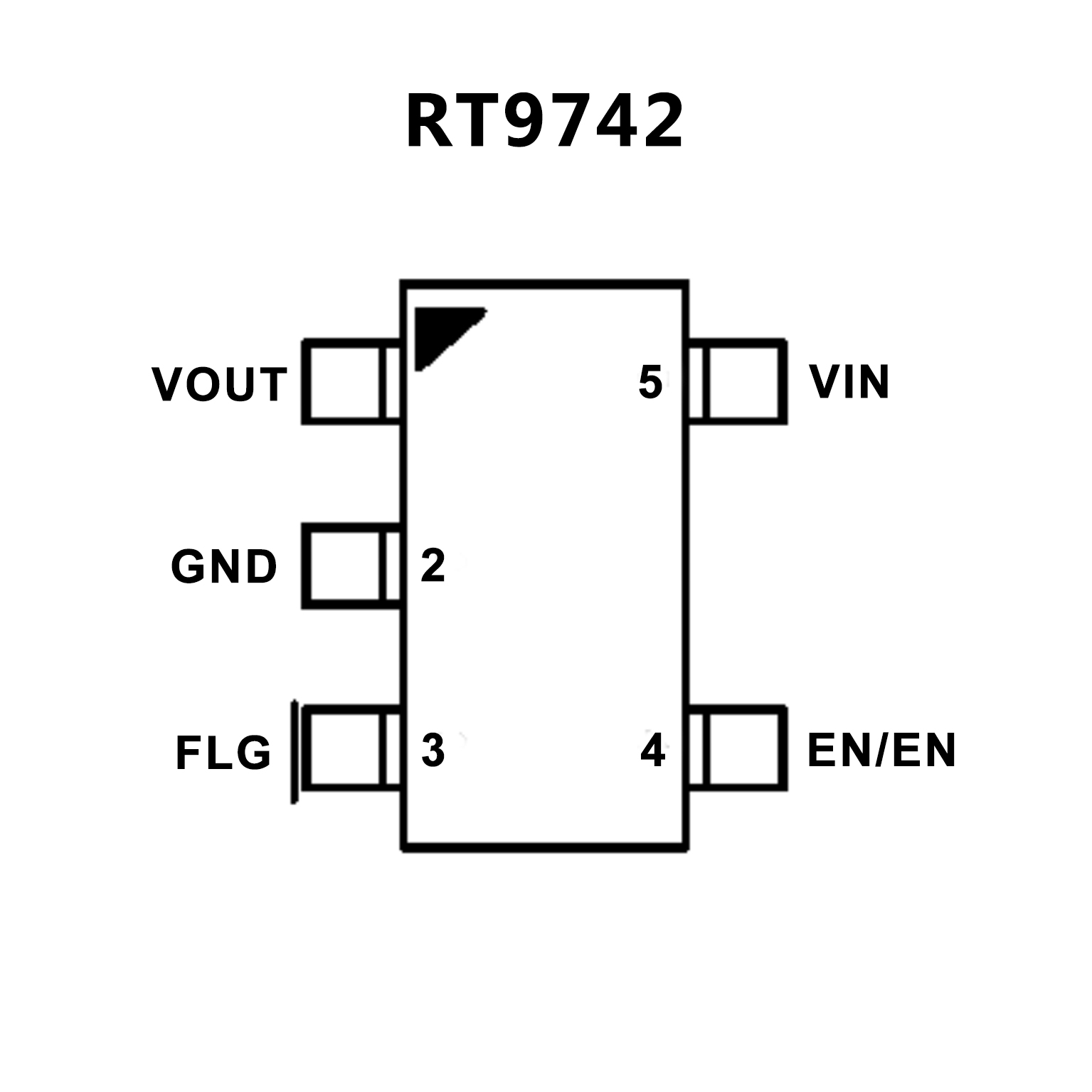

PIN CONFIGUTION
