SGM2588.pdf• 100mΩ (TYP) High-side N-Channel MOSFET
• Three Current Limit Levels
SGM2588A/B/G: 1100 ± 100mA
SGM2588C/D/I: 2100 ± 210mA
SGM2588E/F/K: 2600 ± 300mA
• Input Voltage Range: 2.5V to 5.5V
• Low 23μA Quiescent Current
• Typical 0.1μA Shutdown Current
• Soft-Start Function
• Thermal Shutdown Protection
• Under-Voltage Lockout Protection for VIN
• No Reversed Leakage Current (Reverse Blocking)
• Fault Flag (FAULT ) with 13ms Filter Eliminates
False Assertions
• Automatic Output Discharge in Shutdown Mode
(SGM2588A/B/C/D/E/F)
• 500kΩ Pull-Down Resistor at EN Pin
(SGM2588G/I/K)
• Available in the Green SOT-23-5 Package
• Single USB Port Power Switches
• Over-Current and Thermal Protection
• 1.5A Accurate Current Limiting
• Reverse Current Blocking
• 95mΩ On-Resistance
• Input Voltage Range: 2.7V – 5.5V
• 0.6ms Typical Rise Time
• Very Low Shutdown Current: 1µA (max)
• Fault Report (FLG) with Blanking Time (7ms typ)
• ESD Protection: 4kV HBM, 300V MM

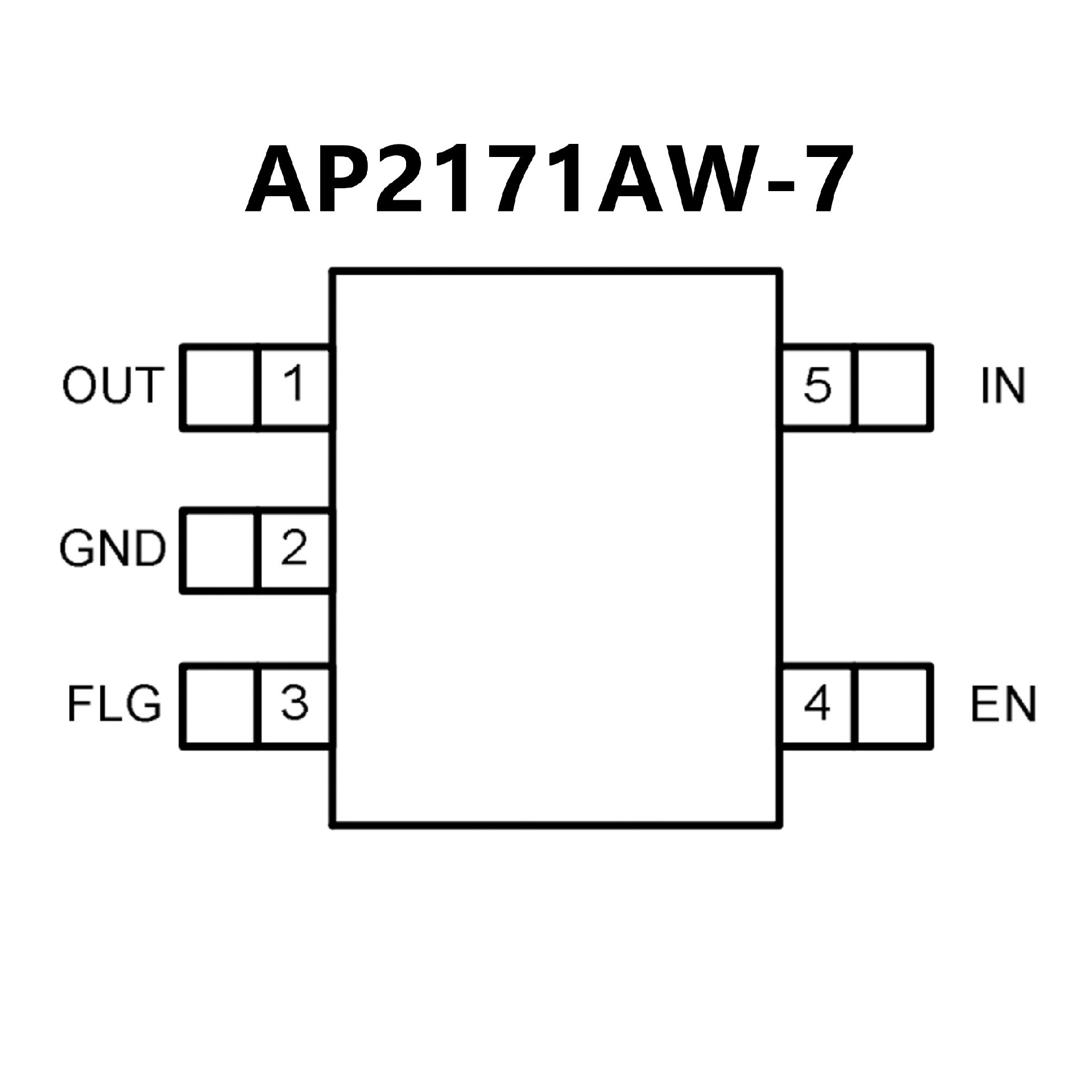

• Active Low (AP2161A) or Active High (AP2171A) Enable
• Ambient Temperature Range: -40°C to +85°C
• SOT25, SO-8, MSOP-8EP (Exposed Pad),
and U-DFN2018-6:
Available in “Green”
Molding Compound (No Br, Sb)
• Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
• Halogen and Antimony Free. “Green” Device (Note 3)
• UL Recognized, File Number E322375
• IEC60950-1 CB Scheme Certified
