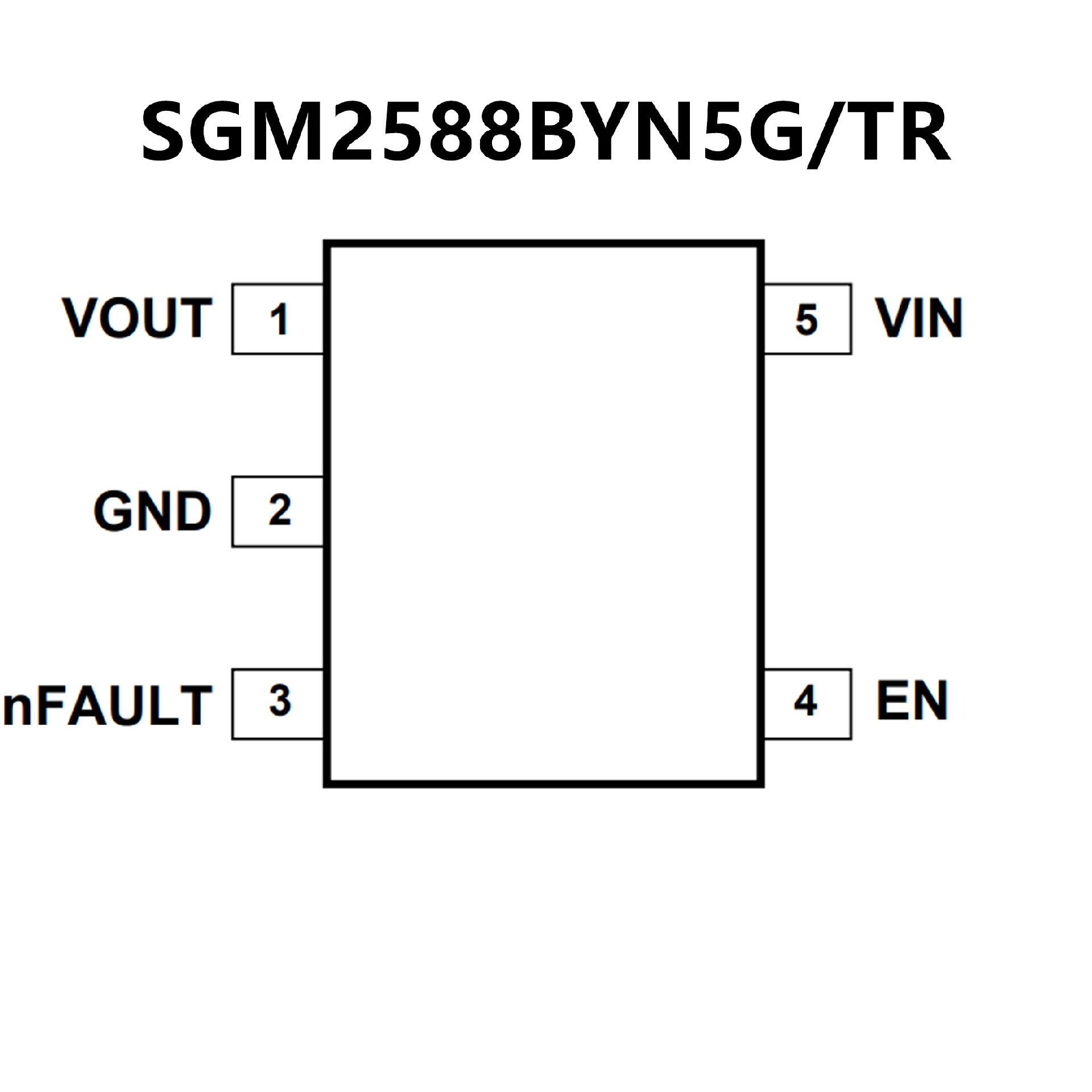

SGM2588B.pdf• 100mΩ (TYP) High-side N-Channel MOSFET
• Three Current Limit Levels
SGM2588A/B/G: 1100 ± 100mA
SGM2588C/D/I: 2100 ± 210mA
SGM2588E/F/K: 2600 ± 300mA
• Input Voltage Range: 2.5V to 5.5V
• Quiescent Current: 23μA (TYP)
• Shutdown Current: 0.1μA (TYP)
• Soft-Start Function
• Thermal Shutdown Protection
• Under-Voltage Lockout Protection for VIN
• No Reversed Leakage Current (Reverse Blocking)
• Fault Flag (nFAULT) with 13ms Filter
Eliminates
False Assertions
• Automatic Output Discharge in Shutdown Mode
(SGM2588A/B/C/D/E/F)
• 500kΩ Pull-Down Resistor at EN Pin
(SGM2588G/I/K)
• Evaluated to IEC 60950-1, Ed 2, Am1,
Annex CC,
Test Program 1 with CB Report
(SGM2588A/C/E/G/I/K)
• Available in Green SOT-23-5 Package
• 50mΩ Integrated N-MOSFET Switch
• Accurate Current Limit
• FLG: active low
• Constant-Current During Over-Current
• Fast Short-Circuit Response Time: 2µs (typ.)
• Operating Range: 2.7V - 5.5V
• Built-in Soft-Start with 3ms Typical Rise Time
• Over-Current, Output Over-Voltage
and
Thermal Protection
• Fault Report (FAULT) with De-glitch Time
• UL Recognized, File Number E497605
• IEC Recognized, File Number DK-69902-UL
• ESD Protection: 2kV HBM, 500V CDM
• Available in SOT23-5, SOT23-6
and
DFN2X2-6Packages
