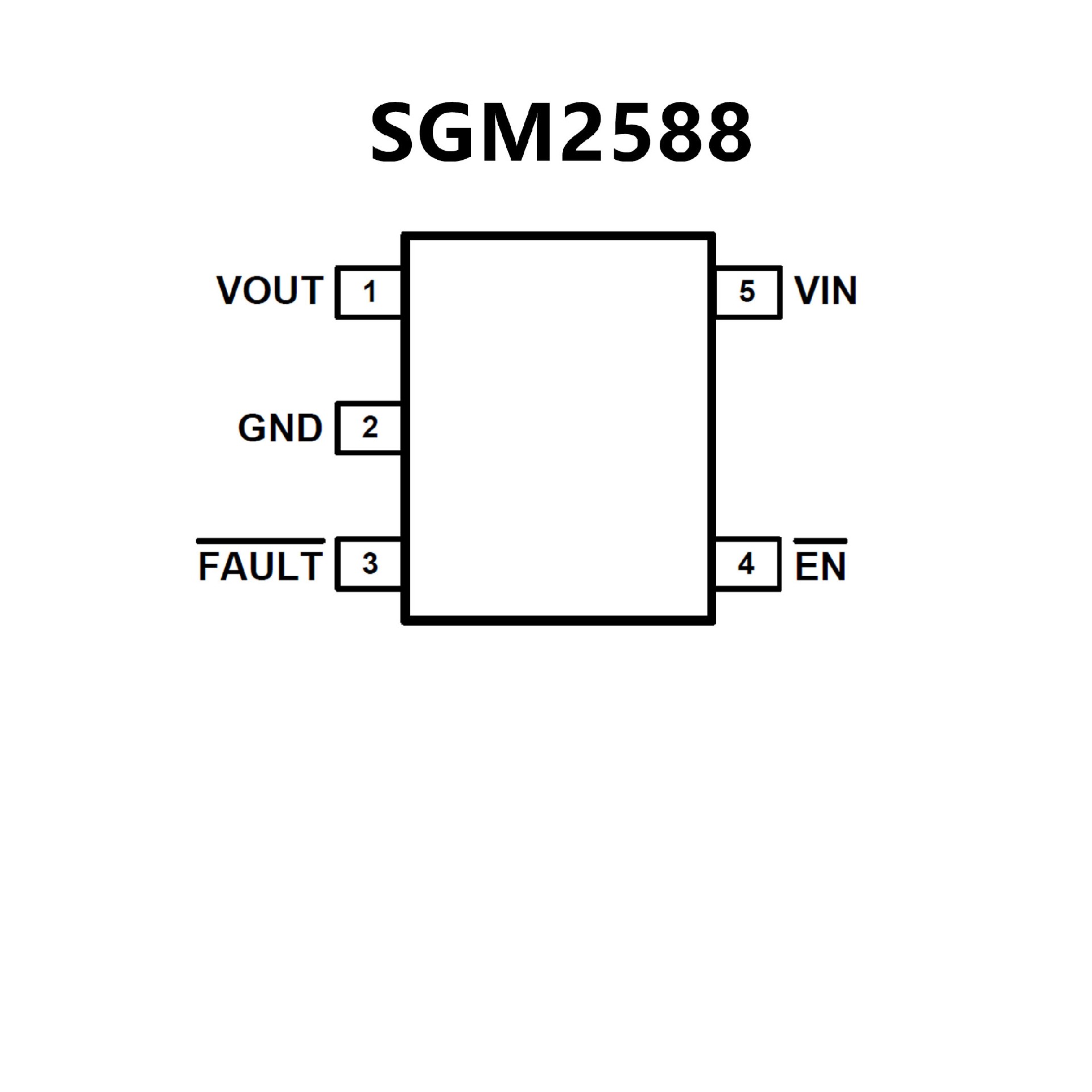

SGM2588FYN5GTR.pdf• 100mΩ (TYP) High-side N-Channel MOSFET
• Three Current Limit LevelsSGM2588A/B/G:
1100 ± 100mASGM2588C/D/I: 2100 ± 210mA
SGM2588E/F/K: 2600 ± 300mA
• Input Voltage Range: 2.5V to 5.5V
• Low 23μA Quiescent Current
• Typical 0.1μA Shutdown Current
• Soft-Start Function
• Thermal Shutdown Protection
• Under-Voltage Lockout Protection for VIN
• No Reversed Leakage Current (Reverse Blocking)
• Fault Flag (FAULT ) with 13ms Filter
EliminatesFalse Assertions
• Automatic Output Discharge in Shutdown
Mode(SGM2588A/B/C/D/E/F)
• 500kΩ Pull-Down Resistor at EN Pin(SGM2588G/I/K)
• Available in the Green SOT-23-5 Package

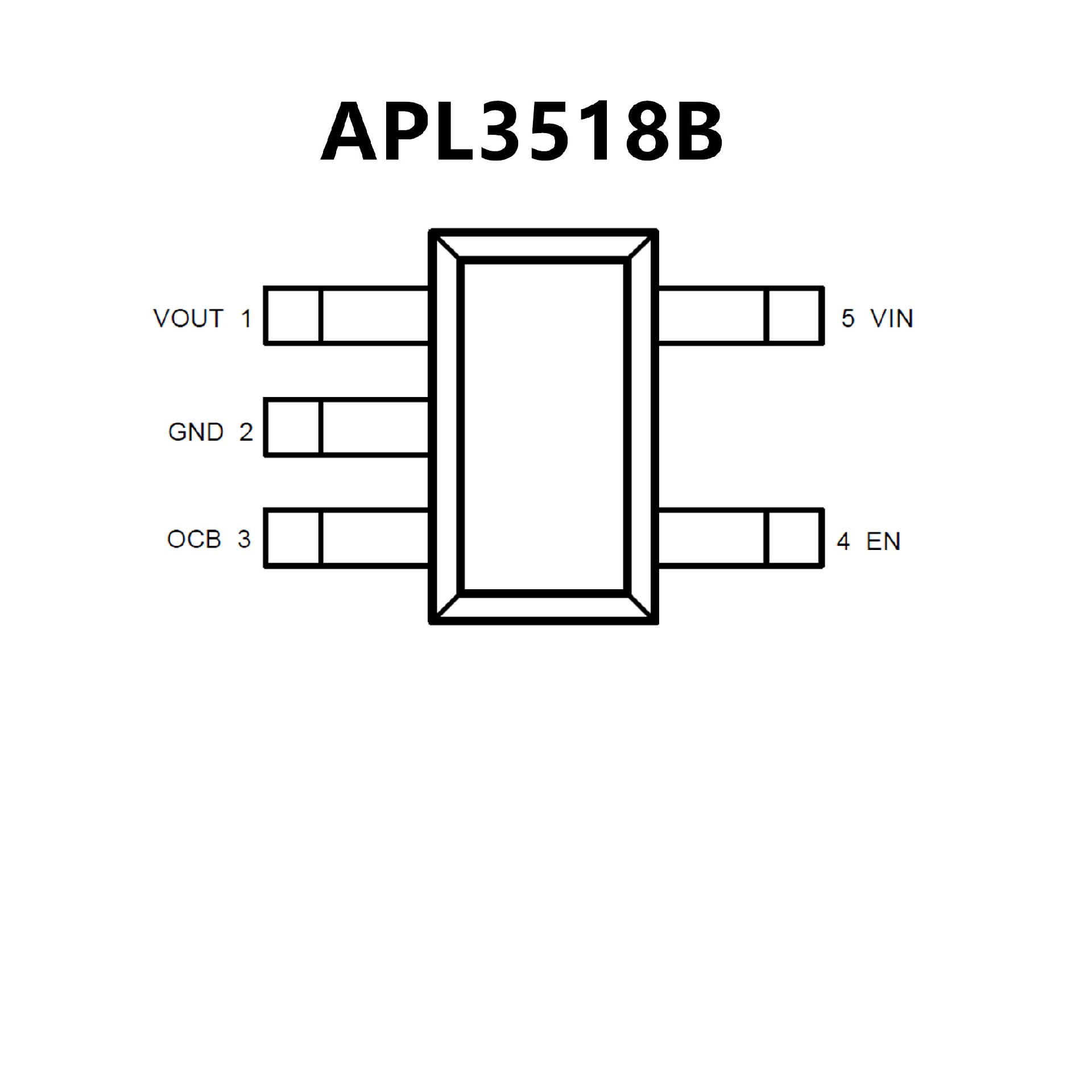

• 62mW High Side MOSFET
• Wide Supply Voltage Range: 2.7V to 5.5V
• Current-Limit and Short-Circuit Protections
• Over-Temperature Protection
• Fault Indication Output
• Enable Input
• UL Approved-File No. E328191
• Nemko IEC 60950-1:2005(2nd Edition);
Am 1:2009CB Scheme Certified, No.62377
• TUV IEC 60950-1:2005+A1:2009 andEN
60950-1:2006+A11:2009+A1:2010
Certified,No.44 780 11 393954
• Lead Free and Green Devices
Available(RoHS Compliant)
