Power Distribution Switches, SGM2590XN5G/TR Replace DIO7002AST5.
SGM2590
SGM2590.pdf
SGM2590.pdfFEATURES
• High-side N-MOSFET
• On-Resistance: 60mΩ (TYP)
• Programmable Current Limit Range: 0.1A to 3A
1.5A at RILIM = 4.53kΩ
• Input Voltage Range: 2.5V to 6V
• Quiescent Current: 27μA (TYP)
• Shutdown Current: 0.28μA (TYP)
• Soft-Start Function
• Over-Temperature Protection
• Under-Voltage Lockout Protection for VIN
• No Reversed Leakage Current (Reverse Blocking)
• Quick Output Discharge (SGM2590D Only)
• 1.2MΩ Pull-Down Resistor at EN Pin
• Available in a Green SOT-23-5 Package

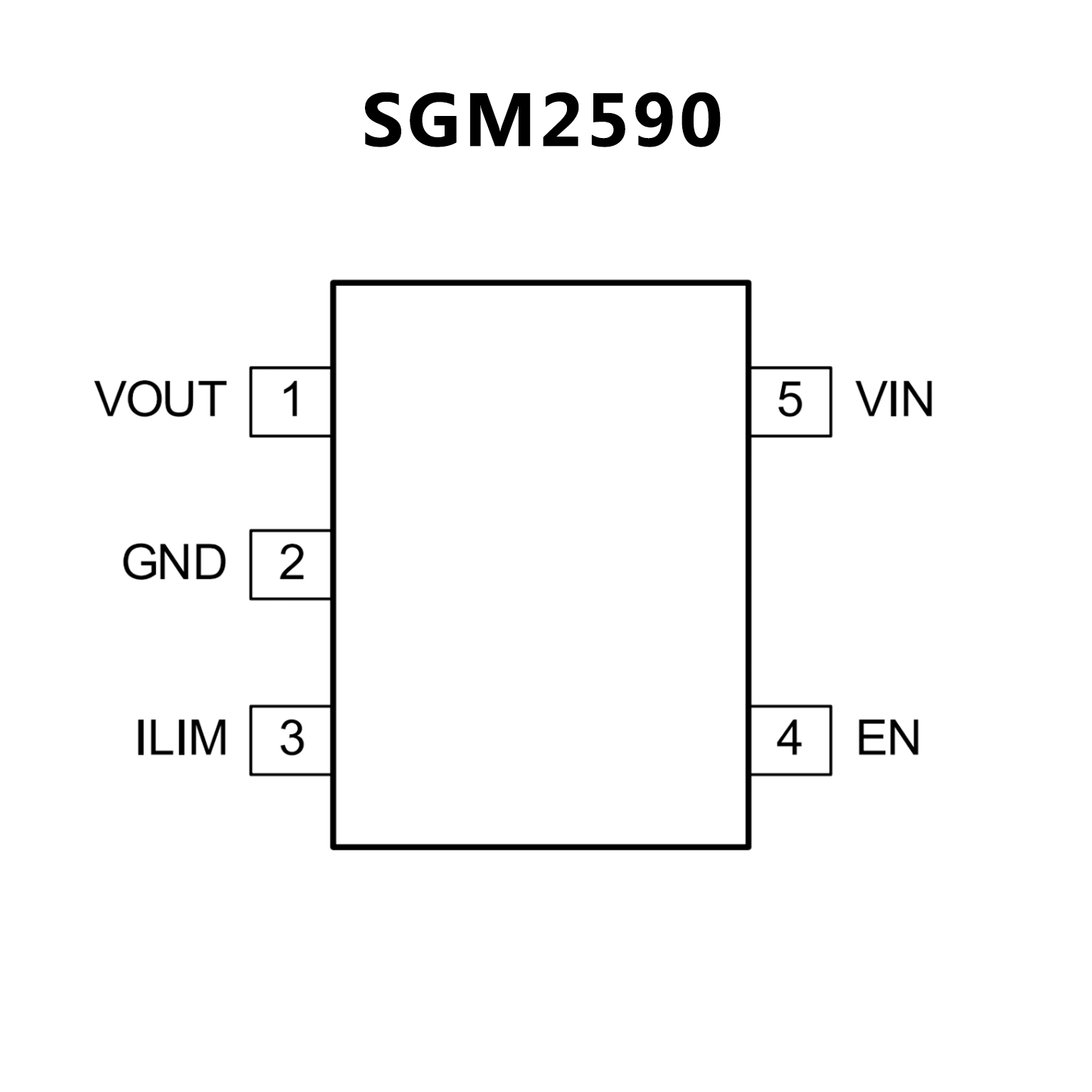

PIN CONFIGUTION
优势替代
FEATURES
• Input voltage: 2.7V to 5.5V
• Typical 70mΩ on-resistance
• 2.5A load current capability
• Programmable current limit
• Enable polarity:
DIO7002A: Active high
DIO7002B: Active Low
• Over current protection, short circuit protection and over temperature protection
• Reverse blocking (no body diode)
• No reverse current when power ON or power OFF
• Compact SOT23-5 package minimizes the board space

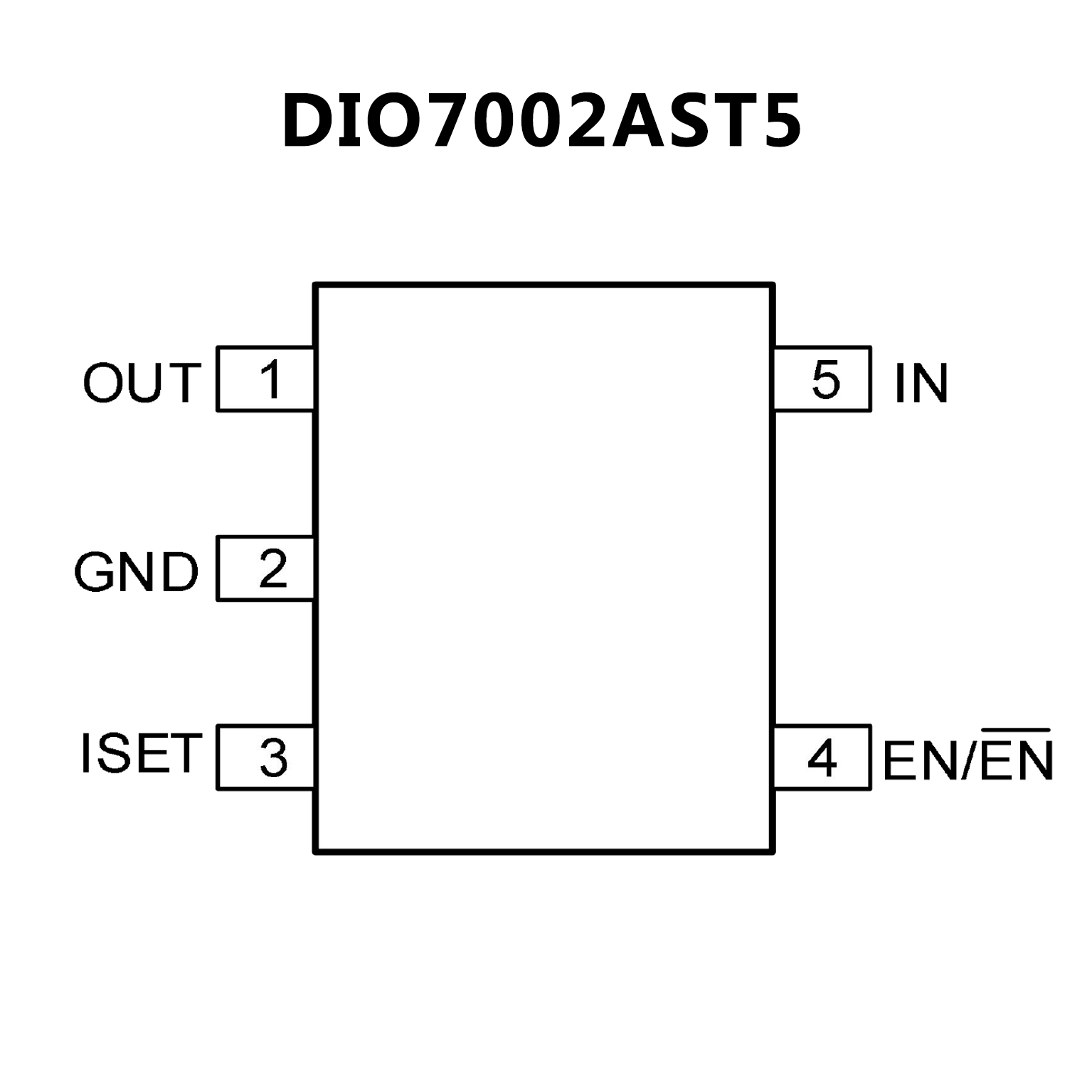

PIN CONFIGUTION
