Low Loss Power Distribution Switch, SGM2590 Replace SY6280AAAC.
SGM2590
SGM2590.pdf
SGM2590.pdfFEATURES
• High-side N-MOSFET
• On-Resistance: 60mΩ (TYP)
• Programmable Current Limit Range: 0.1A to 3A
1.5A at RILIM = 4.53kΩ
• Input Voltage Range: 2.5V to 6V
• Quiescent Current: 27μA (TYP)
• Shutdown Current: 0.28μA (TYP)
• Soft-Start Function
• Over-Temperature Protection
• Under-Voltage Lockout Protection for VIN
• No Reversed Leakage Current (Reverse Blocking)
• Quick Output Discharge (SGM2590D Only)
• 1.2MΩ Pull-Down Resistor at EN Pin
• Available in a Green SOT-23-5 Package

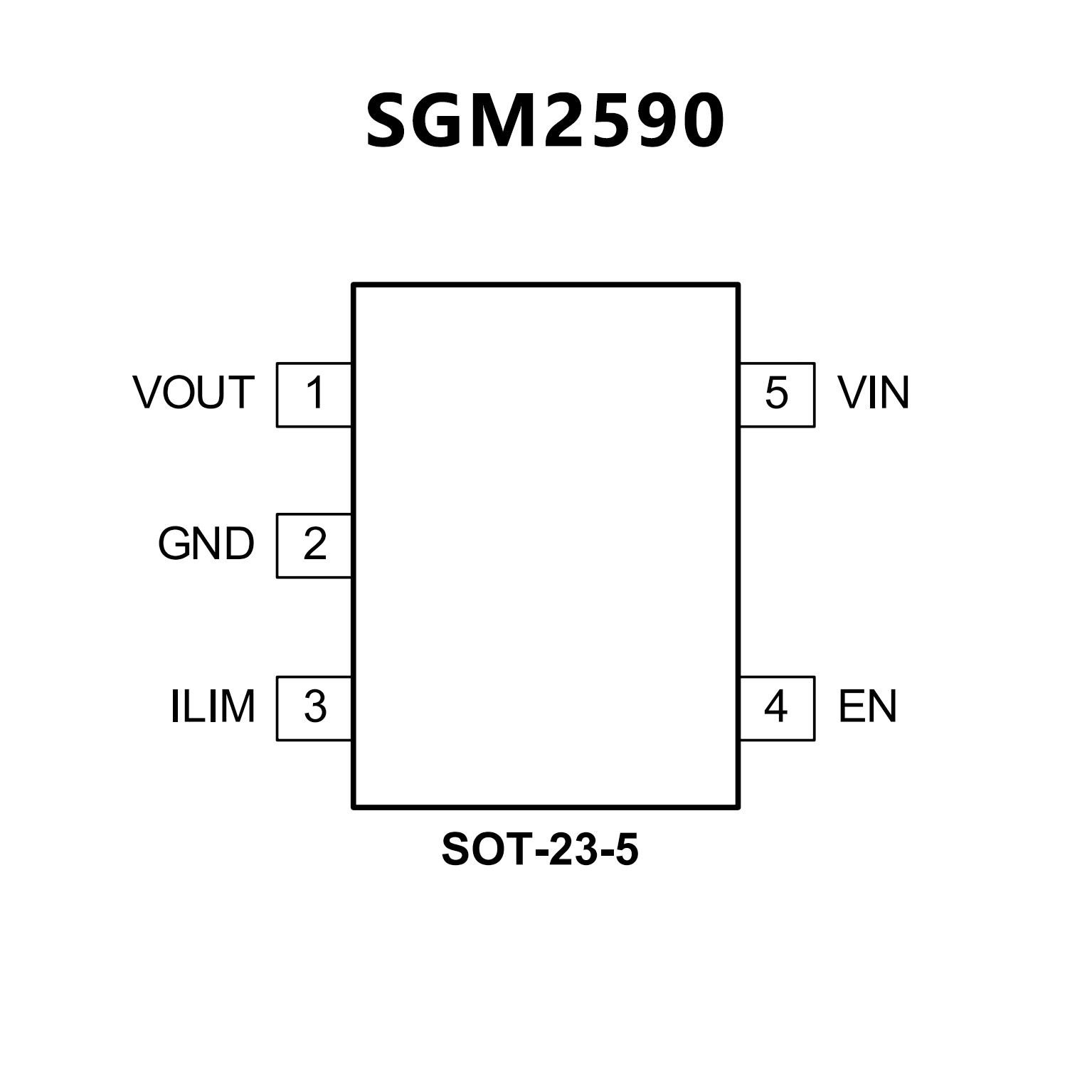

PIN CONFIGUTION
优势替代
FEATURES
• Input Voltage: 2.4V to 5.5V
• 2A Load Current Capability
• Programmable Current Limit
• Enable Polarity: Active High
• Over Temperature Protection
• Reverse Blocking (No Body Diode)
• OUT Can be Forced Higher Than IN at Shutdown
• Output Discharge Function
SY6280: Auto Output Discharge Function
SY6280A: No Output Discharge Function
• Compact SOT23-5 Package Minimizes the Board
Space

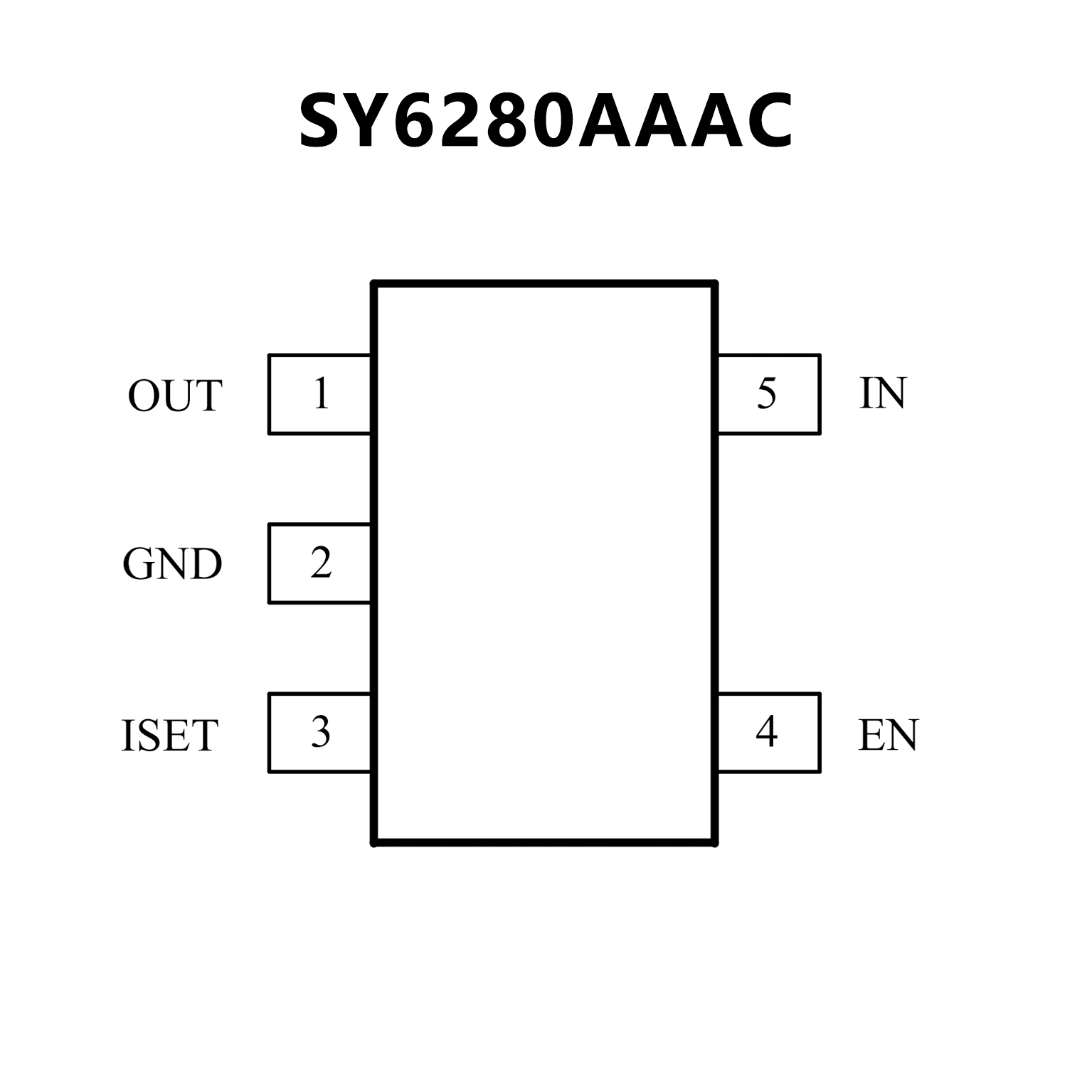

PIN CONFIGUTION
