Low Loss Power Distribution Switch, SGM2590D Replace SY6280AAC.
SGM2590D
SGM2590D.pdf
SGM2590D.pdfFEATURES
• High-side N-MOSFET
• On-Resistance: 60mΩ (TYP)
• Programmable Current Limit Range: 0.1A to 3A
1.5A at RILIM = 4.53kΩ
• Input Voltage Range: 2.5V to 6V
• Quiescent Current: 27μA (TYP)
• Shutdown Current: 0.28μA (TYP)
• Soft-Start Function
• Over-Temperature Protection
• Under-Voltage Lockout Protection for VIN
• No Reversed Leakage Current (Reverse Blocking)
• Quick Output Discharge (SGM2590D Only)
• 1.2MΩ Pull-Down Resistor at EN Pin
• Available in a Green SOT-23-5 Package

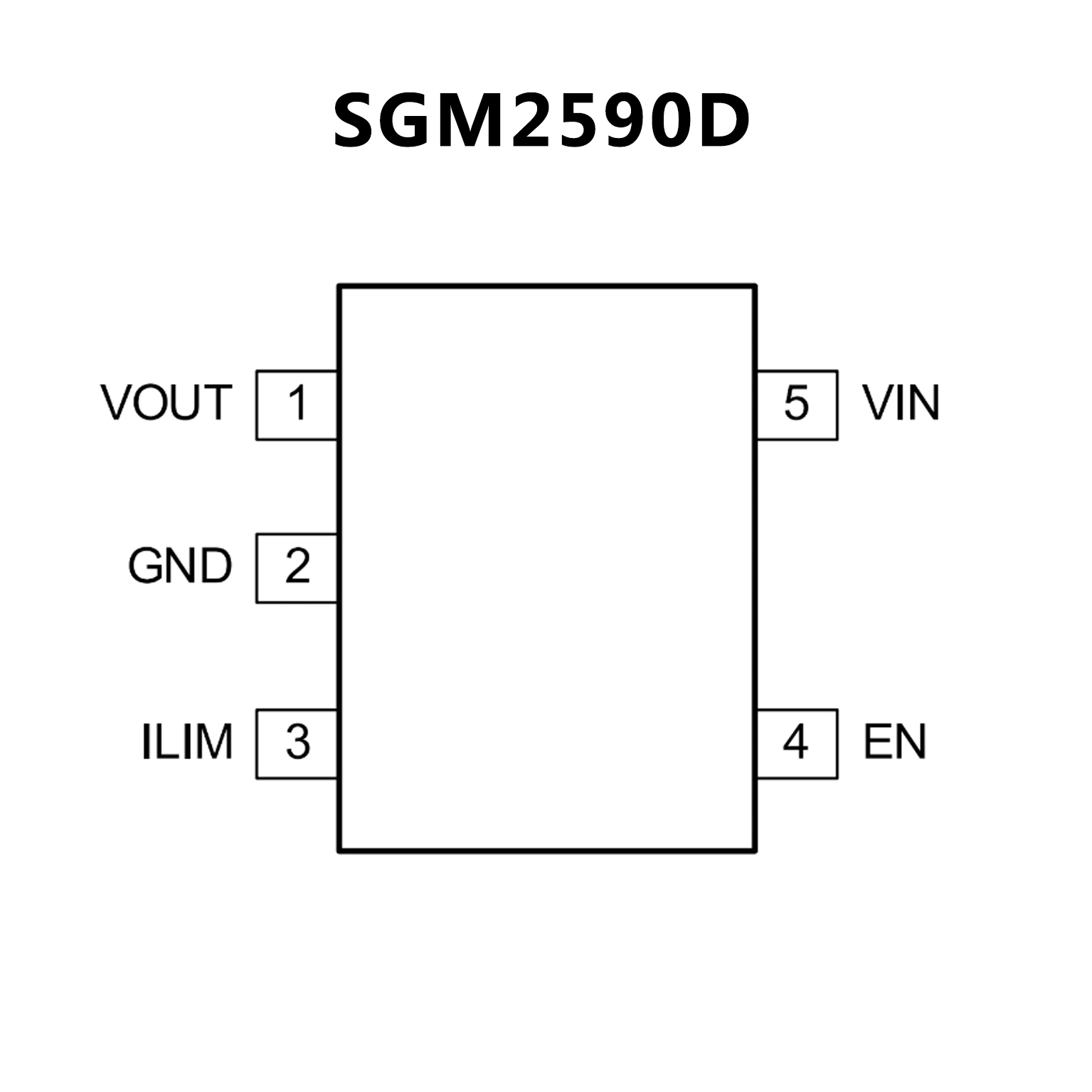

PIN CONFIGUTION
优势替代
FEATURES
• Distribution voltages: 2.4V to 5.5V
• Programmable current limit
• Enable polarity: active high
• Over temperature shutdown and automatic retry
• Reverse blocking (no body diode)
• At shutdown, OUT can be forced higher than IN
• Automatic output discharge at shutdown
• Compact SOT23 packages minimize the board
space.

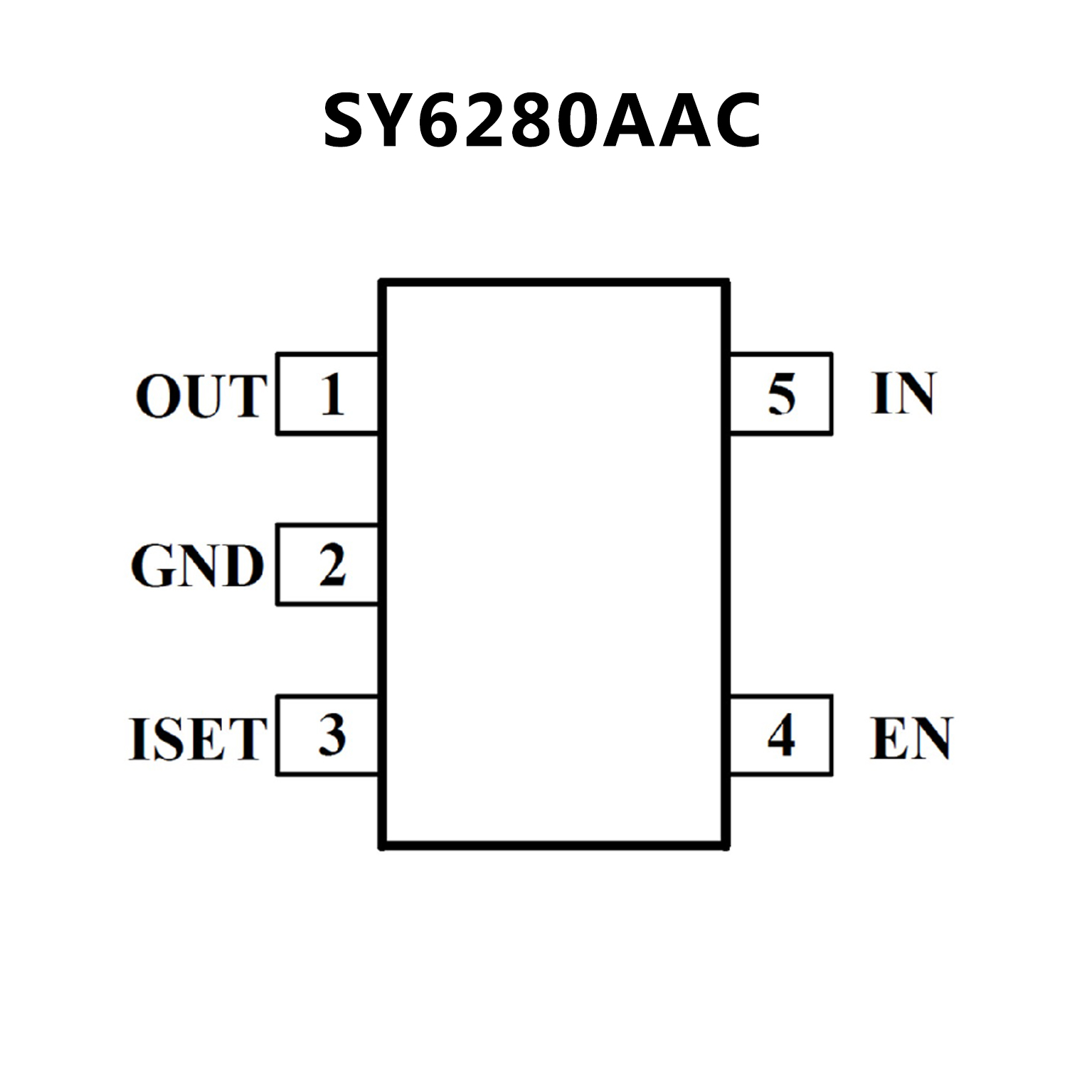

PIN CONFIGUTION
