USB Power-Distribution Switches, SGM2594B Replace APL3553.
SGM2594B.pdf优势替代
FEATURES
• 62mW Power Switch On Resistance
• Wide Supply Voltage Range: 2.7V to 5.5V
• Fix Current Limit Protection
• Fast Over current Response: 2us (typ.)
• Over-Temperature Protection
• Fault Indication Output
• Enable Input
• Built-in Soft-Start
• Reverse Input-Output Voltage Protection: 25mV
(typ.)
• UL Approved-File No. E328191
• UL IEC/EN60950-1 CB Scheme Certified, No. DK-
59231-A2-UL
• TUV IEC/EN60950-1 Certified, No. 44 780 17
406748-010

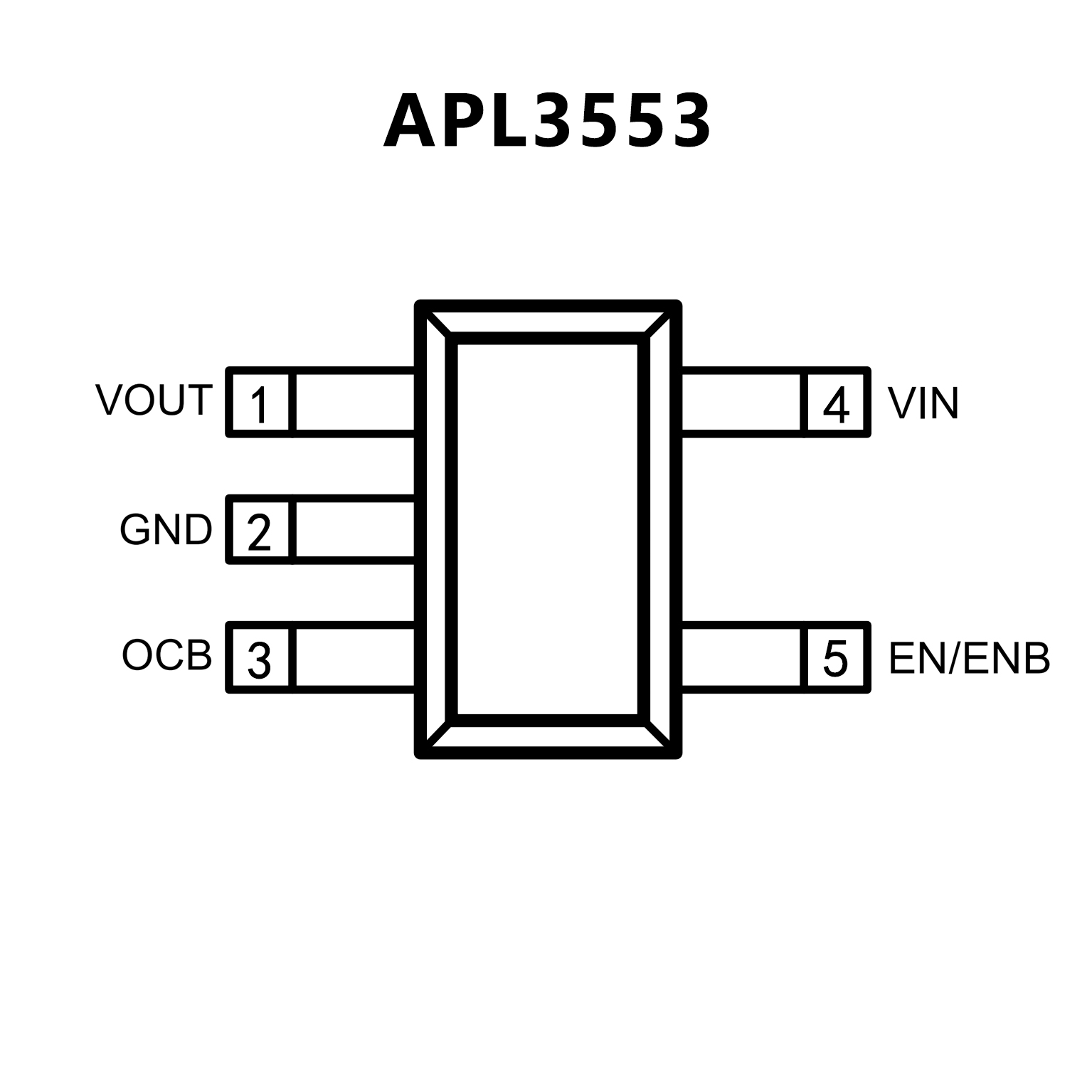

PIN CONFIGUTION
