Power Distribution Switch, SGM2594B Replace G524C3T11U.
SGM2594B.pdf优势替代
FEATURES
• 70mΩ High-Side MOSFET
(G524A,G524B,G524C,G524D)
• Available with 4 Versions of Current Limits with
Foldback
• Operating Range:2.7V to 5.5V
• 1mS Typical Rise Time
• Fast Overcurrent Response -1.5µs (TYPICAL)
• Under voltage Lockout
• 130µA Quiescent Supply Current
• 1µA Maximum Shutdown Supply Current
• Logic Level Enable Pin, Available with
Active-High or Active-Low Version
• No Reverse Current when Power Off
• Deglitched Open-Drain Over-Current Flag Output ( OC )
• Available with or without Output Shutdown Pull-low Resister
• Output Reverse-Voltage Protection
• SOT-23-5, TSOT-23-6, MSOP-8 and MSOP-8 (FD) Packages
• UL Certification_#E232223
• CB Test Certification by IEC 60950-1:2005 (2nd Edition);
Am 1:2009

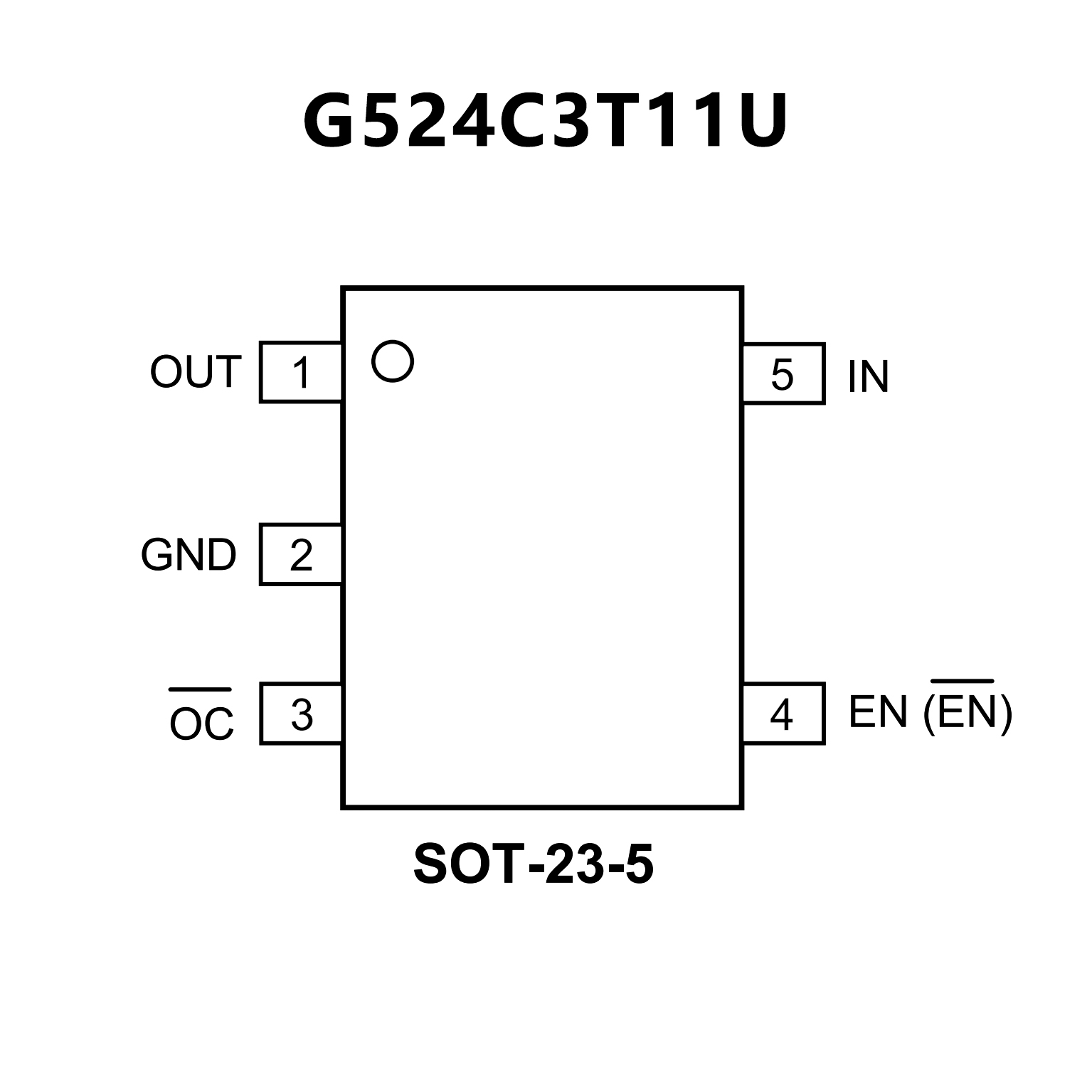

PIN CONFIGUTION
