3A Low Loss Power Distribution Switch, SGM2594C Replace SY6288E2.
SGM2594C.pdf优势替代
FEATURES
• Input Voltage: 2.5V to 5.5V
• Extremely Low Power Path Resistance: 45mΩ (typ.)
• 3A Load Current Capability
• Two Enable Polarities:
SY6288E1AAC: Active High
SY6288E2AAC: Active Low
• Over Temperature Shutdown and Automatic Retry
• Reverse Blocking (No Body Diode)
• Fault Flag (OCB) Output for Over Current and Fault
Conditions
• At Shutdown, OUT Can be Forced Higher than IN
• Built-in Soft-start
• Compact Package Minimizes the Board Space:SOT23-5
• RoHS Compliant and Halogen Free
• UL Certification NO. E491480
• CB Certification by IEC 62368-1

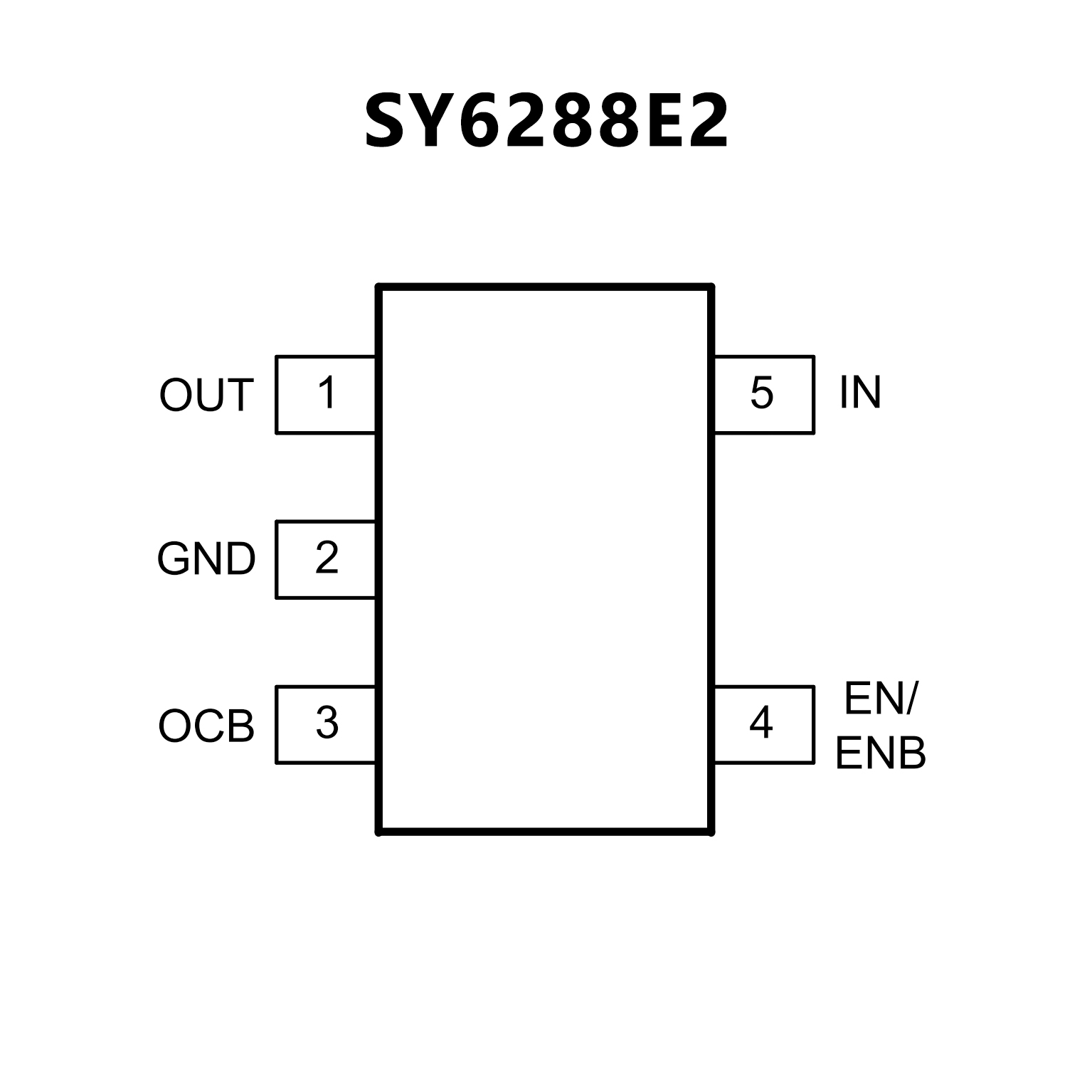

PIN CONFIGUTION
