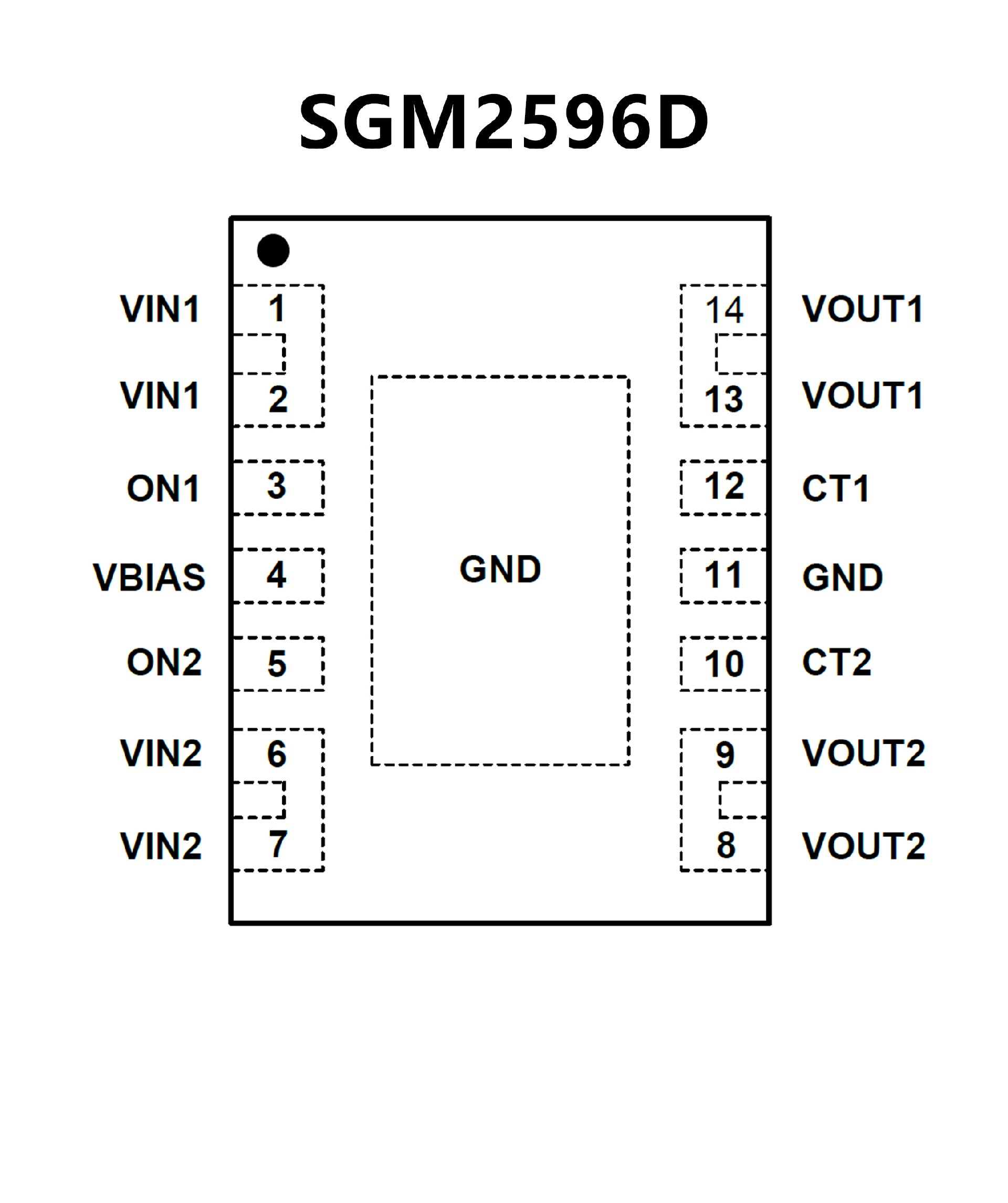

SGM2596D.pdf• Input Voltage Range: 0.6V to VBIAS
• VBIAS Voltage Range: 2.5V to 5.7V
• Dual-Channel Load Switch
• On-Resistance:
RON = 16mΩ (TYP) at VINx = 3.3V, VBIAS = 5V
RON = 16.1mΩ (TYP) at VINx = 1.2V, VBIAS = 2.5V
• Continuous Current: 6A (MAX)/Channel
• Quiescent Current:
Both Channels: 22.3μA (TYP) at VINx = VBIAS = 5V
Single Channel: 22μA (TYP) at VINx = VBIAS = 5V
• Programmable Output Ramp-Up Time
• Thermal Shutdown
• SGM2596D: Quick Output Discharge (QOD)
• -40℃ to +105℃ Operating Temperature Range
• Available in a Green TDFN-3×2-14AL Package

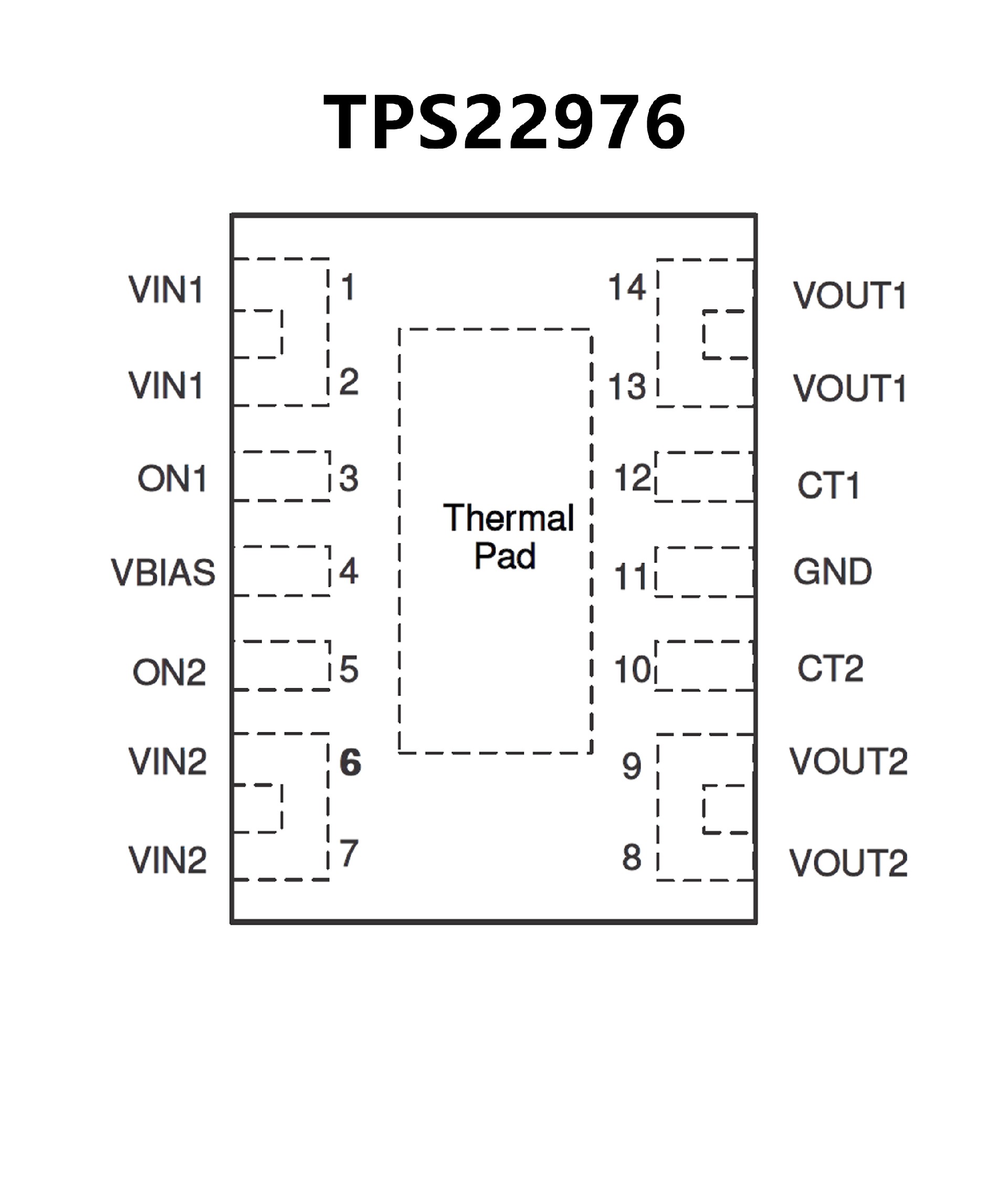

• Integrated dual-channel load switch
• Input voltage range: 0.6 V to VBIAS
• VBIAS voltage range: 2.5 V to 5.7 V
• On-resistance
RON = 14 mΩ (typical)
at VIN = 0.6 V to 5 V, VBIAS = 5 V
RON = 18 mΩ (typical)
at VIN = 0.6 V to 2.5 V, VBIAS = 2.5 V
• 6-A maximum continuous switch current per
channel
• Quiescent current for TPS22976, TPS22976N
37 μA (typical, both channels)
at VIN = VBIAS = 5 V
35 μA (typical, single channel)
at VIN = VBIAS = 5 V
• Quiescent current for TPS22976A
85 μA (typical, both channels)
at VIN = VBIAS = 5 V
83 μA (typical, single channel)
at VIN = VBIAS = 5 V
• Control input threshold enables use of
1.2-, 1.8-, 2.5-, and 3.3-V logic
• Configurable rise time
• Fast turn ON time (TPS22976A)
tON = 17μs at VIN = 1.05V
• Thermal shutdown
• Quick Output Discharge (QOD) (optional)
• SON 14-pin package with thermal pad
• ESD performance tested per JESD 22
2-kV HBM and 1-kV CDM
