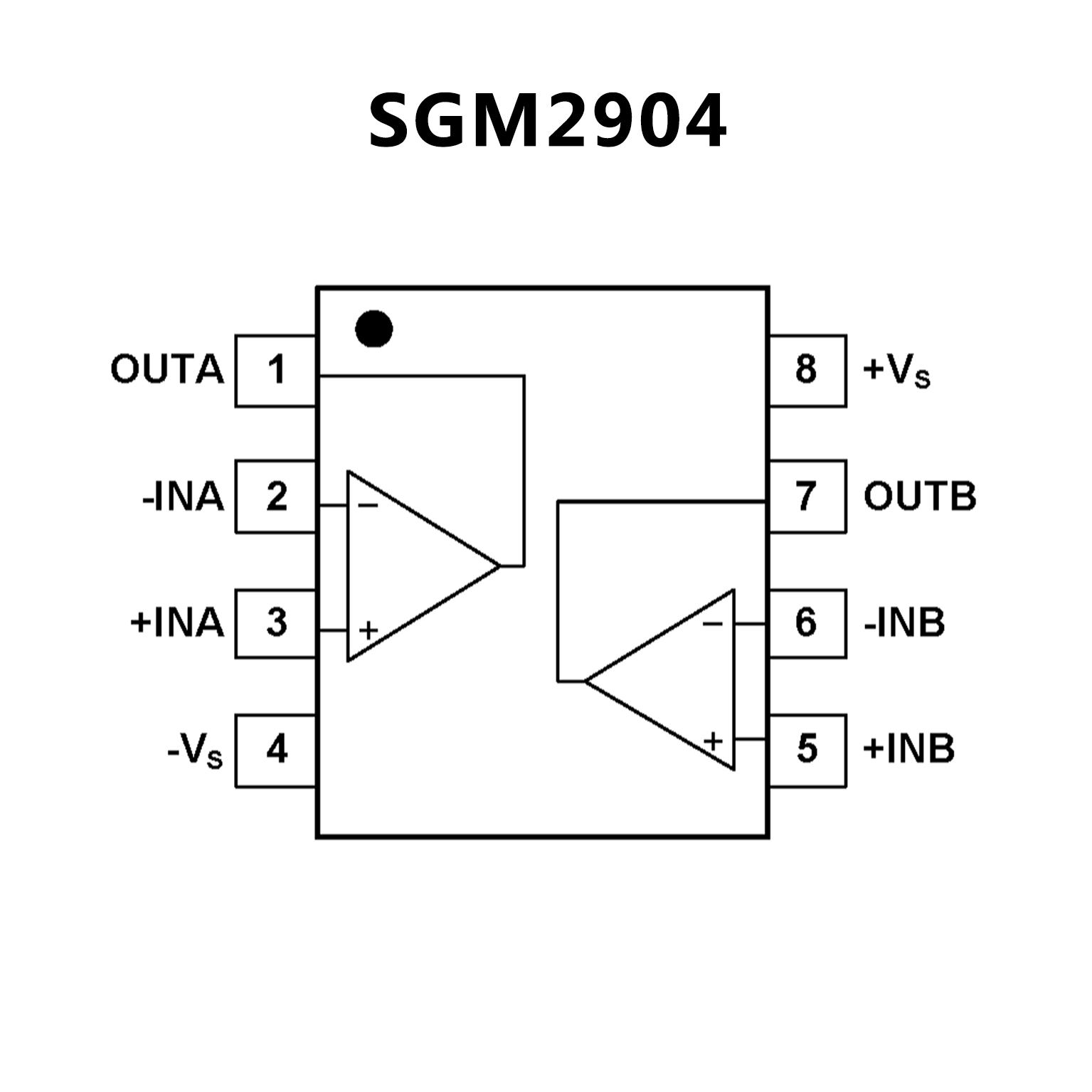

SGM2904.pdf• Wide Input Common Mode and Differential Voltage Ranges
• Low Input Bias and Offset Current
• Output Short-Circuit Protection
• High Input Impedance
• Low Offset Voltage: 4mV (MAX)
• Low Noise: 40nV/Hz at 1kHz
• Gain-Bandwidth Product: 2MHz
• Slew Rate: 0.6V/μs
• -40℃ to +125℃ Operating Temperature Range
• Available in Green SOIC-8 and MSOP-8 Packages
• Wide Power Supply Voltage Range:
• Single Supply: 3V to 36V
• Very Low Supply Current Drain

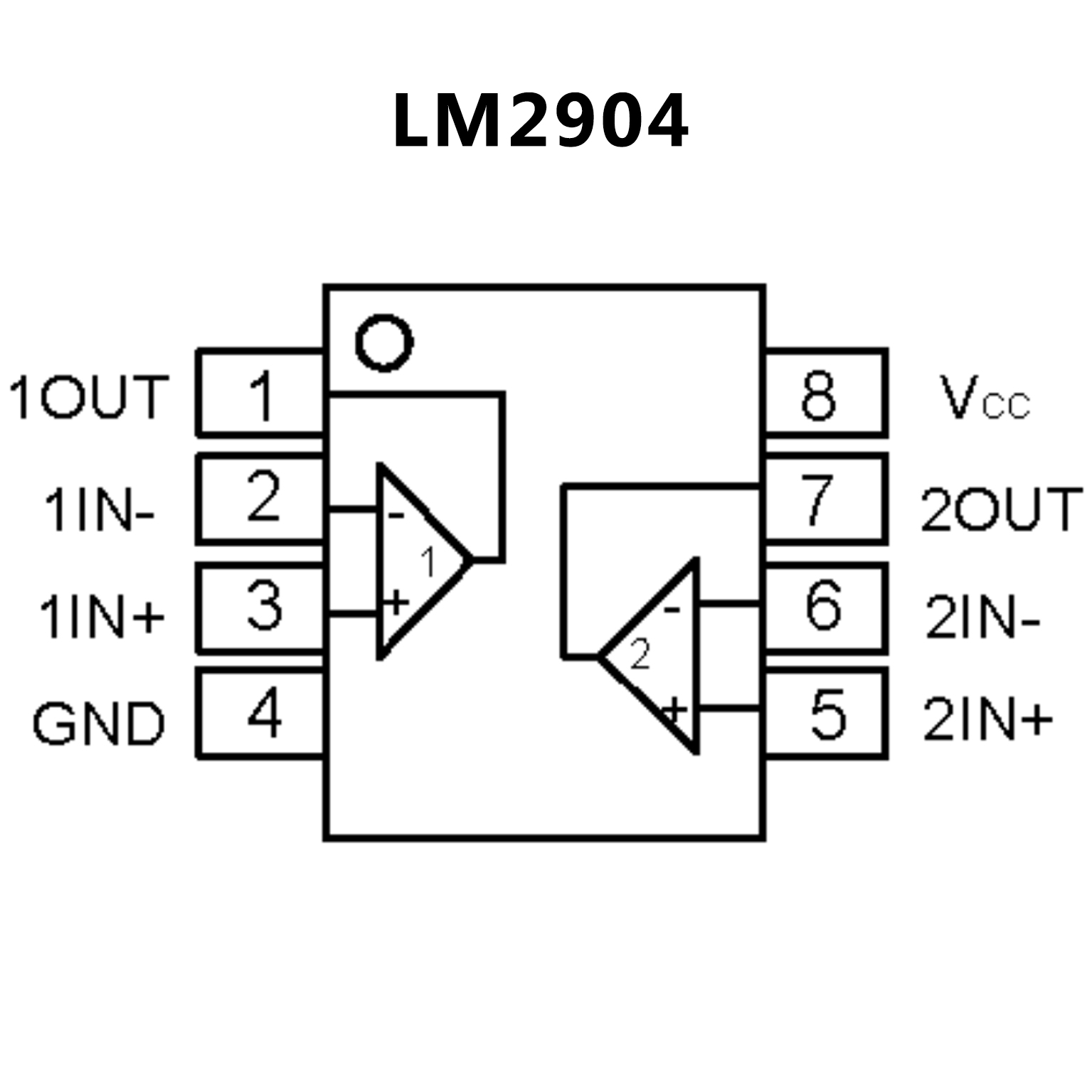

• LM2904 500μA – Independent of Supply Voltage
• Low Input Bias Current: 20nA
• Low Input Offset Voltage:
• A Version: 1mV Typ
• Non-A Version: 2mV Typ
• Large DC Voltage Gain: 100dB
• Wide Bandwidth (Unity Gain): 700kHz
• Internally Compensated with Unity Gain
• Input Common-Mode Voltage Range Includes Ground
• Differential Input Voltage Range Equal to the Power
Supply Voltage
