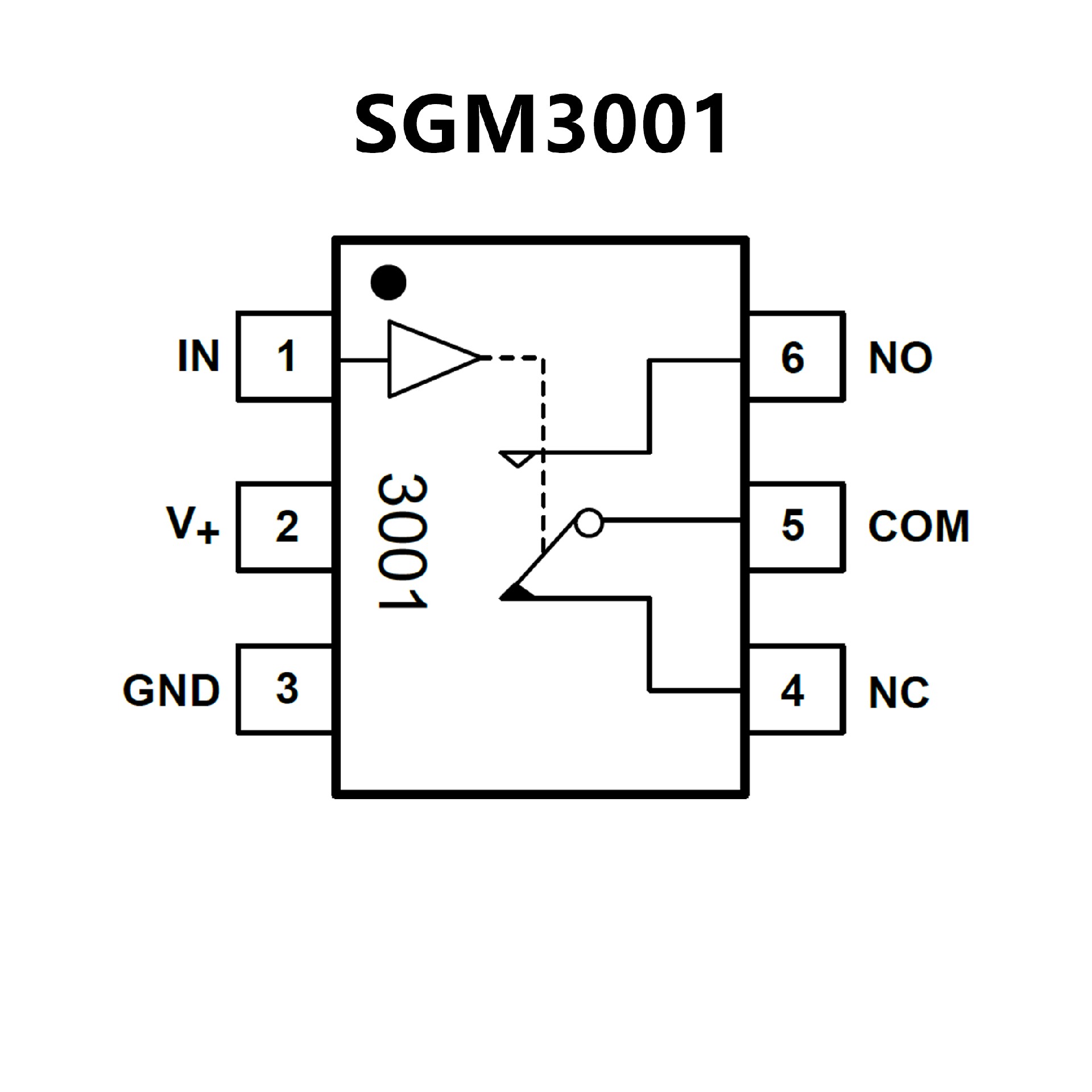

SGM3001XC6.pdf• Low Voltage Operation Range: 1.8V to 5.5V
• Low On-Resistance: 2.5Ω (TYP)
• Low On-Resistance Flatness
• -3dB Bandwidth: 120MHz
• Fast Switching Times
tON 11ns
tOFF 30ns (SGM3001)
tOFF 8ns (SGM3002)
• Rail-to-Rail Operation
• Typical Power Consumption (< 0.01μW)
• TTL/CMOS Compatible
• Microsize Packages
SGM3001 Available in a Green SC70-6 Package
SGM3002 Available in a Green MSOP-10 Package

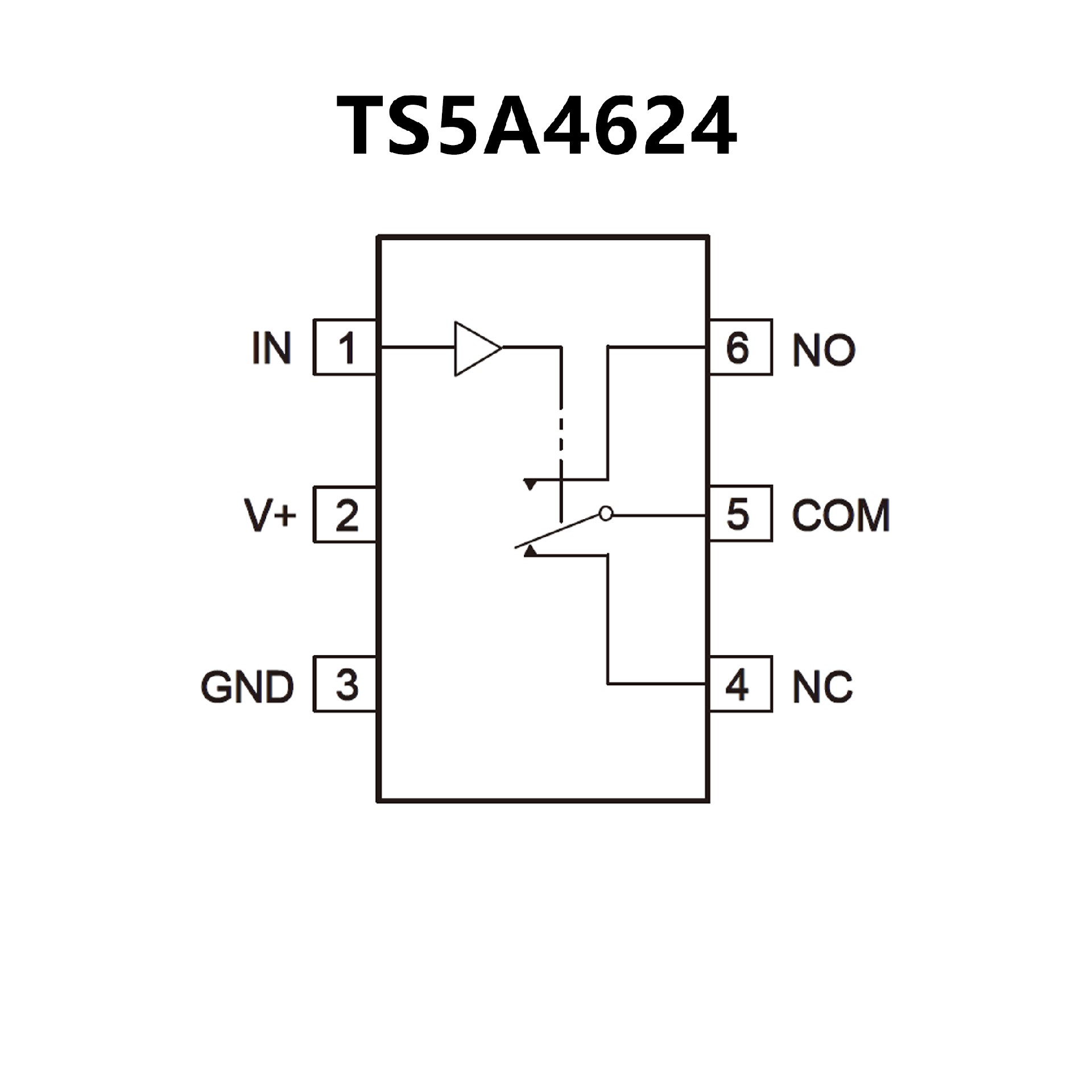

• Isolation in Power-Down Mode, V+ = 0
• Specified Break-Before-Make Switching
• Low ON-State Resistance (1 Ω)
• Control Inputs Are 5.5-V Tolerant
• Low Charge Injection
• Excellent ON-State Resistance Matching
• Low Total Harmonic Distortion (THD)
• 1.65-V to 5.5-V Single-Supply Operation
• Latch-Up Performance Exceeds
100 mA Per JESD 78, Class II
• ESD Performance Tested Per JESD
2000-V Human-Body Model
(A114-B, Class II)
1000-V Charged-Device Model (C101)
