Low On-Resistance, Low Voltage, SPDT Analog Switch,SGM3002XMSTR-Replace-ADG736BRMZREEL7.
SGM3002XMSTR
SGM3002XMSTR.pdf
SGM3002XMSTR.pdfFEATURES
• Low Voltage Operation Range: 1.8V to 5.5V
• Low On-Resistance: 2.5Ω (TYP)
• Low On-Resistance Flatness
• -3dB Bandwidth: 120MHz
• Fast Switching TimestON 11nstOFF 30ns
(SGM3001)tOFF 8ns (SGM3002)
• Rail-to-Rail Operation
• Typical Power Consumption (< 0.01μW)
• TTL/CMOS Compatible
• Microsize PackagesSGM3001 Available in a Green
SC70-6 PackageSGM3002 Available in a Green MSOP-10 Package

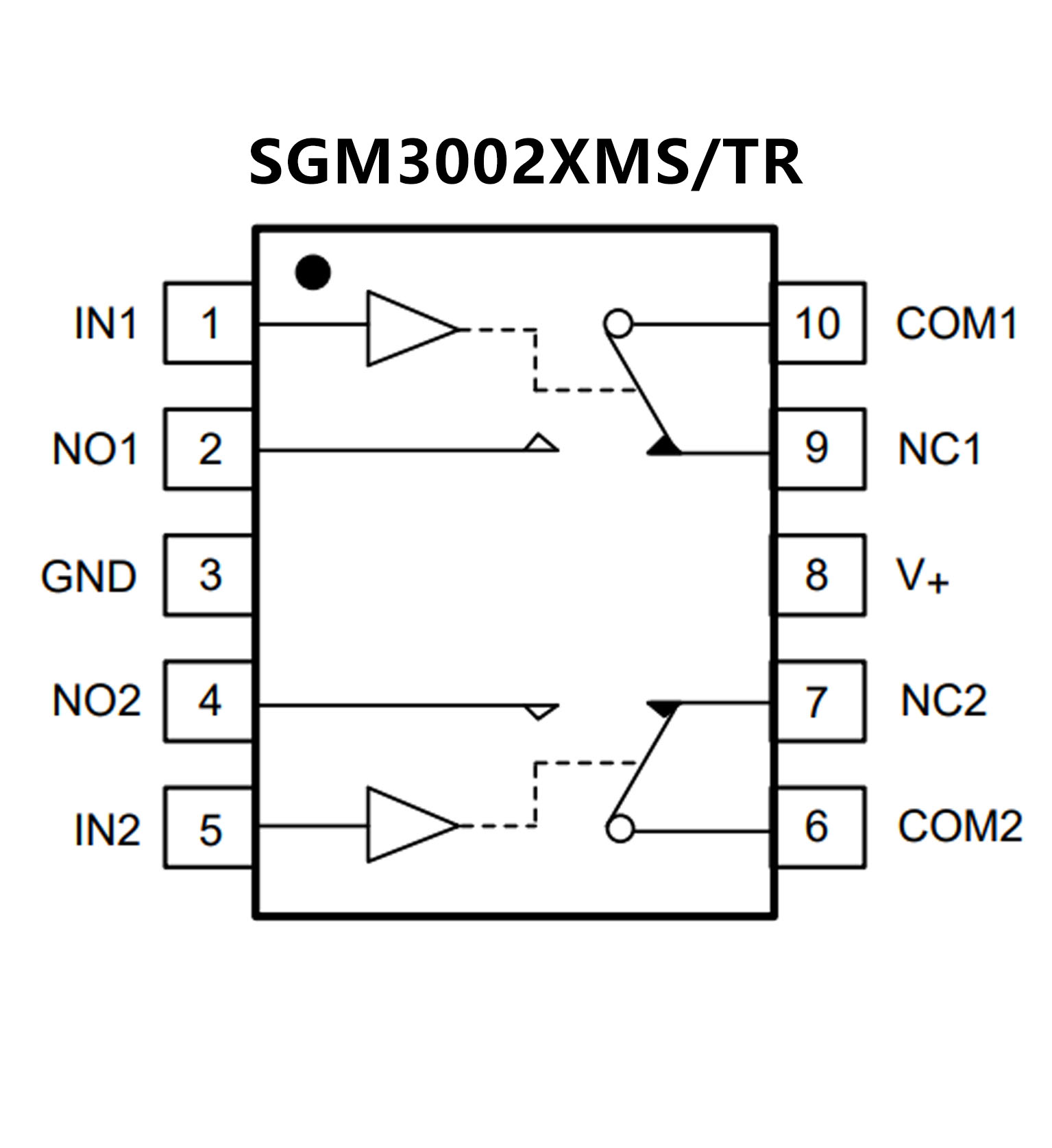

PIN CONFIGUTION
优势替代
FEATURES
• 1.8 V to 5.5 V single supply
• Automotive temperature range: −40°C to +125°C
• 2.5 Ω (typical) on resistance Low on resistance
• flatness −3 dB bandwidth > 200 MHz
• Rail-to-rail operation
• 10-lead MSOP package
• Fast switching times
tON: 16 ns
tOFF: 8 ns
• Typical power consumption (<0.01 μW)
• TTL-/CMOS-compatible
• Qualified for automotive applications

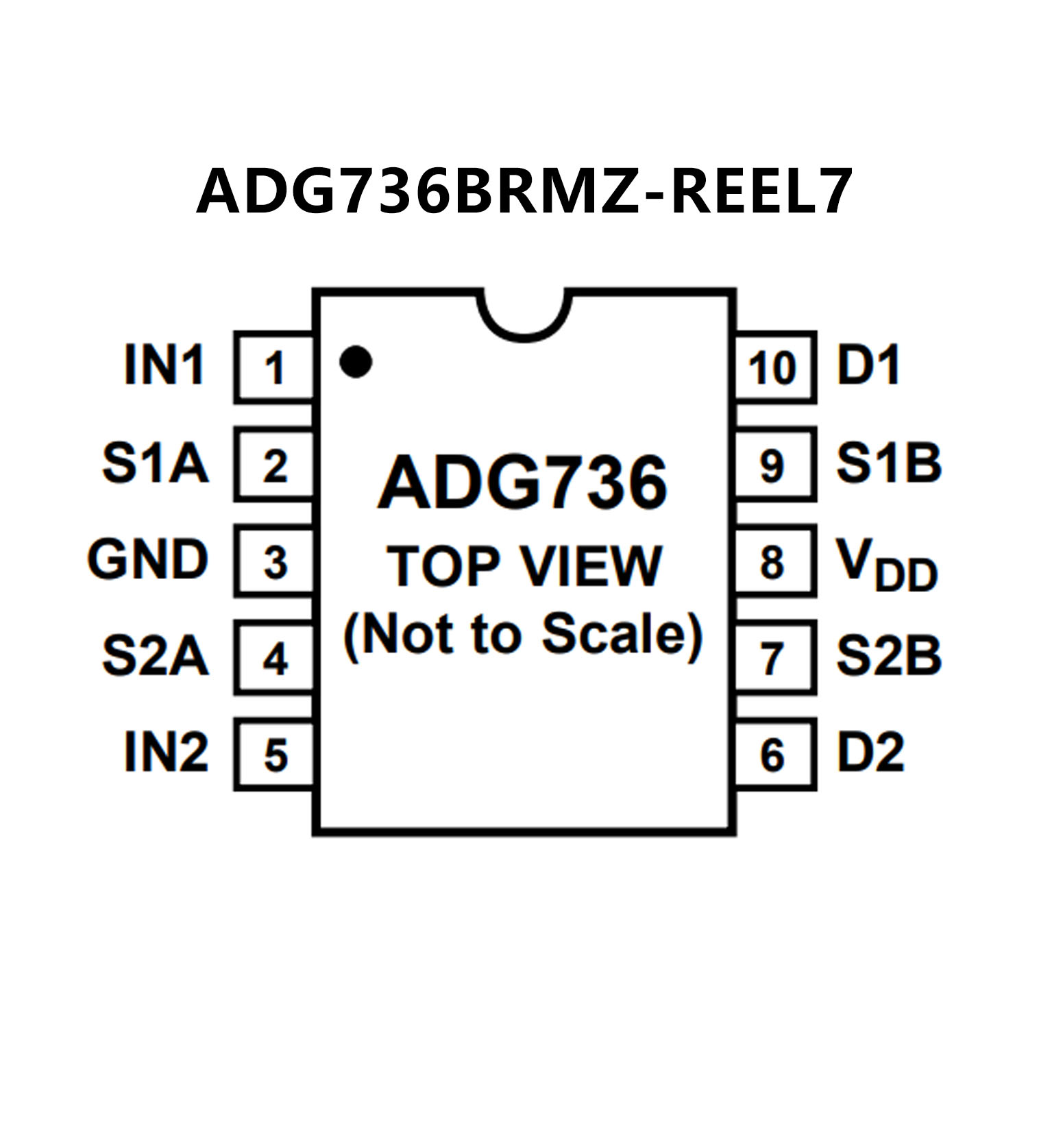

PIN CONFIGUTION
