Ultra Low On-Resistance,Low Voltage, Dual, SPDT Analog Switch,SGM3005 Replace TS3A24159.
SGM3005
SGM3005.pdf
SGM3005.pdfFEATURES
• Low Voltage Operation Range: 1.8V to 5.5V
• Low On-Resistance: 0.5Ω (TYP)
• Low On-Resistance Flatness
• -3dB Bandwidth: 15MHz
• Fast Switching Times
tON 50ns
tOFF 15ns
• Rail-to-Rail Operation
• Typical Power Consumption (< 0.01μW)
• TTL/CMOS Compatible
• Available in Green TDFN-3×3-10L and MSOP-10
Packages

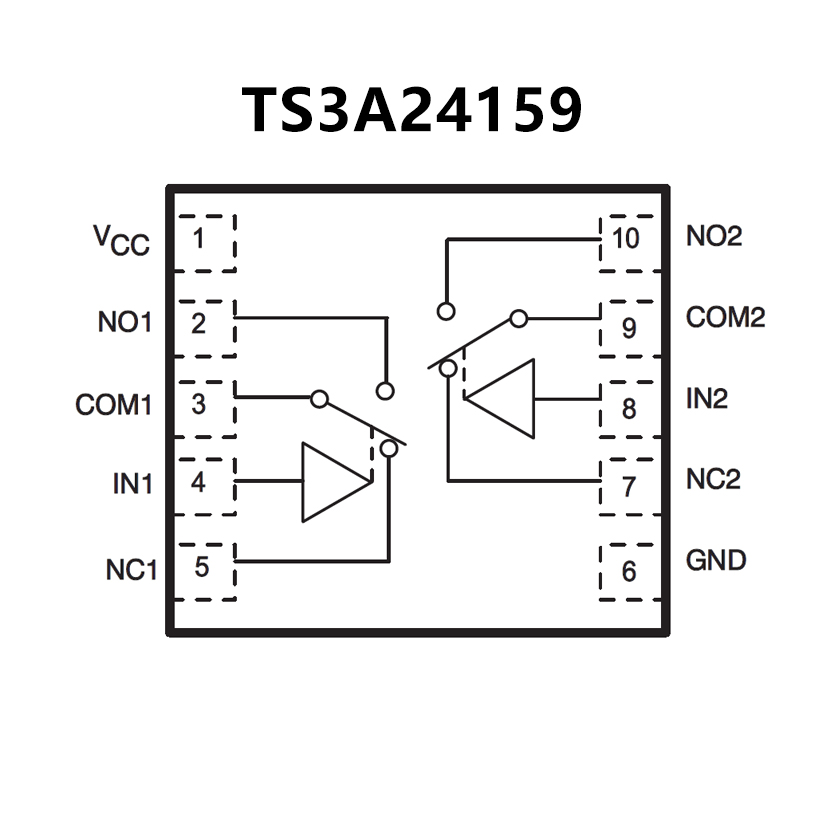

PIN CONFIGUTION
优势替代
FEATURES
• Specified break-before-make switching
• Low ON-state resistance (0.3 Ω maximum)
• Low charge injection
• Excellent ON-state resistance matching
• Low total harmonic distortion (THD)
• 1.65-V to 3.6-V single-supply operation
• Control inputs are 1.8-V logic compatible
• Latch-up performance exceeds 100 mA per JESD
78, Class II
• ESD performance tested per JESD 22
2000-V Human-Body Model
(A114-B, Class II)
– 1000-V Charged-Device Model (C101)

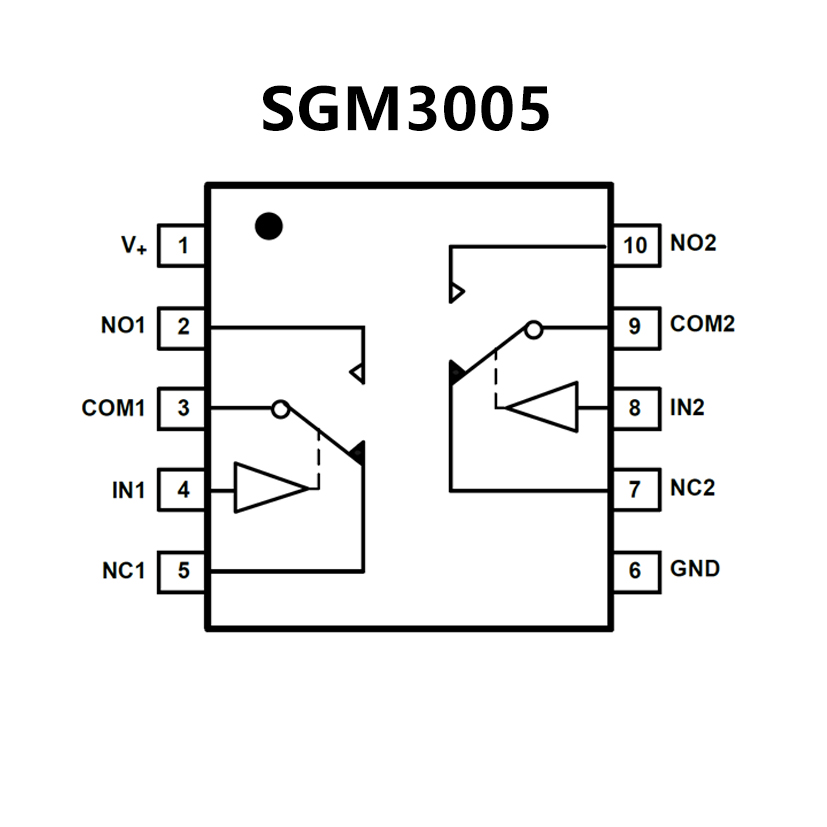

PIN CONFIGUTION
