Low noise, High PSRR, High speed, CMOS LDO,SGM3036 Replace WL2836D.
SGM3036.pdf优势替代
FEATURES
• Input Voltage Range :1.4V~5.5V
• Output Voltage Range : 0.9V~3.3V
• Output current : 300mA
• Quiescent current : 50μA Typ.
• Shut-down current : < 1μA
• Dropout voltage : 140mV @ IOUT=0.3A
• PSRR : 78dB @ 1kHz, VOUT=1.8V
• Low Output Voltage Noise : 13×VOUT μVRMS
• Output Voltage Tolerance :±1% @ VOUT>2V
• Recommend capacitor : 1μF
• Thermal-Overload and Short-Circuit Protection

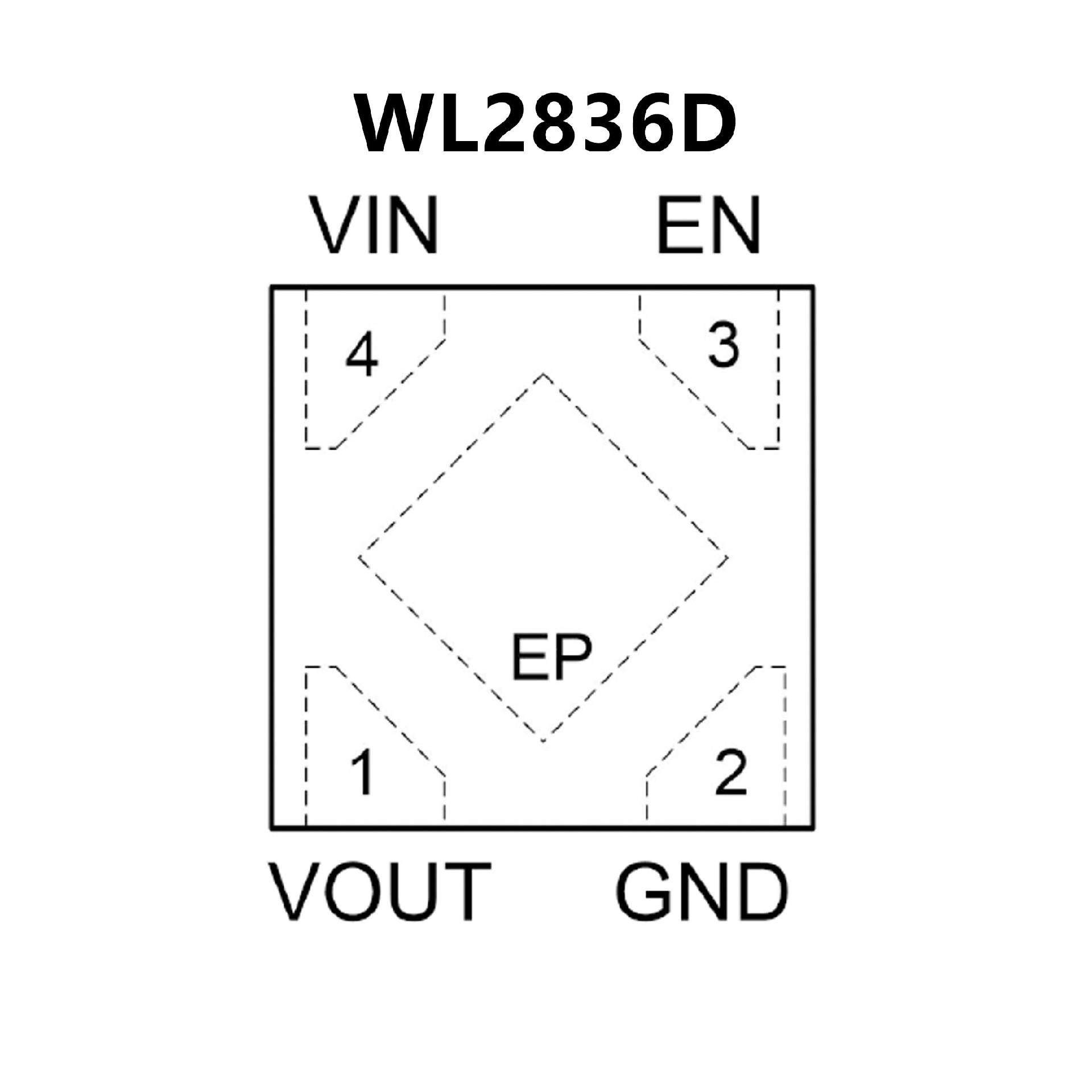

PIN CONFIGUTION
