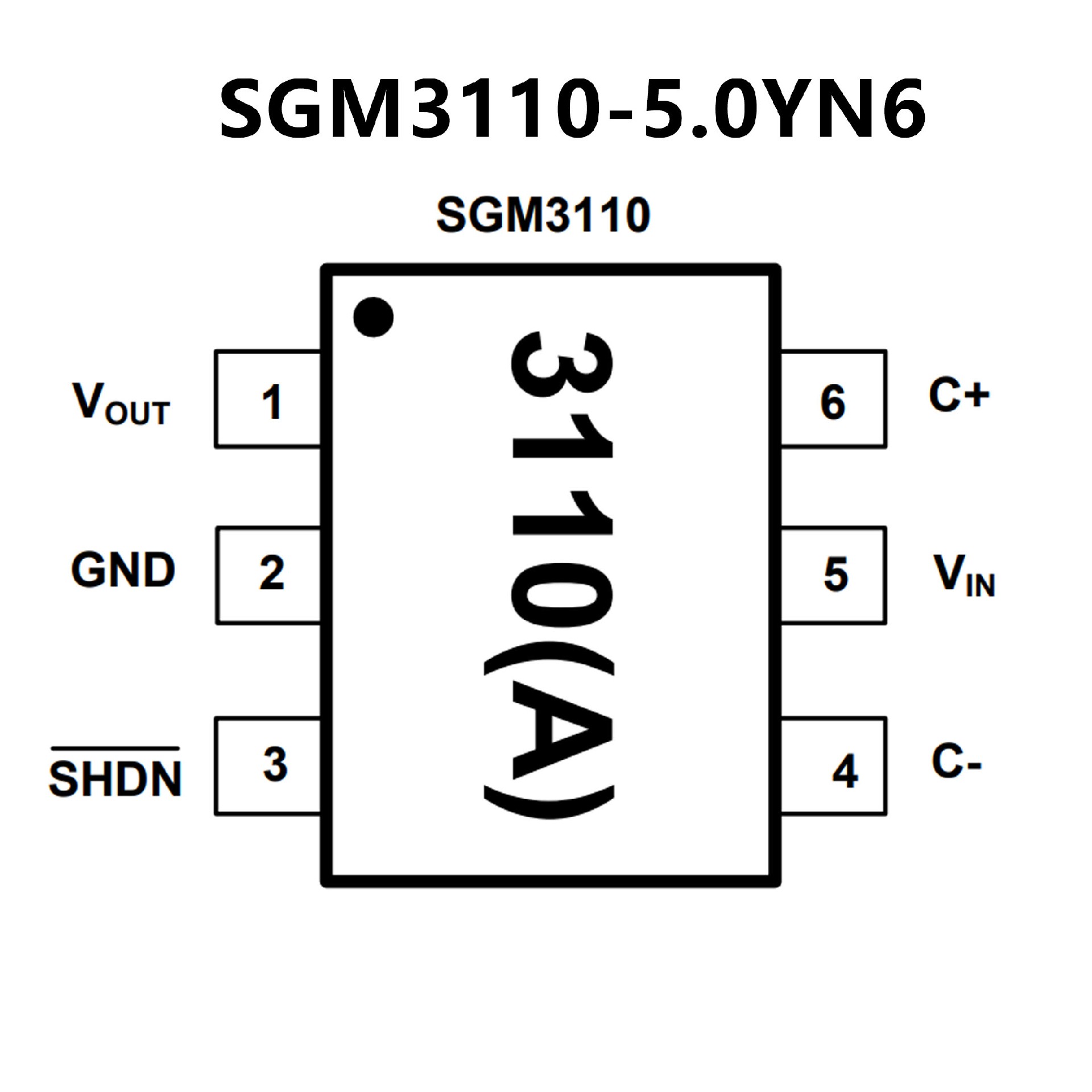

SGM3110-5.0.pdf• Step-Up Voltage Converter
• Input Voltage Range:
SGM3110-5.0: 2.7V
to 5.0V
SGM3110-4.5: 2.7V to 4.5V
• Micro-Power Consumption: 60µA
• Fixed 5V, 4.5V ± 4% Output
• Peak Current 250mA for 100ms
• High Frequency 750kHz Operation
• Logic-Controlled Shutdown
• Short-Circuit/Over-Temperature Protection
• Available in Green SOT-23-6 Package

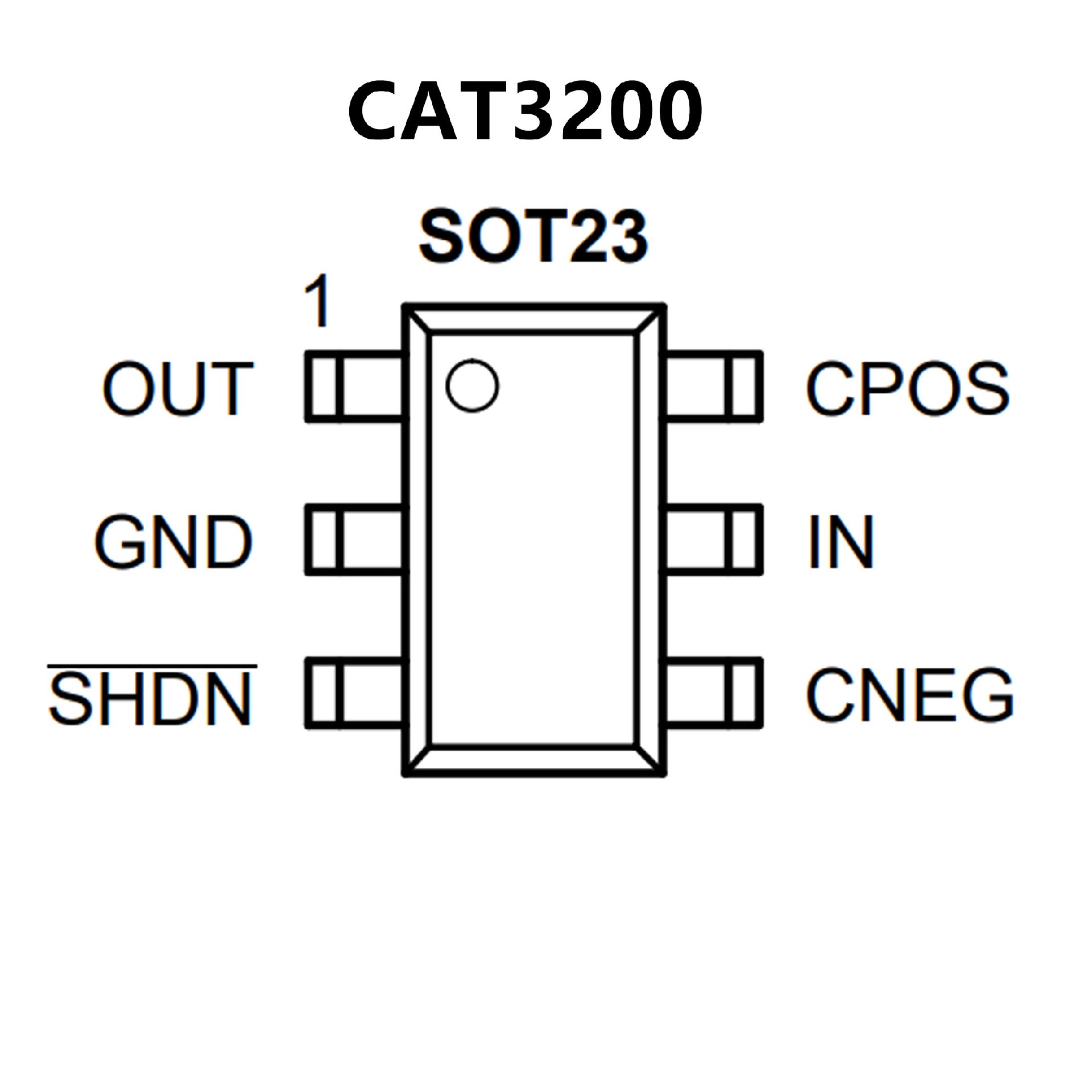

• Constant High Frequency (2 MHz) Operation
• 100 mA Output Current
• Regulated Output Voltage
(5 V Fixed CAT3200−5, Adjustable
CAT3200)
• Low Quiescent Current (1.7 mA Typ.)
• Input Voltage Operation down to 2.7 V
• Soft Start, Slew Rate Control
• Thermal Overload Shutdown Protection
• Low Value External Capacitors (1µF)
• Foldback Current Overload Protection
• Shutdown Current less than 1µA
• CAT3200−5 in Low Profile (1 mm Thin)
6−lead TSOT−23 Package
• CAT3200 in MSOP−8 Package
• These Devices are Pb−Free, Halogen
Free/BFR Free and are RoHS
Compliant
