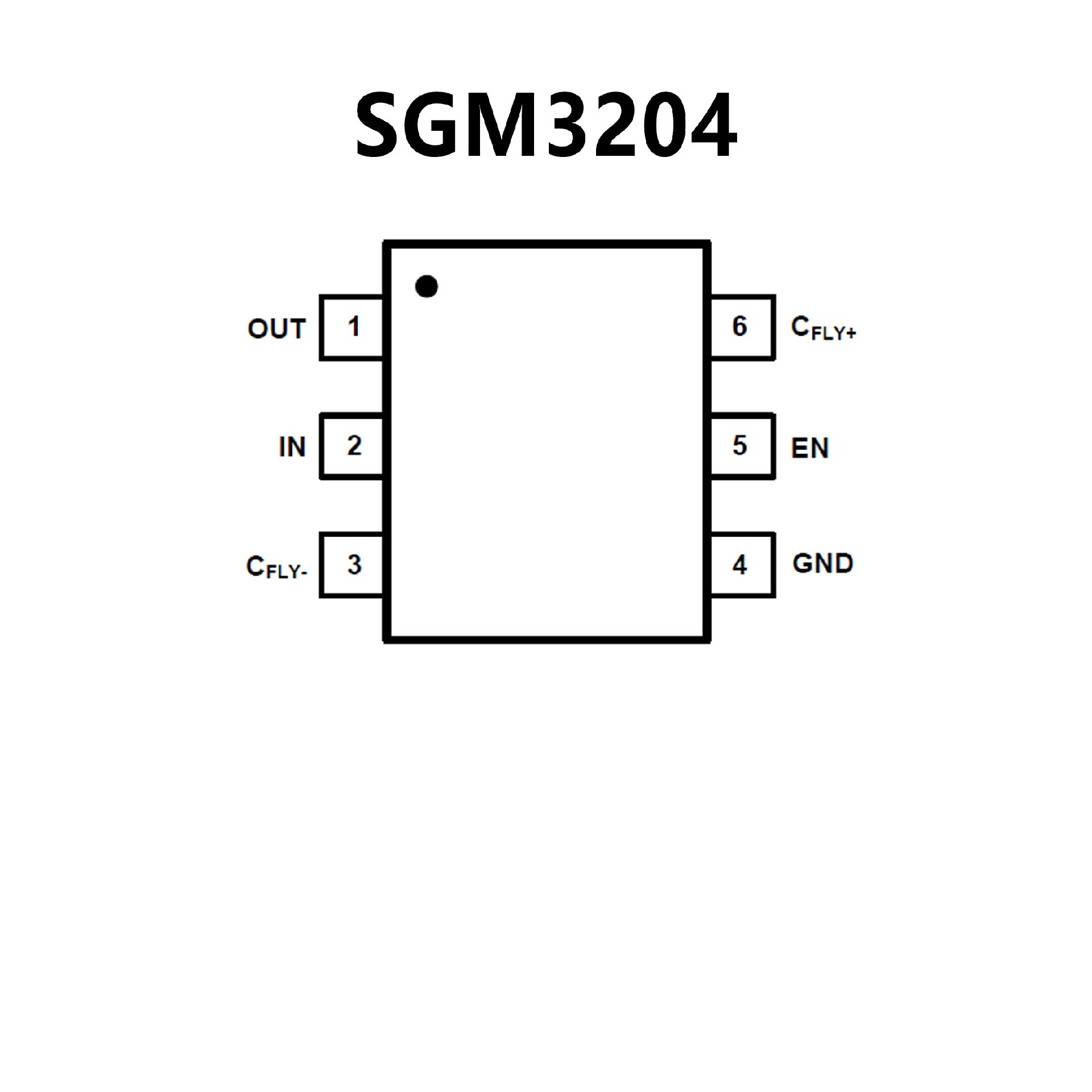

SGM3204.pdf• Inverts Input Supply Voltage
• Up to 200mA Output Current
• Input Voltage Range from 1.4V to 5.5V
• Quiescent Current: 1.5mA (TYP)
• 950kHz Switching Frequency
• Integrated Active Schottky Diode
for Start-Up intoLoad
• -40℃ to +85℃ Operating
Temperature Range
• Available in Green SOT-23-6 Package

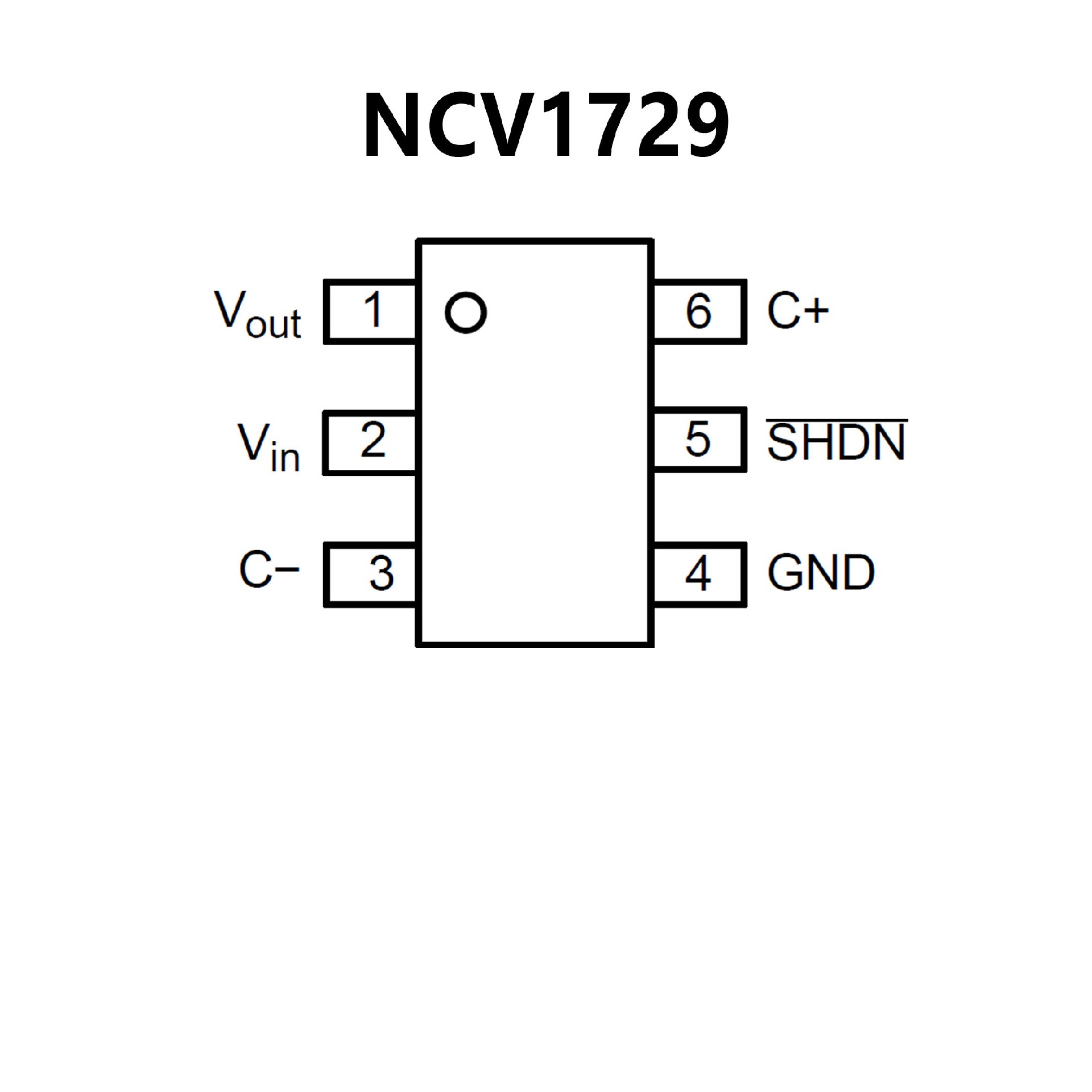

• Operating Voltage Range of 1.5 V to 5.5 V
• Output Current Capability in Excess of 50 mA
• Low Current Consumption of 122 µA
• Power Saving Shutdown Input for a
Reduced Current of 0.4 µA
• Operation at 35 kHz
• Low Output Resistance of 26 Ω
• Space Saving TSOP−6 Package
• NCV Prefix for Automotive and
Other Applications Requiring
Unique Site and Control Change
Requirements; AEC−Q100
Qualified and PPAP Capable
• These Devices are Pb−Free and are RoHS Compliant
