Unregulated 60mACharge Pump Voltage Inverter,SGM3206 Replace NJU7665.
SGM3206
SGM3206.pdf
SGM3206.pdfFEATURES
• Inverts Input Supply Voltage
• Up to 60mA Output Current
• Input Voltage Range from 1.4V to 5.5V
• Quiescent Current: 115μA (TYP)
• Integrated Active Schottky Diode
for Start-Up intoLoad
• -40℃ to +85℃ Operating Temperature Range
• Available in Green SOT-23-5 Package

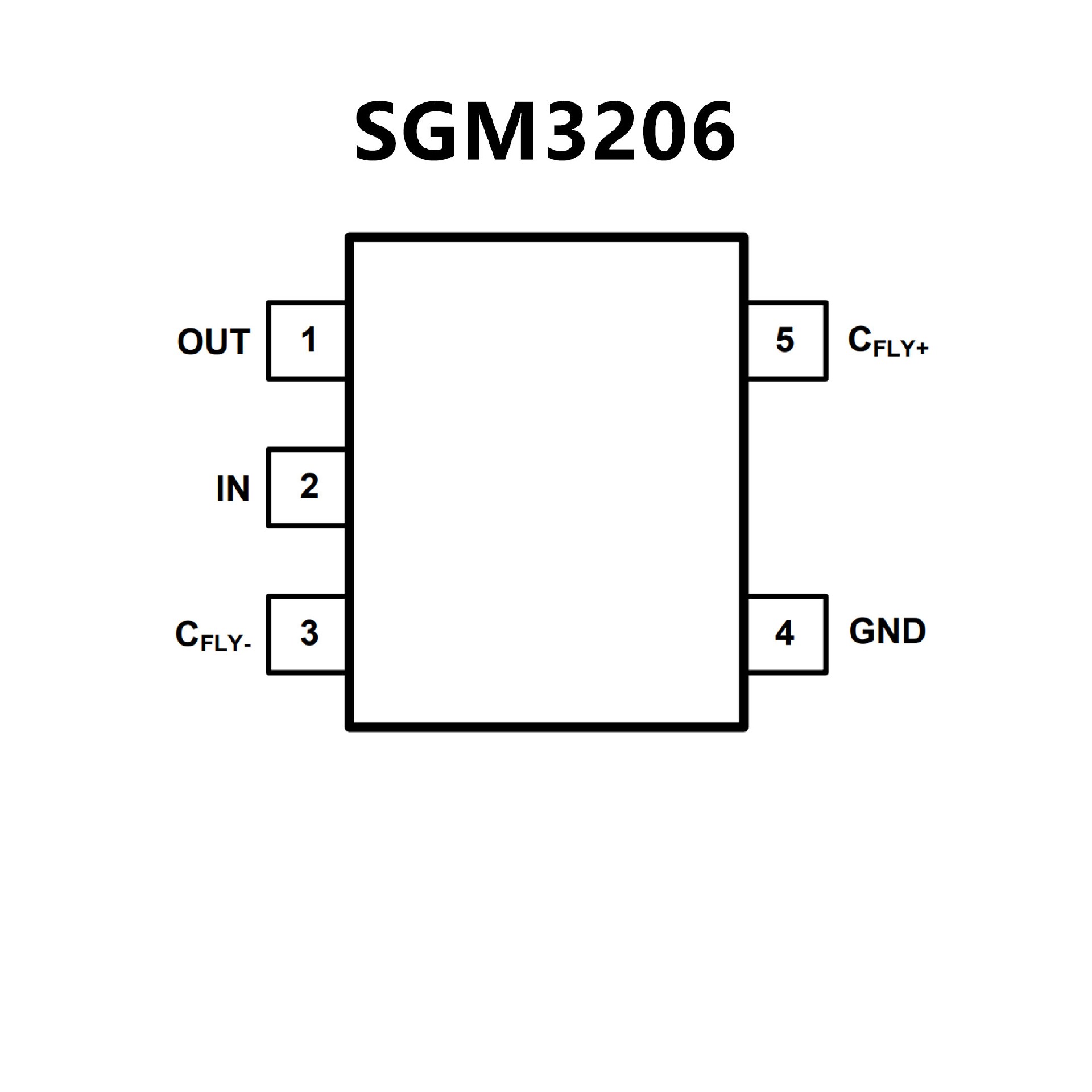

PIN CONFIGUTION
优势替代
FEATURES
• Input Voltage : 1.5 to 5.5V
• Switching Frequency : fsw = 7.5k, 75k, 150kHz
• Low Output Resistance : 75Ω MAX.
(C version, C = 1μF, VIN = 3V)
• Low Operating Current : 100μA MAX. (A version)
• C-MOS Technology
• Package Outline : MTP-5

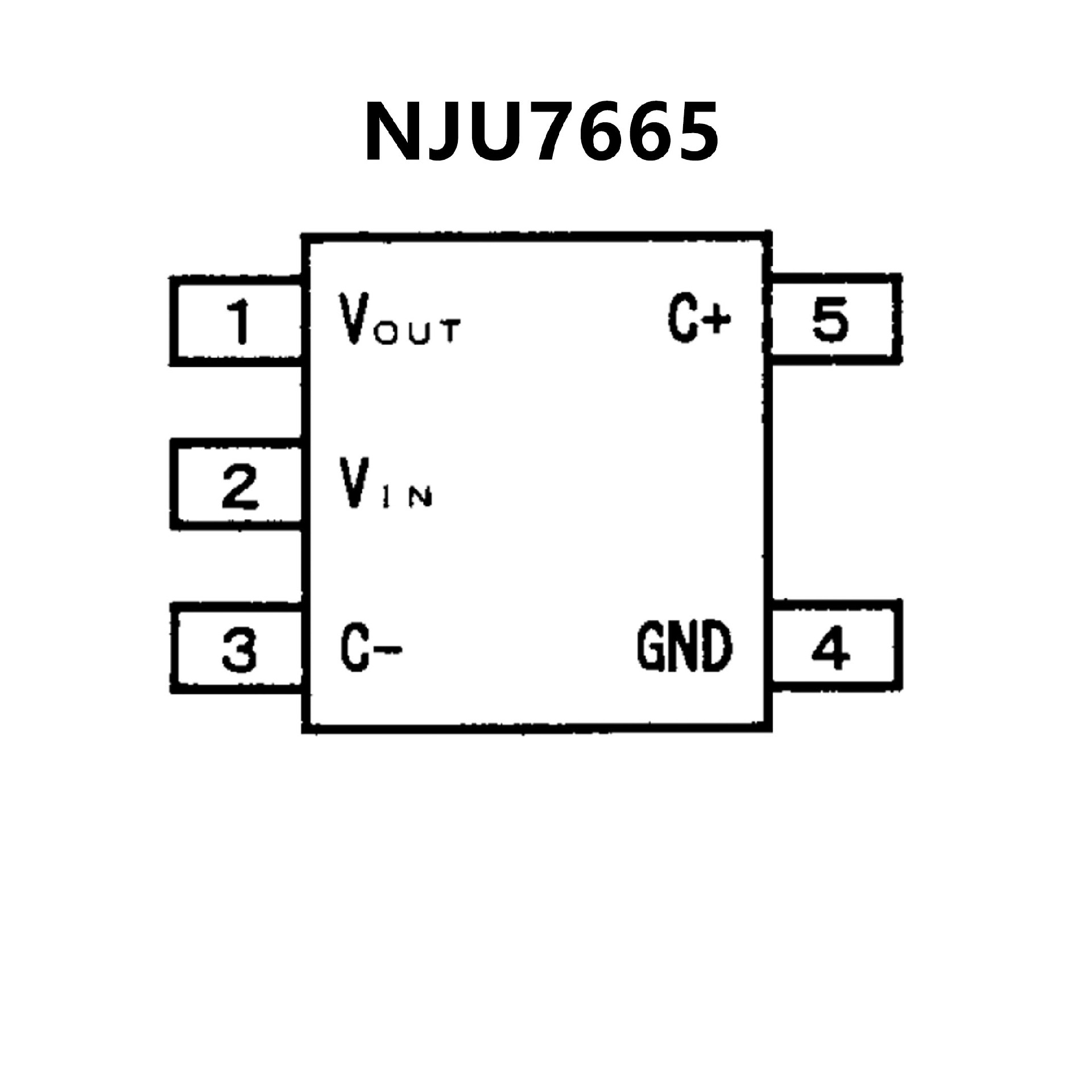

PIN CONFIGUTION
