Unregulated 60mACharge Pump Voltage Inverter, SGM3206 Replace TPS60403.
SGM3206
SGM3206.pdf
SGM3206.pdfFEATURES
• Inverts Input Supply Voltage
• Up to 60mA Output Current
• Input Voltage Range from 1.4V to 5.5V
• Quiescent Current: 115μA (TYP)
• Integrated Active Schottky Diode for Start-Up into
Load
• -40℃ to +85℃ Operating Temperature Range
• Available in Green SOT-23-5 Packagea

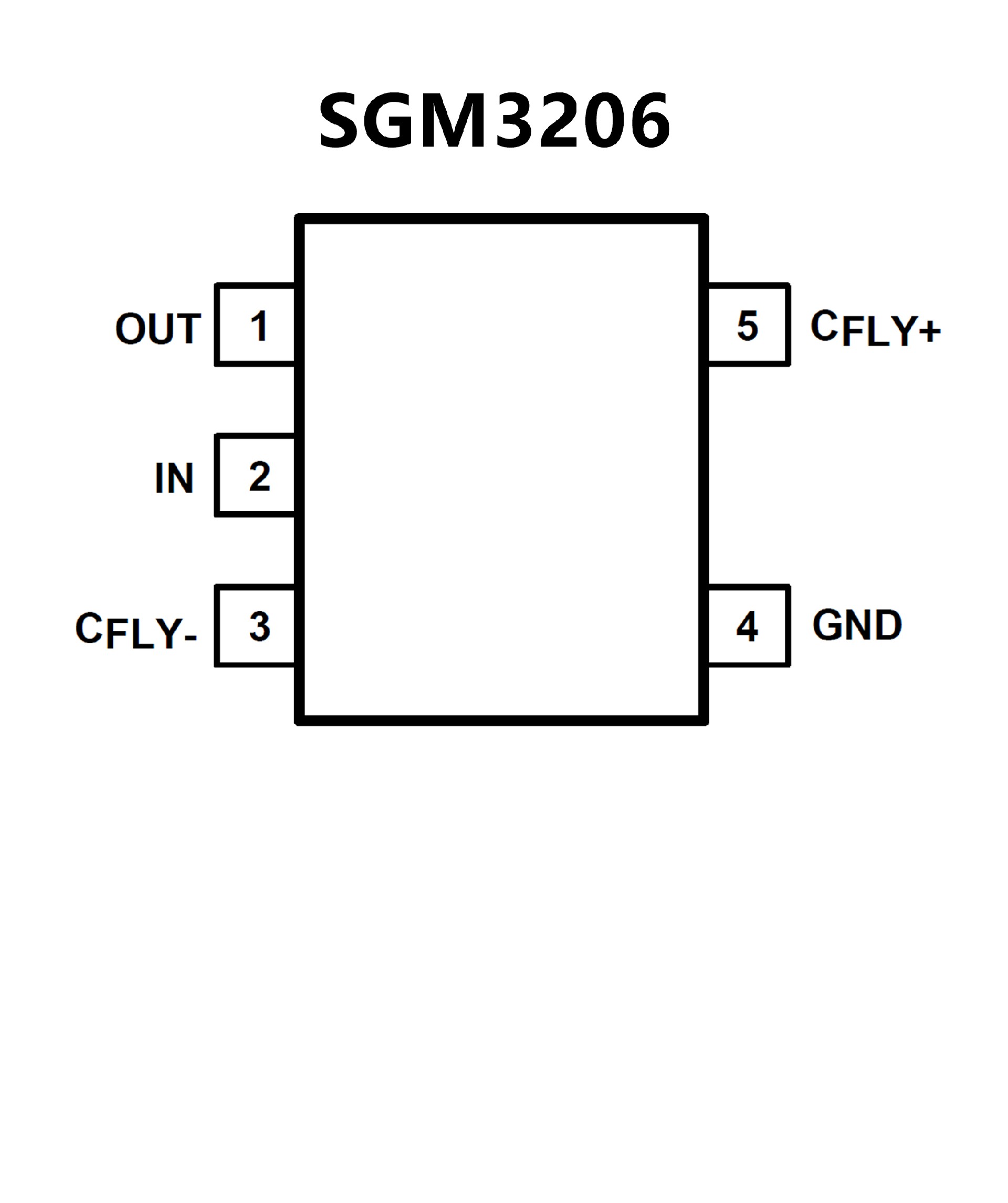

PIN CONFIGUTION
优势替代
FEATURES
• Inverts Input Supply Voltage
• Up to 60-mA Output Current
• Only Three Small 1-μF Ceramic Capacitors
Needed
• Input Voltage Range From 1.6 V to 5.5 V
• PowerSave-Mode for Improved Efficiency at Low-
Output Currents (TPS60400)
• Device Quiescent Current Typical 65 μA
• Integrated Active Schottky-Diode for Start-up Into
Load
• Small 5-Pin SOT-23 Package
• Evaluation Module Available TPS60400EVM-178

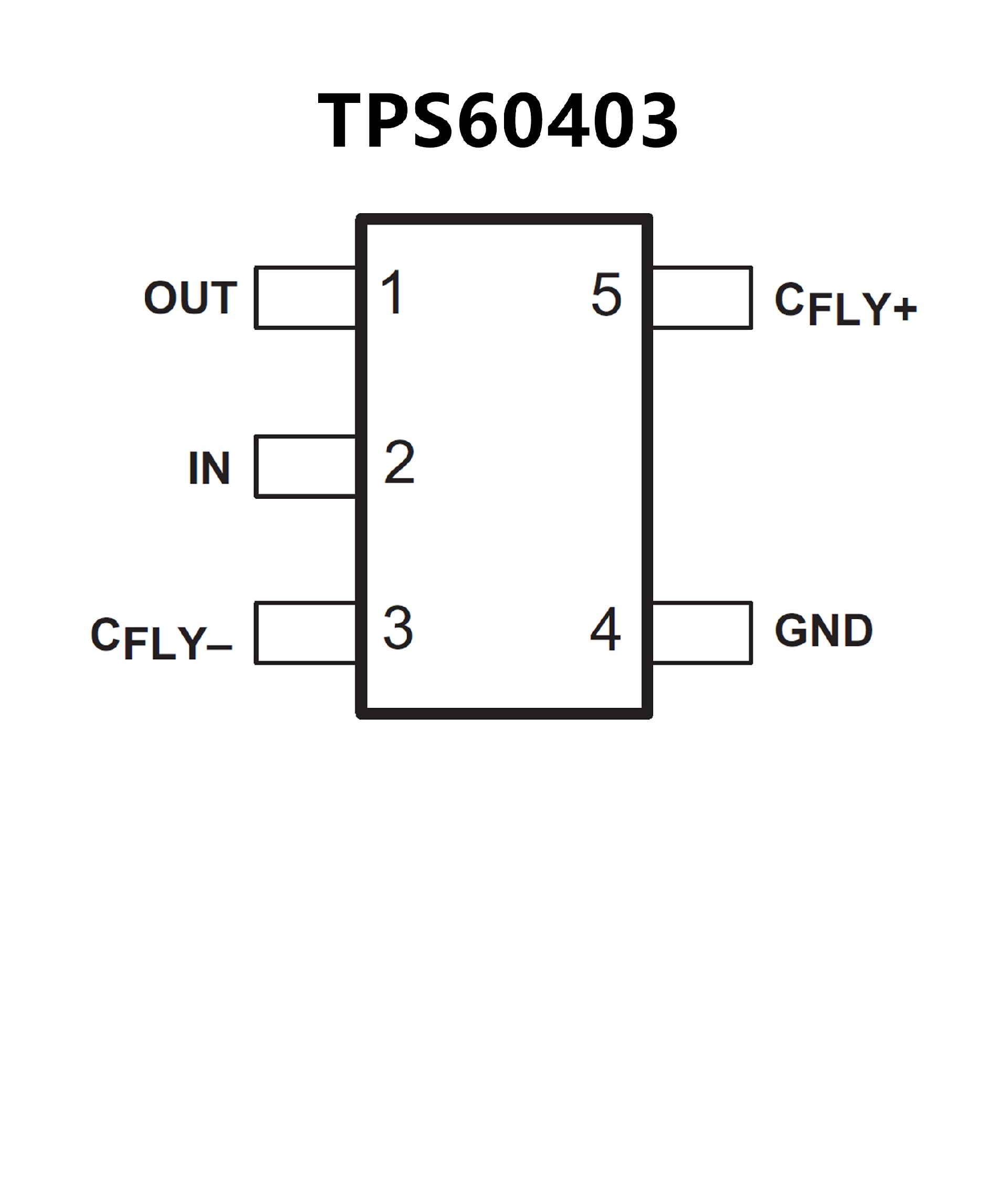

PIN CONFIGUTION
