SGM321.pdf• Low Cost
• Rail-to-Rail Input and Output 0.8mV Typical VOS
• Unity Gain Stable
• Gain-Bandwidth Product: 1MHz
• Very Low Input Bias Current: 10pA
• Supply Voltage Range: 2.1V to 5.5V
• Input Voltage Range: -0.1V to +5.6V with VS = 5.5V
• Low Supply Current: 60μA/Amplifier
• Small Packaging

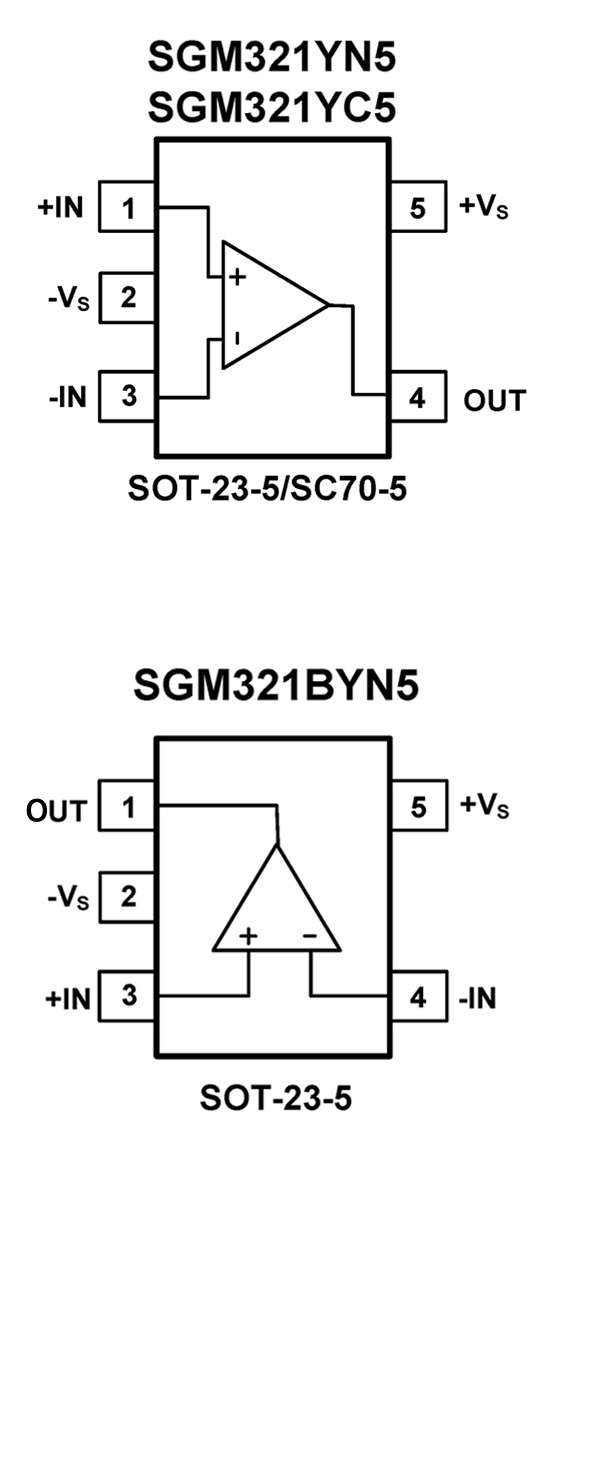

SGM321 Available in SOT-23-5 and SC70-5
• Operation from 2.7 V to 5.0 V Single−Sided Power Supply

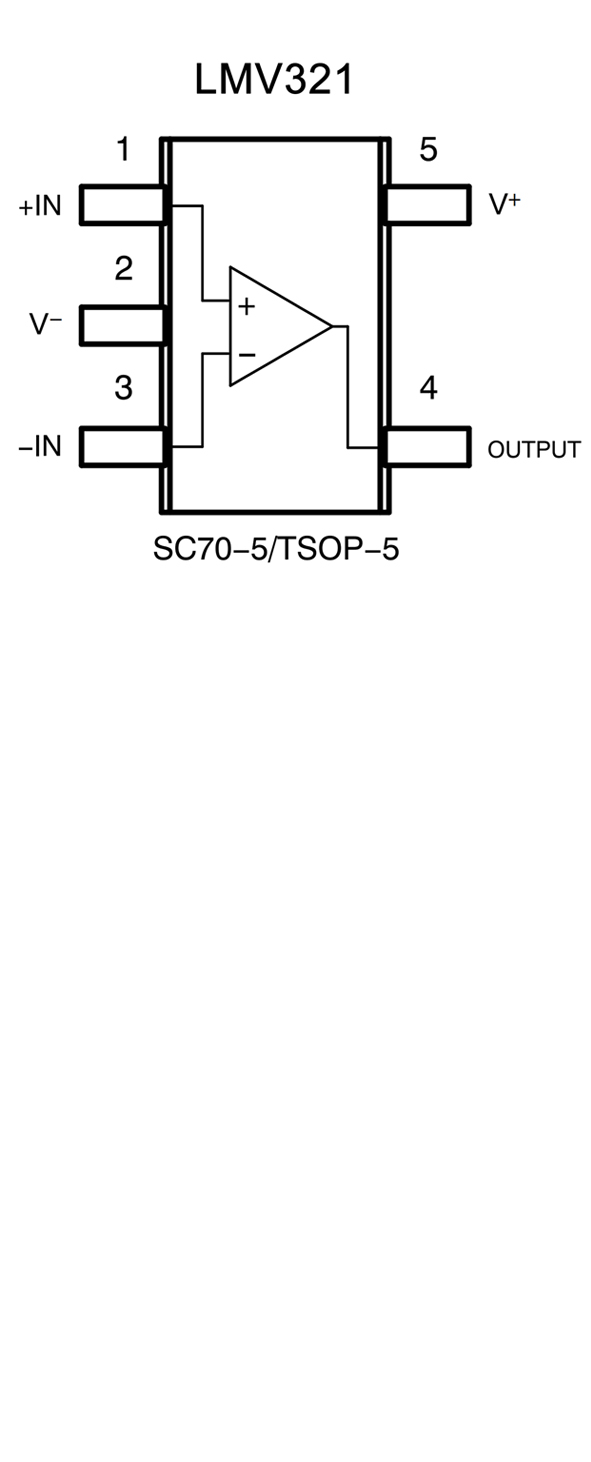

• LMV321 Single Available in Ultra Small 5 Pin SC70 Package
• No Output Crossover Distortion
• Rail−to−Rail Output
• Low Quiescent Current: LMV358 Dual − 220 A, Max per Channel
• No Output Phase−Reversal from Overdriven Input
• NCV Prefix for Automotive and Other Applications Requiring
Unique Site and Control Change Requirements; AEC−Q100
Qualified and PPAP Capable
• These Devices are Pb−Free, Halogen Free/BFR Free and
are RoHS Compliant
