1MHz, 60µA, Rail-to-Rail I/O CMOS Operational Amplifiers, SGM321 Replace LMV321IDBVR.
SGM321
SGM321.pdf
SGM321.pdfFEATURES
• Low Cost
• Rail-to-Rail Input and Output0.8mV Typical VOS
• Unity Gain Stable
• Gain Bandwidth Product: 1MHz
• Very Low Input Bias Currents: 10pA
• Operates on 2.1V to 5.5V Supplies
• Input Voltage Range:-0.1V to +5.6V with VS = 5.5V
• Low Supply Current: 60µA/Amplifier
• Small Packaging
SGM321 Available in SOT23-5 and SC70-5
SGM358 Available in SO-8, MSOP-8 and DIP-8
SGM324 Available in SO-14 and TSSOP-14

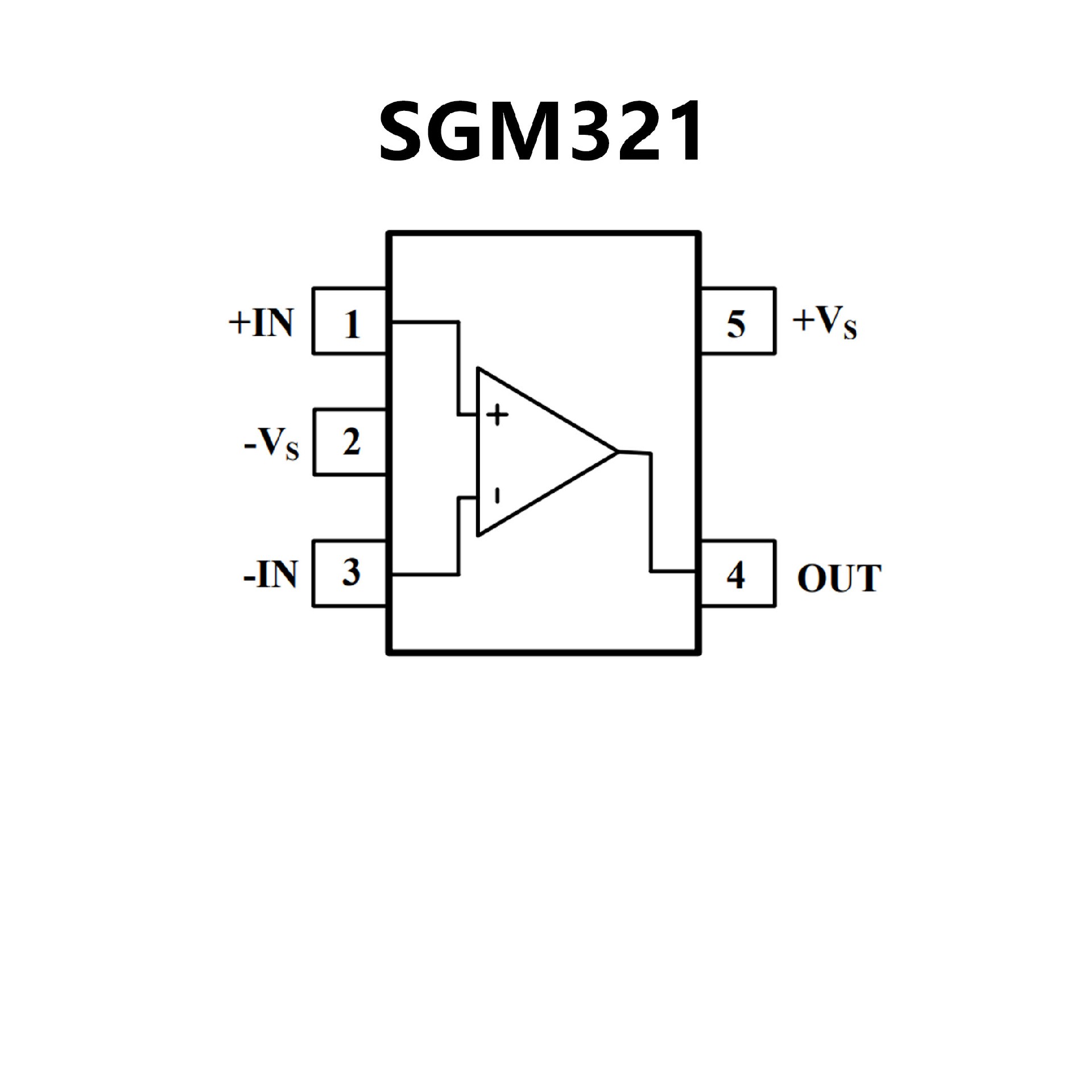

PIN CONFIGUTION
优势替代
FEATURES
• Single-Supply Operation from +2.2V ~ +5.5V
• Rail-to-Rail Input / Output
• Gain-Bandwidth Product: 1MHz (Typ.)
• Low Input Bias Current: 10pA (Typ.)
• Low Offset Voltage: 5mV (Max.)
• Quiescent Current: 40μA (Typ.)
• Operating Temperature: -40°C ~ +125°C
• Available in SOT23-5

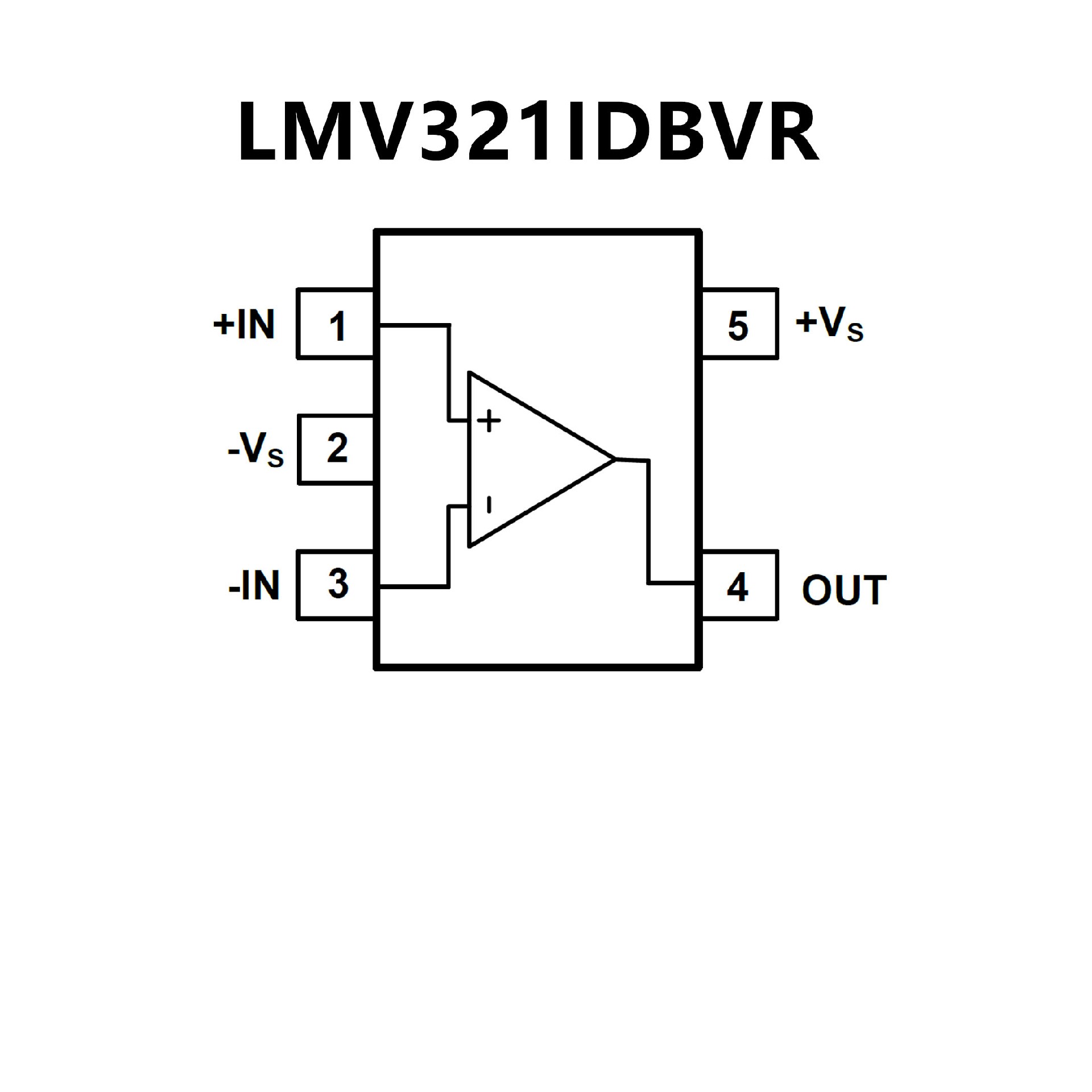

PIN CONFIGUTION
