Micro Power Operational Amplifier, SGM321 Replace TLV6001.
SGM321
SGM321.pdf
SGM321.pdfFEATURES
• Low Cost
• Rail-to-Rail Input and Output 0.8mV Typical VOS
• Unity Gain Stable
• Gain-Bandwidth Product: 1MHz
• Very Low Input Bias Current: 10pA
• Supply Voltage Range: 2.1V to 5.5V
• Input Voltage Range: -0.1V to +5.6V with VS = 5.5V
• Low Supply Current: 60μA/Amplifier
• Small Packaging
SGM321 Available in SOT-23-5 and SC70-5

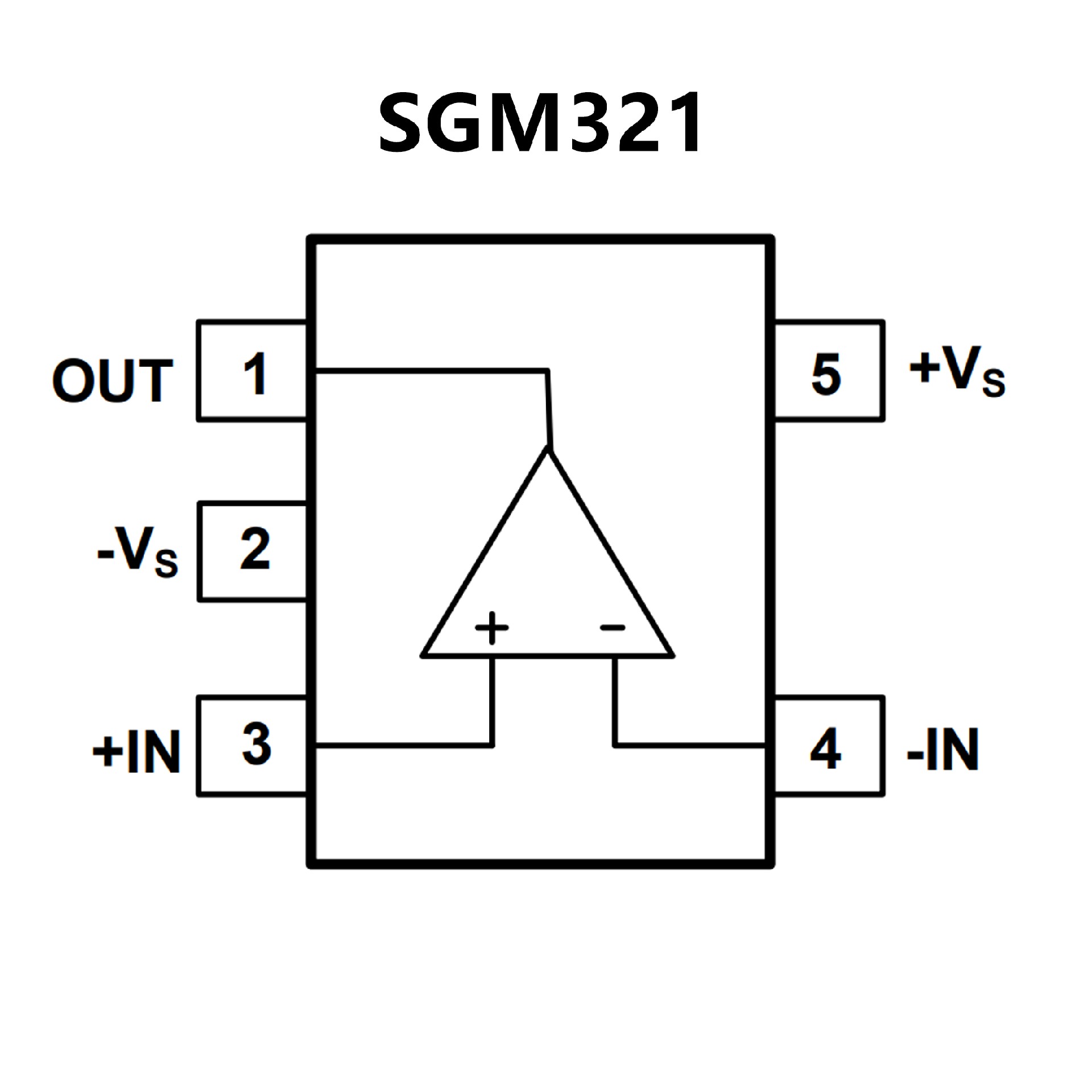

PIN CONFIGUTION
优势替代
FEATURES
• Precision Amplifiers for Cost-Sensitive Systems
• Low Quiescent Current: 75 μA/ch
• Supply Range: 1.8 V to 5.5 V
• Input Voltage Noise Density: 28 nV/√Hz at 1 kHz
• Rail-to-Rail Input/Output
• Gain Bandwidth: 1 MHz
• Low Input Bias Current: 1.0 pA
• Low Offset Voltage: 0.75 mV
• Unity-Gain Stable
• Internal RF/EMI Filter

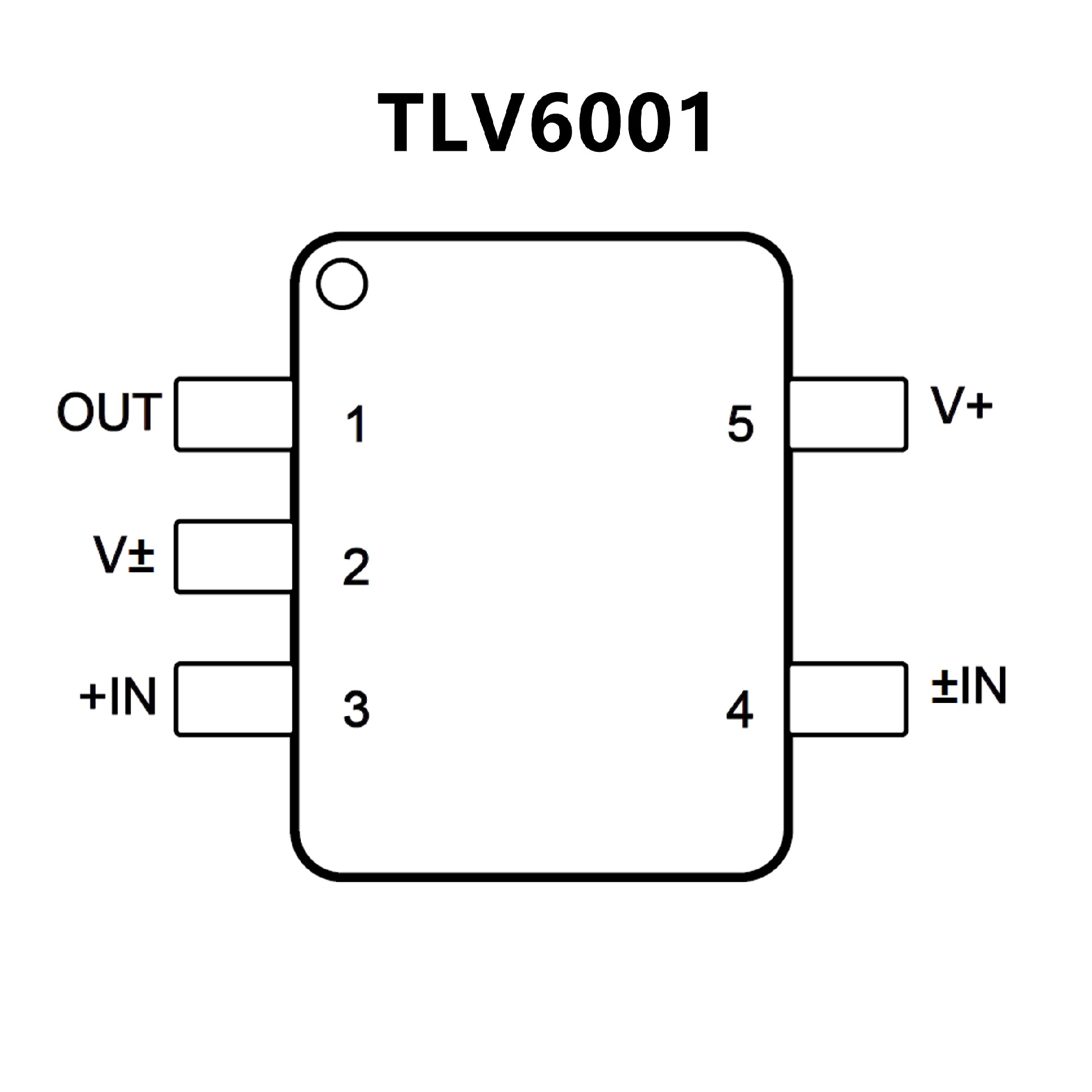

PIN CONFIGUTION
