1MHz, 60μA, Rail-to-Rail I/OCMOS Operational Amplifier,SGM321XC5 Replace OPA314AIDCKR.
SGM321XC5
SGM321XC5.pdf
SGM321XC5.pdfFEATURES
• Low Cost
• Input Offset Voltage: 5mV (MAX)
• Ultra-Low Input Bias Current: 10pA
• Unity-Gain Stable
• Gain-Bandwidth Product: 1MHz
• Rail-to-Rail Input and Output
• Supply Voltage Range: 2.1V to 5.5V
• Input Voltage Range: -0.1V to 5.6V with VS = 5.5V
• Low Supply Current: 60μA
• -40℃ to +125℃ Operating Temperature Range
• Available in a Green SC70-5 Package

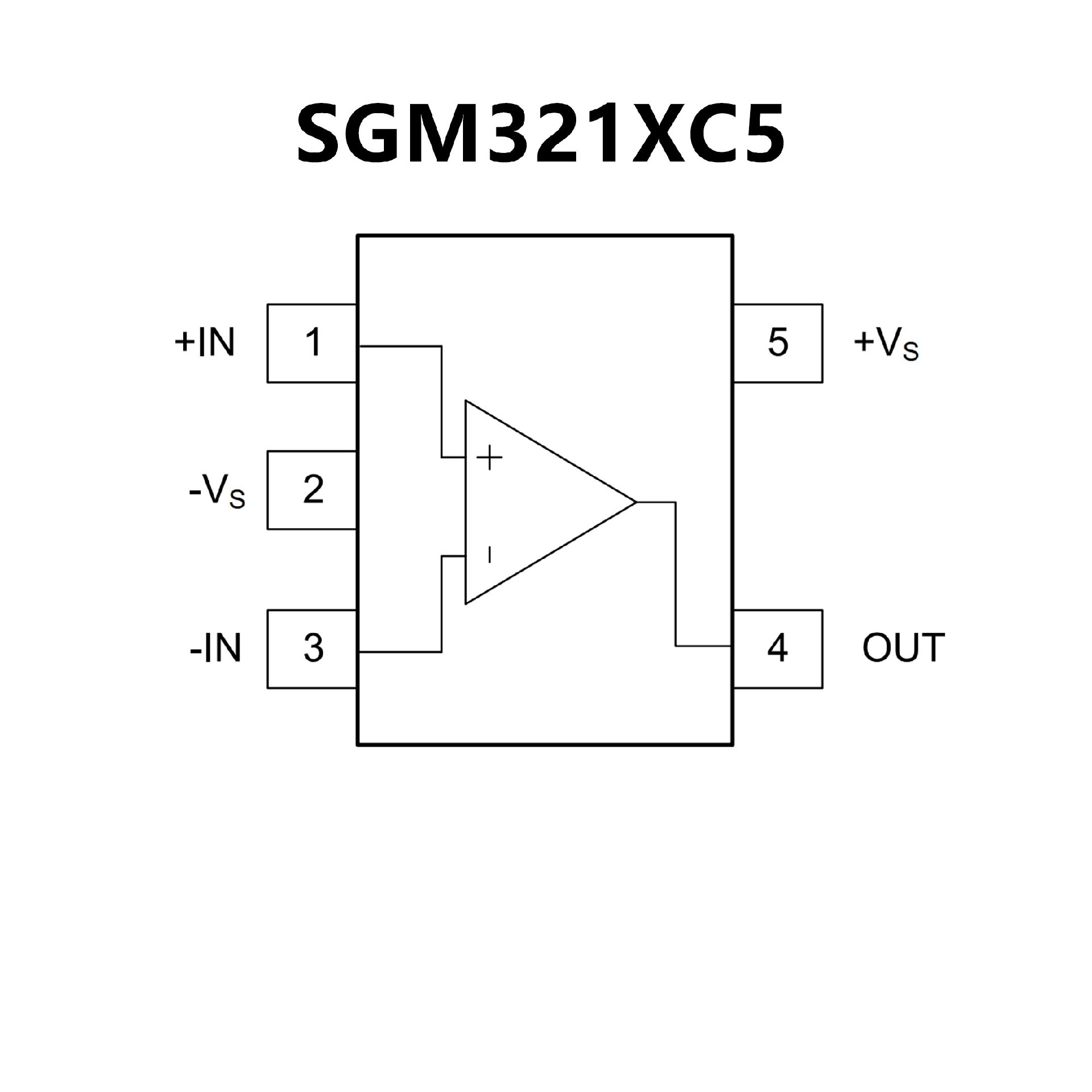

PIN CONFIGUTION
优势替代
FEATURES
• 低IQ：150μA/通道
• 宽电源电压：1.8V 至5.5V
• 低噪声： 1kHz 下为14nV/√Hz
• 增益带宽：3MHz
• 低输入偏置电流：0.2pA
• 低偏移电压：0.5mV
• 单位增益稳定
• 内部射频/电磁干扰(RF/EMI) 滤波器
• 扩展温度范围：
–40°C 至125°C

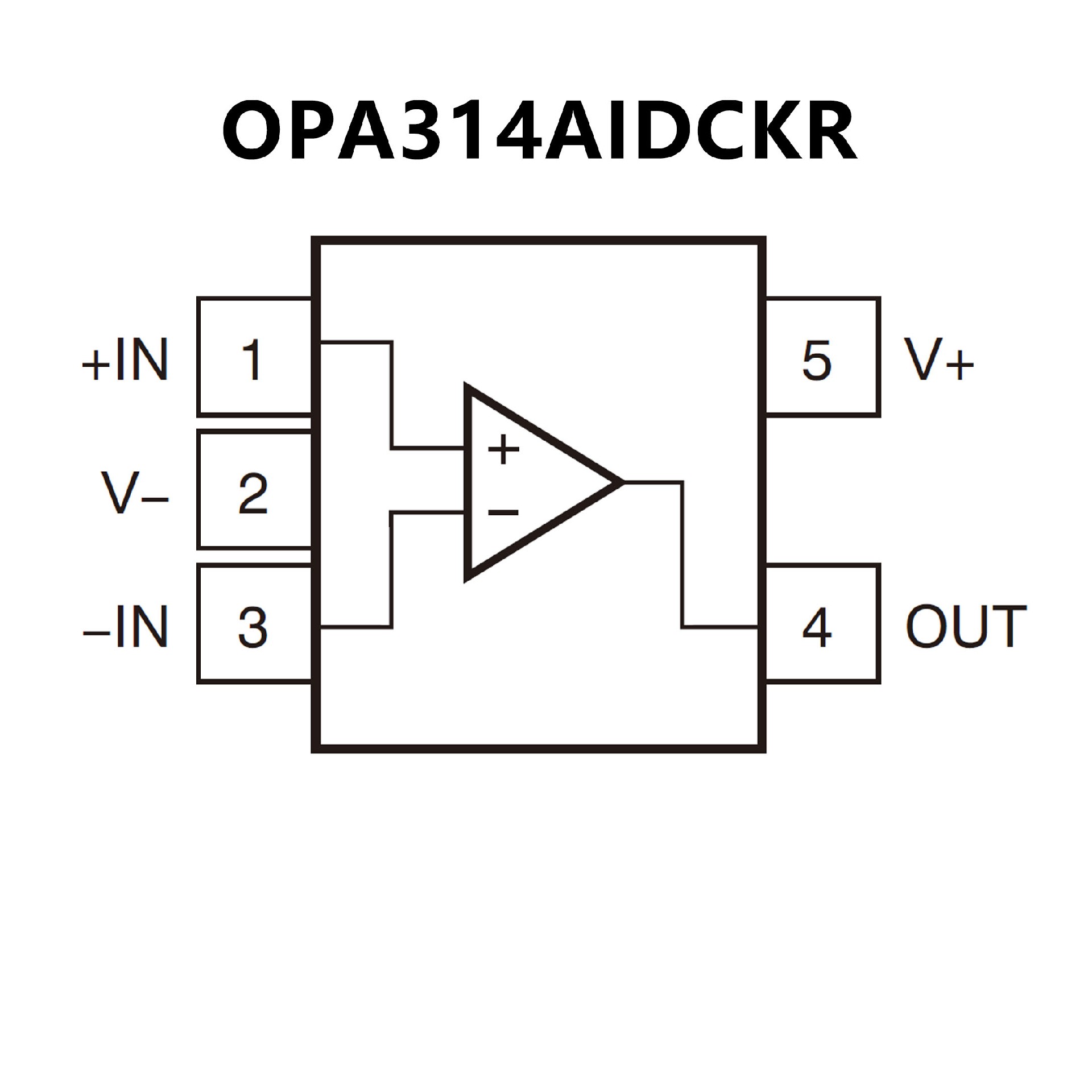

PIN CONFIGUTION
