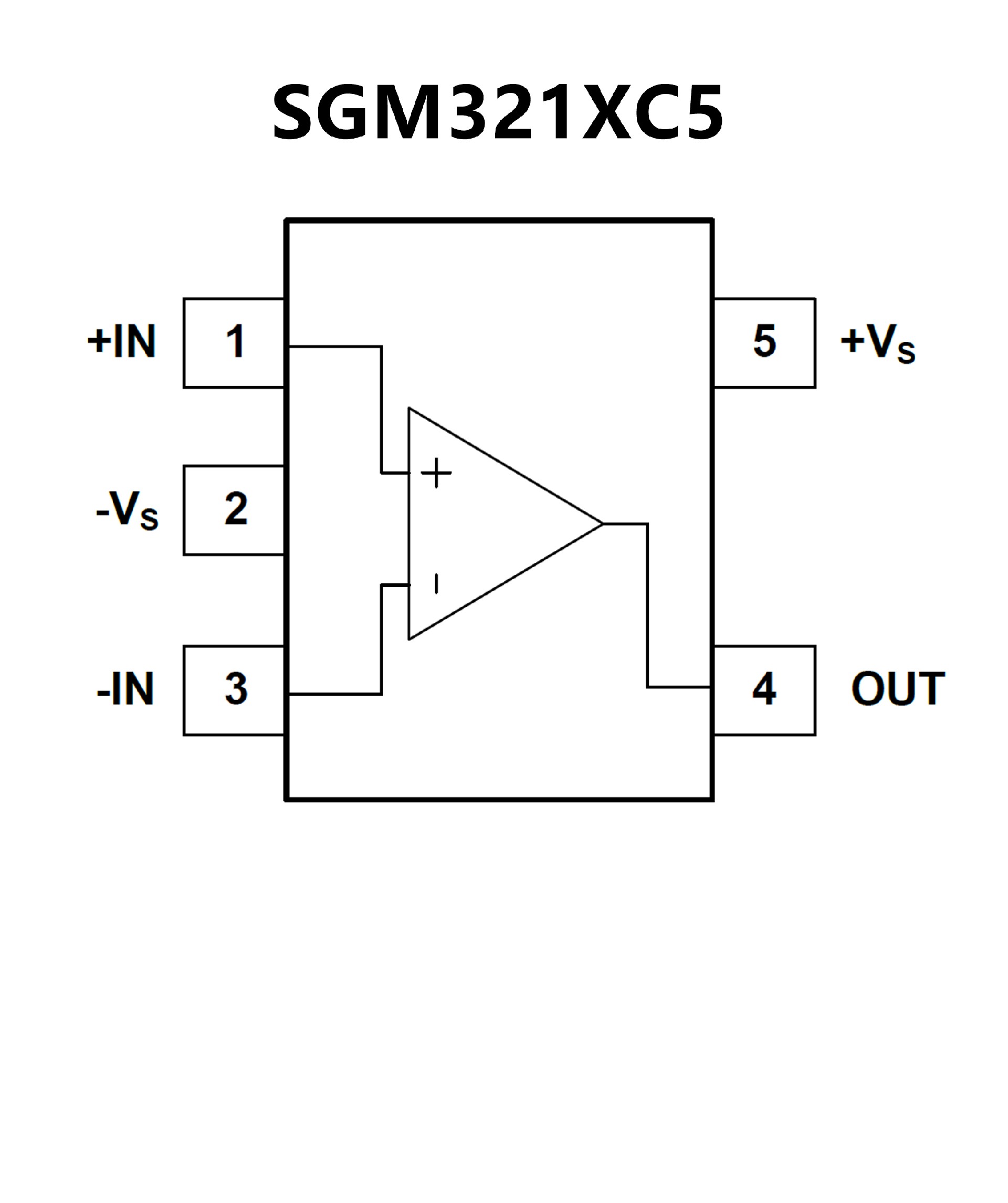

SGM321.pdf• Low Cost
• Input Offset Voltage: 5mV (MAX)
• Ultra-Low Input Bias Current: 10pA
• Unity-Gain Stable
• Gain-Bandwidth Product: 1MHz
• Rail-to-Rail Input and Output
• Supply Voltage Range: 2.1V to 5.5V
• Input Voltage Range: -0.1V to 5.6V with VS = 5.5V
• Low Supply Current: 60μA
• -40℃ to +125℃ Operating Temperature Range
• Available in a Green SC70-5 Package

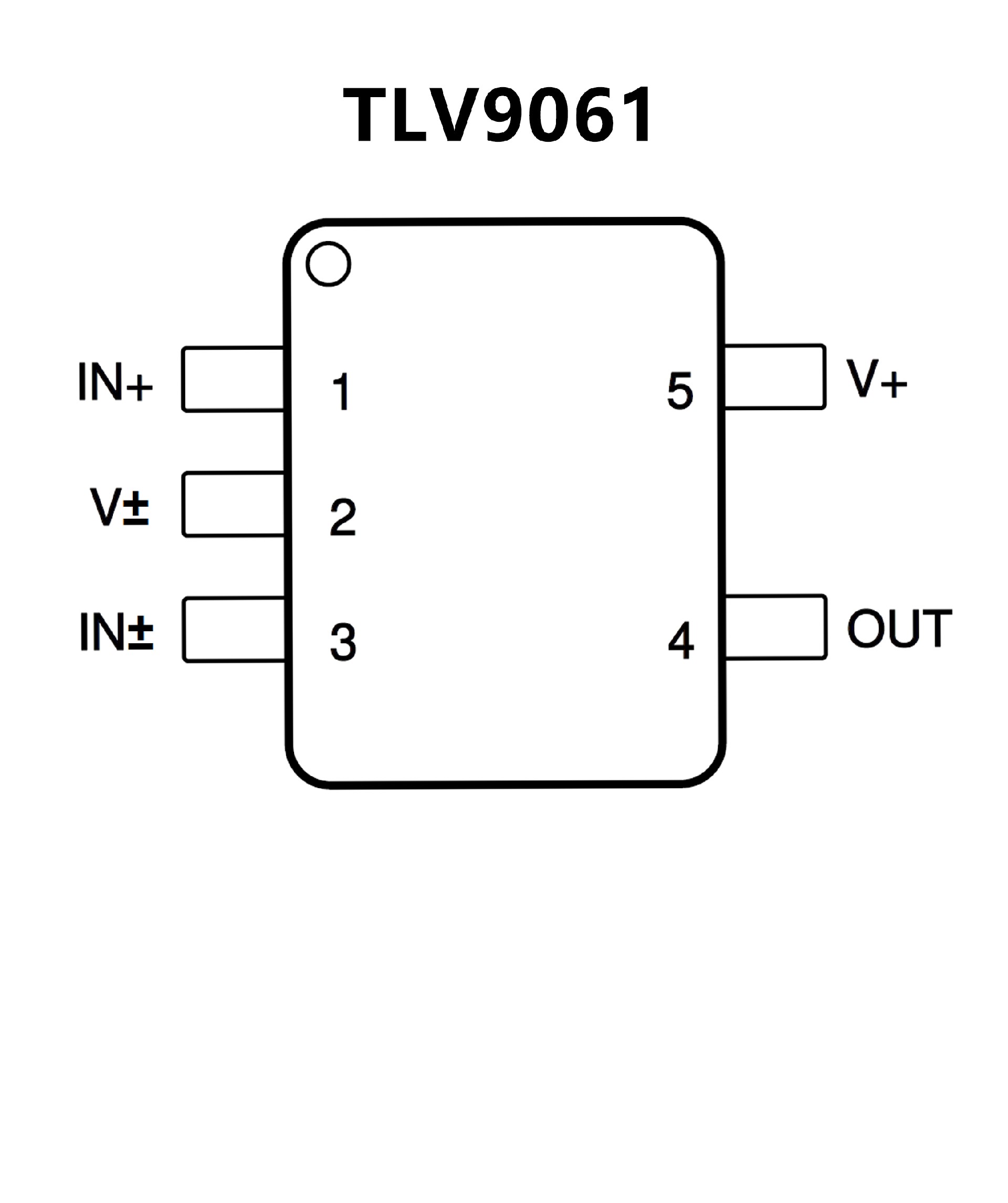

• Rail-to-rail input and output
• Low input offset voltage: ±0.3 mV
• Unity-gain bandwidth: 10 MHz
• Low broadband noise: 10 nV/√Hz
• Low input bias current: 0.5 pA
• Low quiescent current: 538 μA
• Unity-gain stable
• Internal RFI and EMI filter
• Operational at supply voltages as low as 1.8 V
• Easier to stabilize with higher capacitive load due
to resistive open-loop output impedance
• Shutdown version: TLV906xS
• Extended temperature range: –40°C to 125°C
