1MHz, 60μA, Rail-to-Rail I/O CMOS Operational Amplifiers,SGM321YC5TR-Replace-AZV321KSTR-G1.
SGM321YC5TR
SGM321YC5TR.pdf
SGM321YC5TR.pdfFEATURES
• Low Cost
• Rail-to-Rail Input and Output
• Input Offset Voltage: 5mV (MAX)
• Unity Gain Stable
• Gain-Bandwidth Product: 1MHz
• Very Low Input Bias Current: 10pA
• Supply Voltage Range: 2.1V to 5.5V
• Input Voltage Range:
-0.1V to 5.6V with VS = 5.5V
• Low Supply Current: 60μA/Amplifier
• Small Packaging:SGM321 Available in SOT-23-5
and SC70-5SGM358 Available in SOIC-8, MSOP-8
and DIP-8 SGM324 Available in SOIC-14 and TSSOP-14

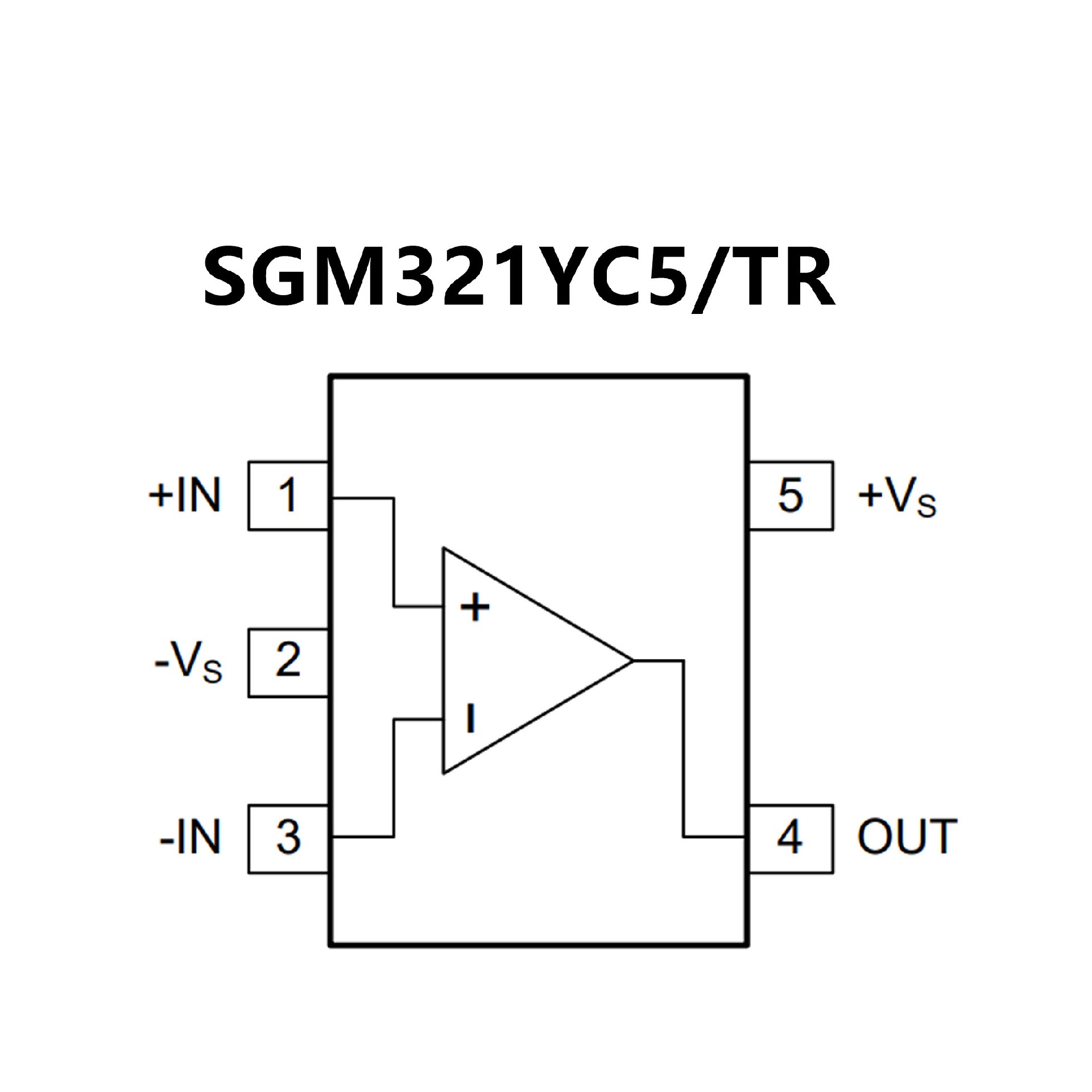

PIN CONFIGUTION
优势替代
FEATURES
• Guaranteed 2.7V to 5.5V Performance
• No Crossover Distortion
• Gain-Bandwidth Product 1MHz
• Industrial Temperature Range:
-40ºC to +85ºC
• Low Supply Current: 130µA
• Rail-to-Rail Output Swing under
10kΩ Load:
VOH up to VCC-10mV
VOL near to VEE+65mV
• VCM: -0.1V to VCC-0.8V

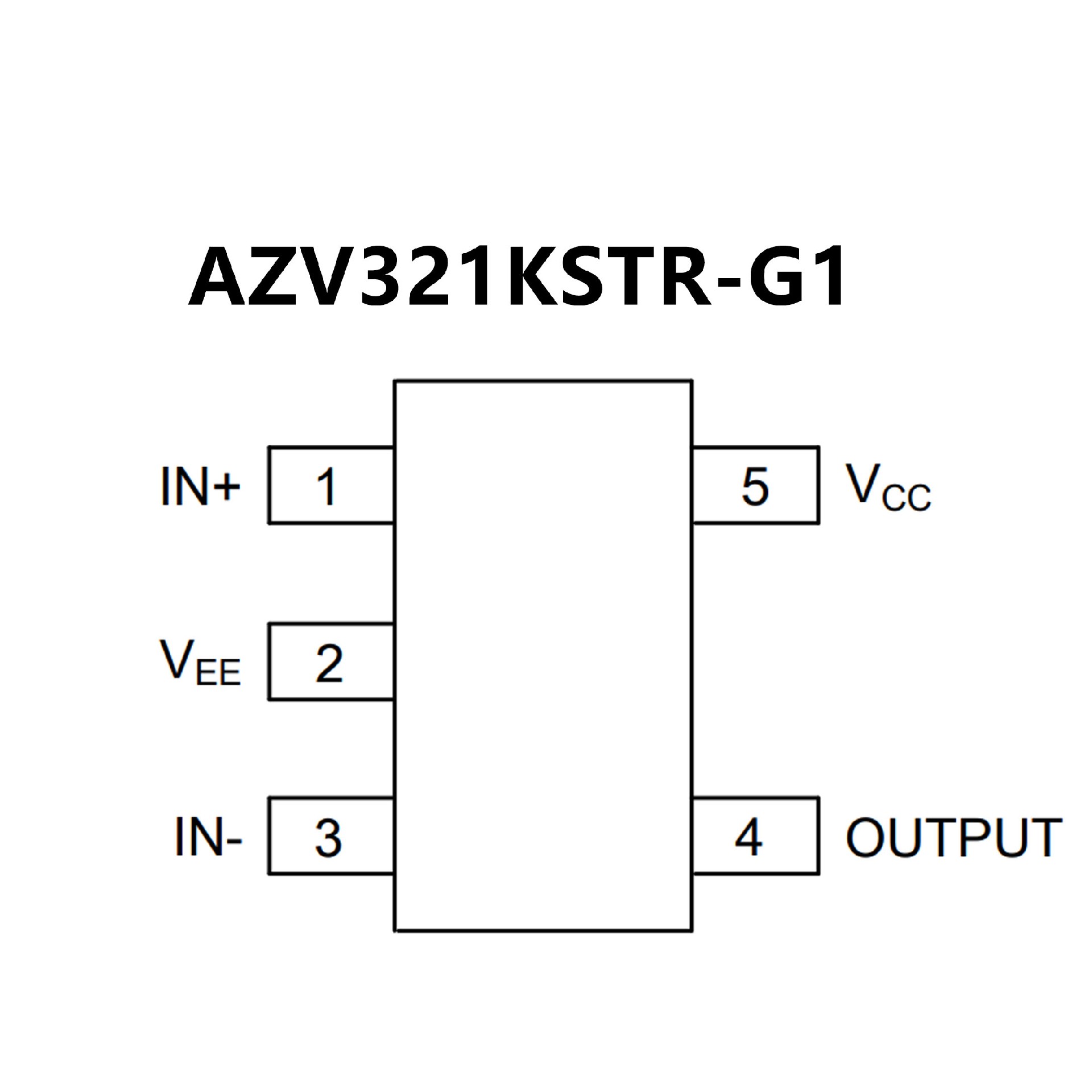

PIN CONFIGUTION
