1MHz, 60μA, Rail-to-Rail I/O CMOS Operational Amplifiers,SGM324YS14/TR Replace MCP6004
SGM324
SGM324.pdf
SGM324.pdfFEATURES
• Low Cost
• Rail-to-Rail Input and Output
• Input Offset Voltage: 5mV (MAX)
• Unity Gain Stable
• Gain-Bandwidth Product: 1MHz
• Very Low Input Bias Current: 10pA
• Supply Voltage Range: 2.1V to 5.5V
• Input Voltage Range:
0.1V to 5.6V with VS = 5.5V
• Low Supply Current: 60μA/Amplifier
• Small Packaging:
SGM321 Available in SOT-23-5 and SC70-5

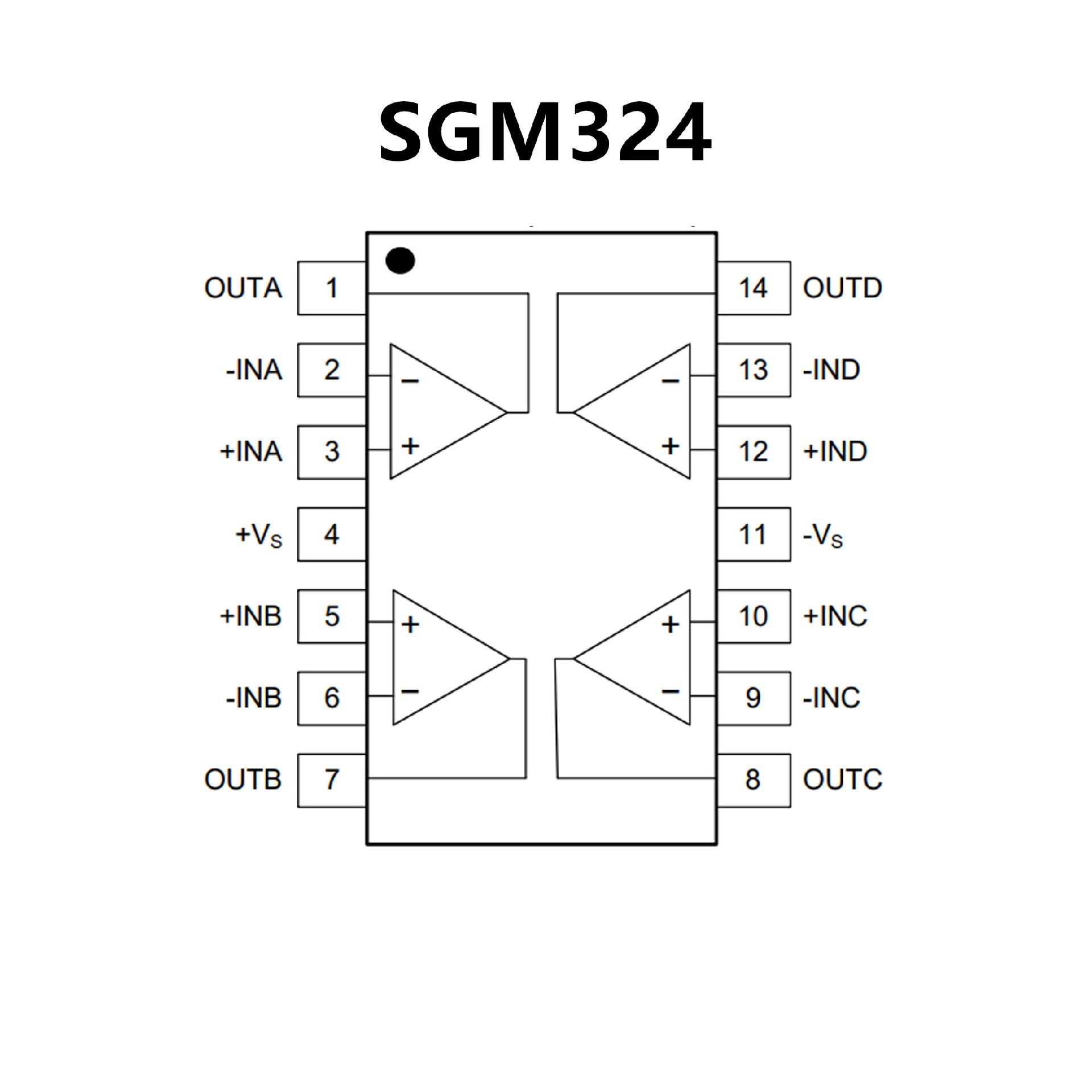

PIN CONFIGUTION
优势替代
FEATURES
• Available in SC-70-5 and SOT-23-5 packages
• Gain Bandwidth Product: 1 MHz (typical)
• Rail-to-Rail Input/Output
• Supply Voltage: 1.8V to 6.0V
• Supply Current: IQ = 100 µA (typical)
• Phase Margin: 90° (typical)
• Temperature Range:
Industrial: -40°C to +85°C
Extended: -40°C to +125°C
• Available in Single, Dual and Quad Packages

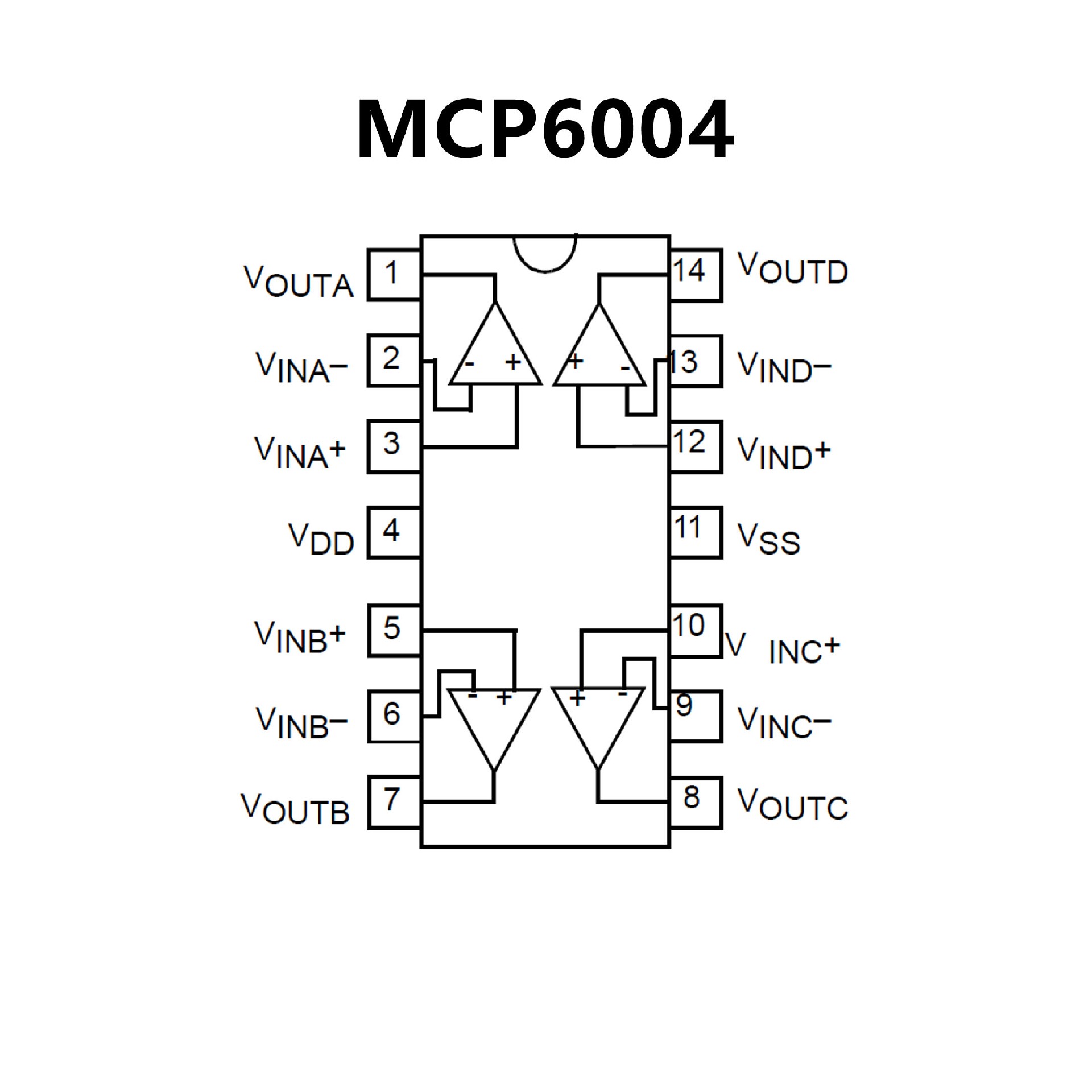

PIN CONFIGUTION
