Quad, Wide-Bandwidth SPDT Video Analog Switch,SGM330A-YS Replace PI3B3257WEX.
SGM330A-YS
SGM330A-YS.pdf
SGM330A-YS.pdfFEATURES
• Wide Bandwidth: 500MHz
• Low On-Resistance: 12Ω (TYP)
• Low Crosstalk: -60dB at 10MHz (TYP)
• Power Supply Voltage Range: 2.7V to 5.5V
• Fast Switching Time
• Rail-to-Rail Operation
• Typical Power Consumption (ICC = 0.1μA)
• TTL/CMOS Compatible
• Micro Size Packages
SOIC-16
TSSOP-16
SSOP-16
PIN CONFIGUTION
优势替代
FEATURES
• Near-Zero propagation delay
• 5Ω switches connect inputs to outputs
• Fast Switching Speed: 4.8ns max.
• Ultra-Low Quiescent Power: 0.1μA typical
Ideally suited for notebook applications
• Pin compatible with 74 series 257 logic devices
• Packaging (Pb-free & Green avaliable):
16-pin, QSOP (Q)
16-pin, SOIC (W)
16-pin, TSSOP (L)
16-pin, UQFN (ZHD)

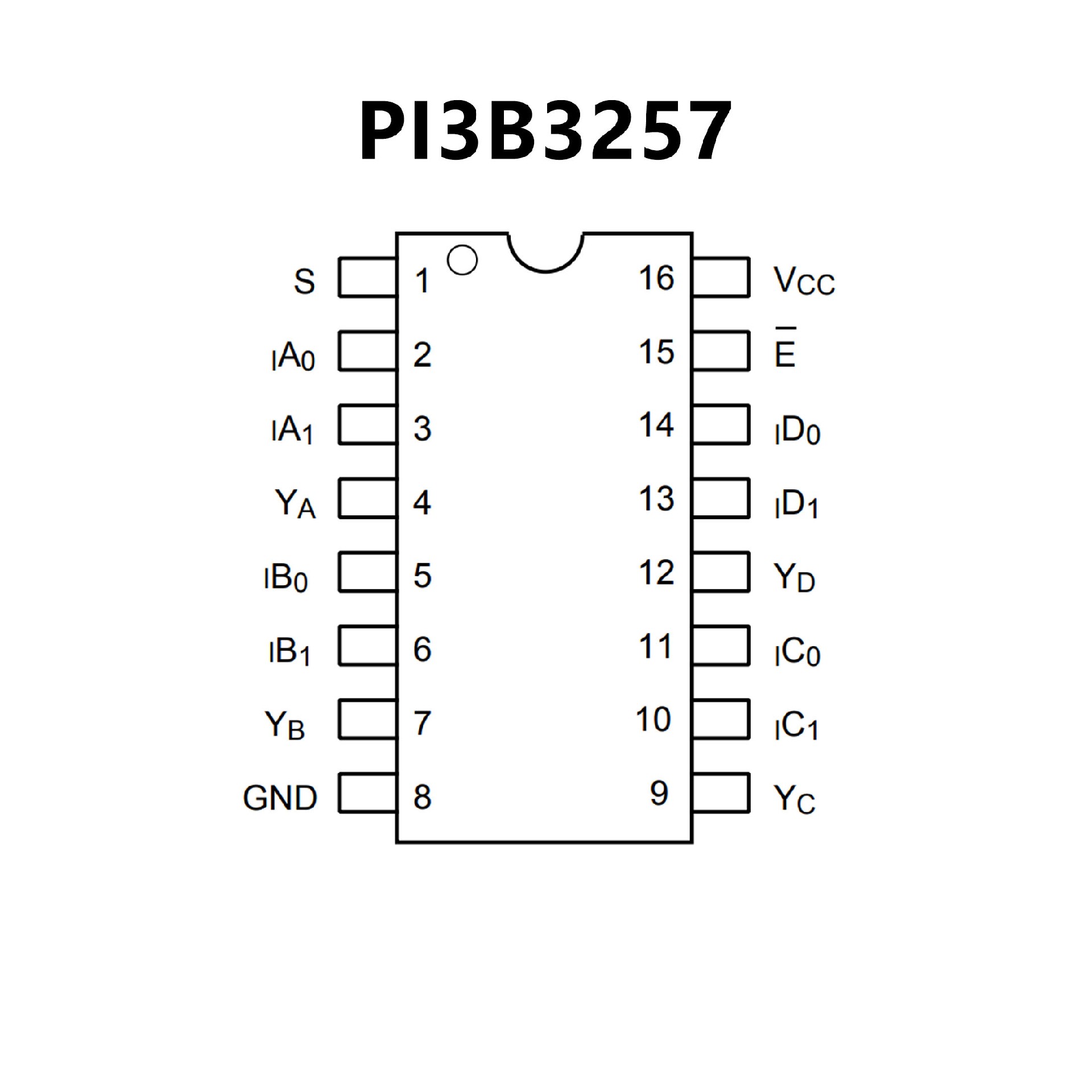

PIN CONFIGUTION
