Negative Voltage SPDT Switch,SGM3716 Replace NLHV3157N.
SGM3716
SGM3716.pdf
SGM3716.pdfFEATURES
• Operating Voltage Range: -12V to -4V
• Switch Signal Voltage Range: VEE to GND
• Positive Control Signal Voltage: 0V to 3.3V
• Low On-Resistance: 4.5Ω (TYP) at VEE = -12V
• -40℃ to +125℃ Operating Temperature Range
• Available in a Green SC70-6 Package

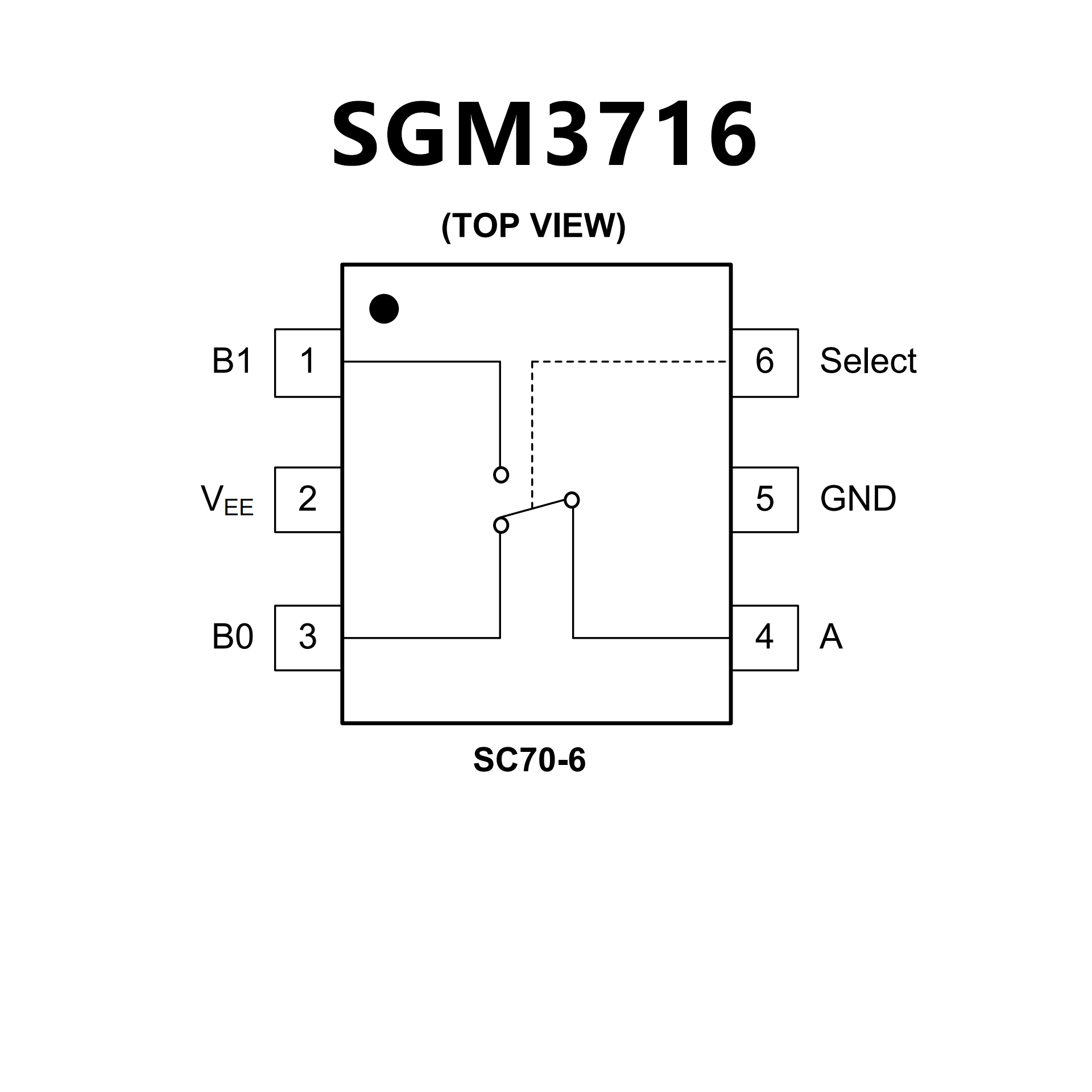

PIN CONFIGUTION
优势替代
FEATURES
• Operating Voltage Range: VEE = −12 V to −4 V
• Switch Signal Voltage Range: VIS = VEE to GND
• Positive Control Signal Voltage: VIN = 0 to 3.3 V
• Low ON Resistance: RON ≤ 5 Ω @ VEE = −10 V
• Latch−up Performance Exceeds 200 mA
• Available in: SC88 6−Pin Package
• These Devices are Pb−Free, Halogen−Free/BFR-Free
and areRoHS−Compliant

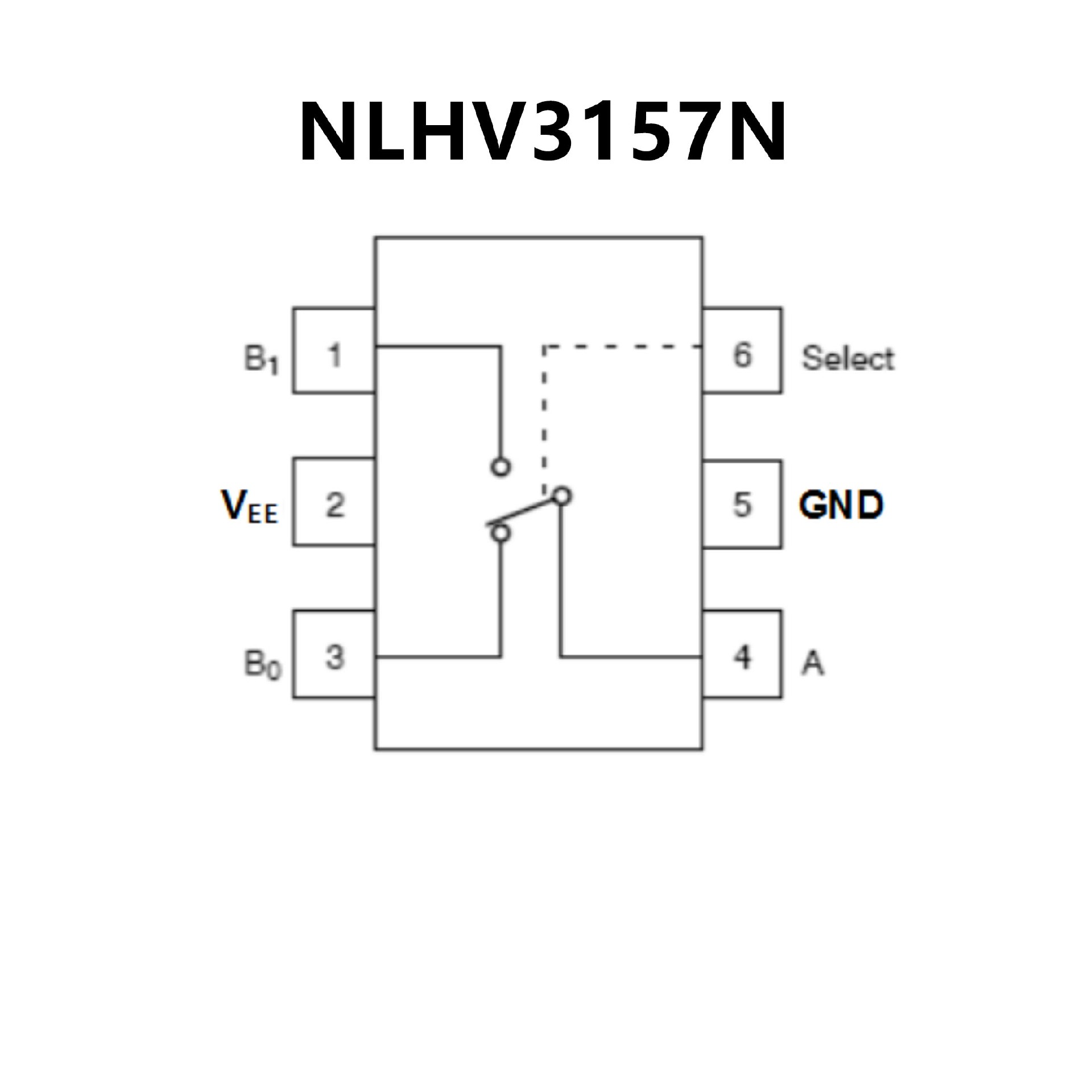

PIN CONFIGUTION
