0.6Ω Ultra Low On-Resistance, Negative Signal Passing, Dual SPDT Analog Switch,SGM3718 Replace NLAS2570.
SGM3718
SGM3718.pdf
SGM3718.pdfFEATURES
• Supply Voltage Range: 2.5V to 5V
• Ultra Low On-Resistance: 0.6Ω (TYP) at 4.5V
• -2V Low Distortion Negative Signal Passing
• Fast Switching Times
tON = 17ns (TYP)
tOFF = 24ns (TYP)
• High Off-Isolation: -57dB at 1MHz
• Low Crosstalk: -61dB at 1MHz
• Rail-to-Rail Input and Output Operation
• 1.8V Logic Compatible Control Pin
• Break-Before-Make Switching
• -40℃ to +85℃ Operating Temperature Range
• Available in Green TQFN-1.8×1.4-10L Package

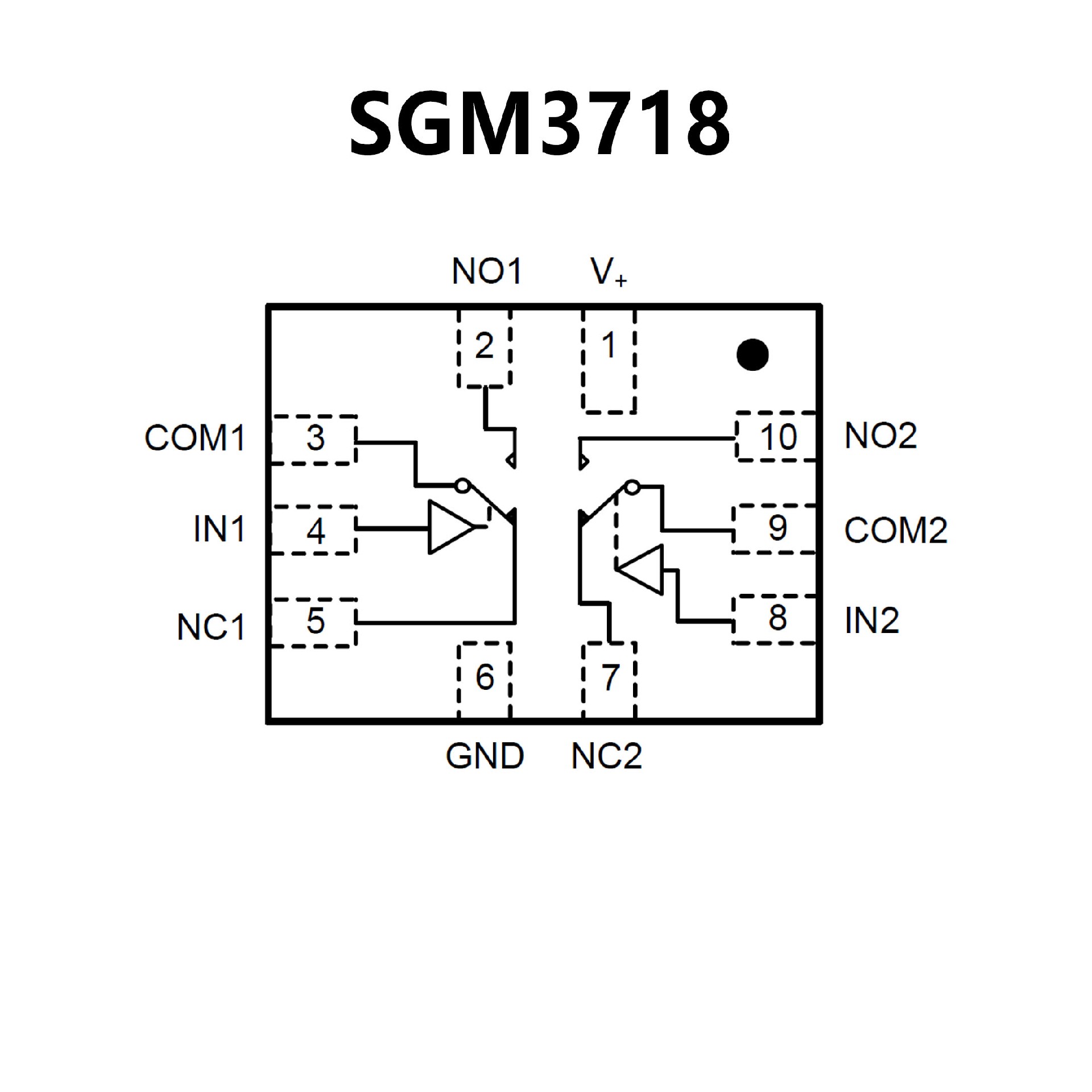

PIN CONFIGUTION
优势替代
FEATURES
• Capable to Switch Negative Swing Audio
Signals Without Requiring a DC Blocking Capacitor
• Low On−resistance (RON)
• Low Voltage Digital Control Logic:
(VINH = 1.4 V @ VCC = 2.7 V to 4.3 V)
• Low Power Consumption (ICC ≤ 250 nA)
• Space Saving 1.4 mm x 1.8 mm Package UQFN Package
• This is a Pb−Free Device

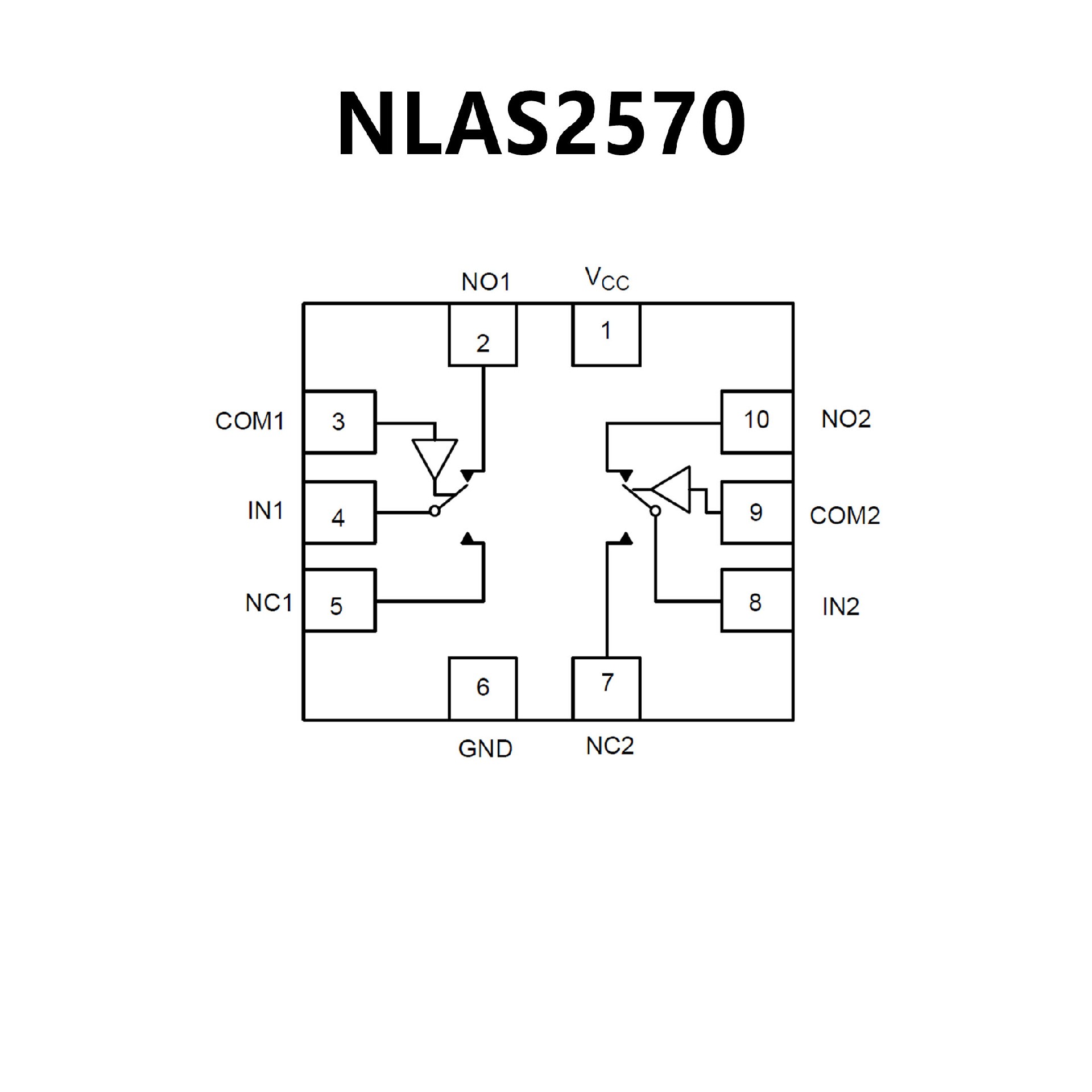

PIN CONFIGUTION
