• 3V to 18V Input Voltage Range

• Integrated 1.5A/40V MOSFET

• 1.2MHz Switching Frequency

• Optimized Rise Time and Fall Time

   to ControlEMI for SW Pin

• Dual Current Sinks of up to 30mA Current Each

• 1% Typical Current Matching and Accuracy

• 38.5V OVP, 1.2MHz Frequency

• Adaptive Boost Output to WLED Voltages

• Very Low Voltage Headroom Control (90mV)

• Flexible Digital and PWM Brightness Control

• One Wire Control Interface

• PWM Dimming Control Interface

• Up to 9-Bit Dimming Resolution

• Up to 90% Efficiency

• Built-In Soft-Start Function

• Over-Voltage Protection

• Built-In WLED Open/Short Protection

• Dimming Stable in More than 1:500 PWM Range

• PFM Mode at Light Load

• Thermal Shutdown

• Support 4.7μH Inductor Application

• -40℃ to +85℃ Operating Temperature Range

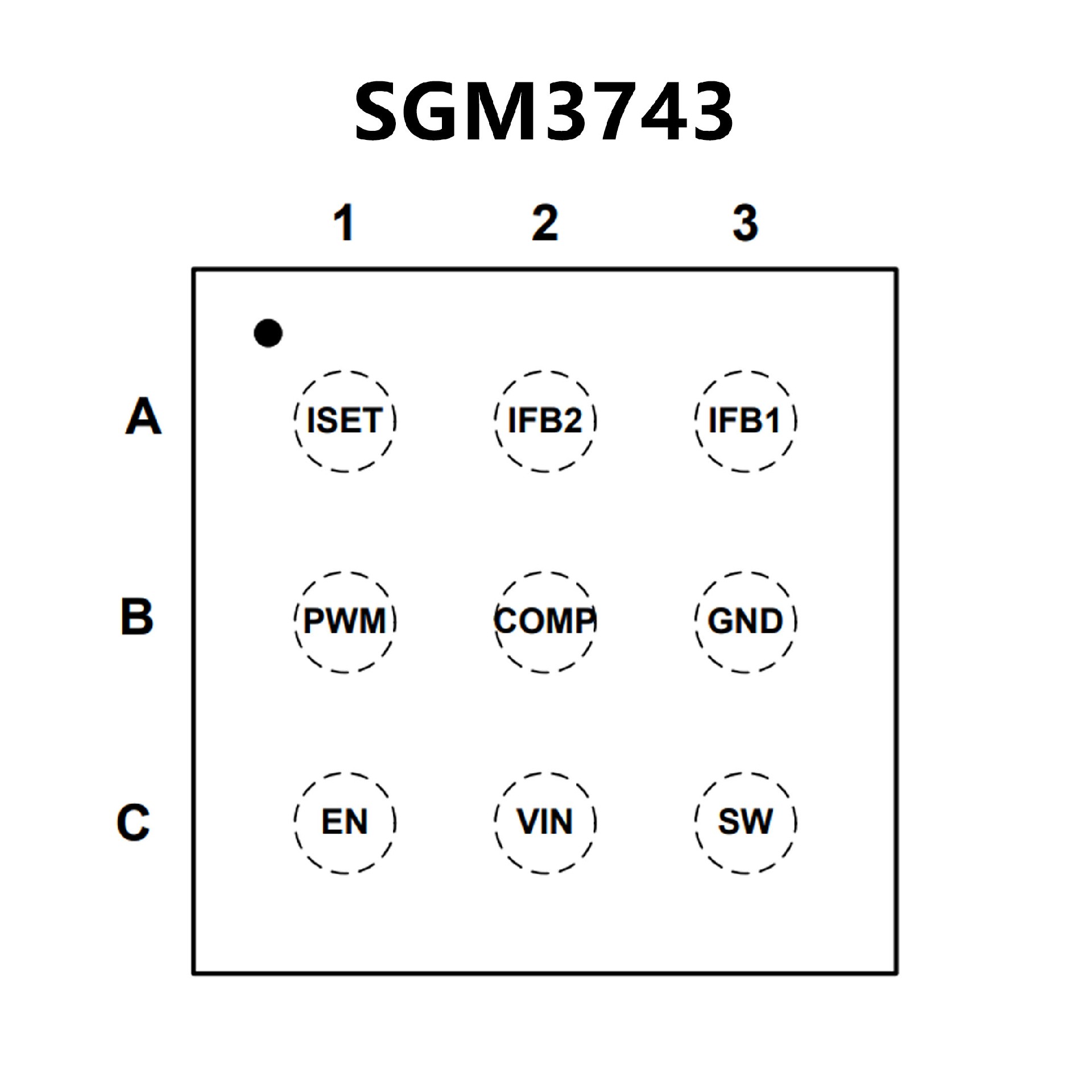

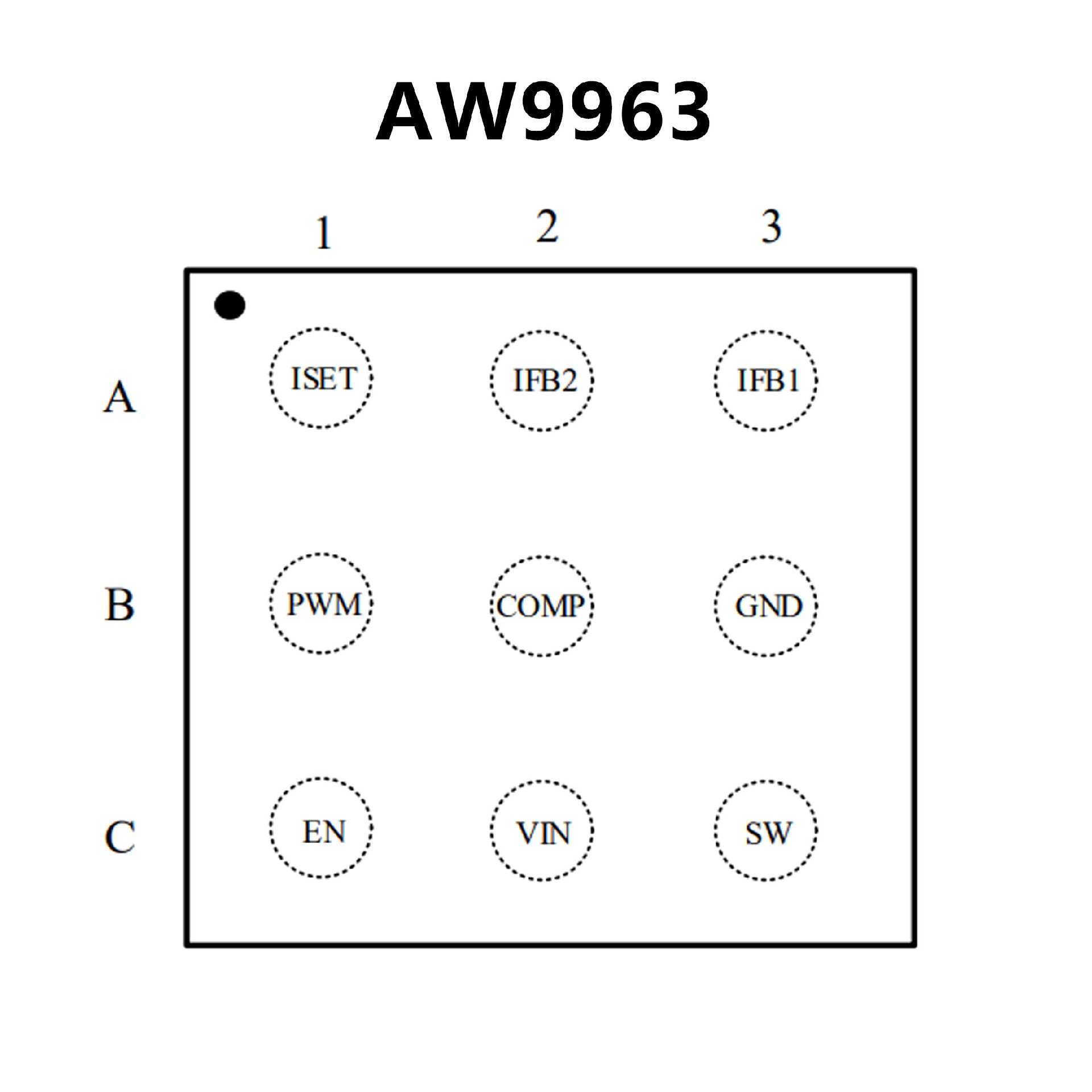

• Available in a Green WLCSP-1.32×1.32-9B Package
