0.5Ω, Low Voltage Dual, DPDT Analog Switch,SGM3799YTQA16 Replace FSA2466UMX.
SGM3799YTQA16
SGM3799YTQA16.pdf
SGM3799YTQA16.pdfFEATURES
• Low Voltage Operation: 1.8V to 4.35V
• Ultra Low On-Resistance: 0.5Ω (TYP)
• Low On-Resistance Flatness
• -3dB Bandwidth: 70MHz
• Fast Switching Times (4.2V)
tON = 52ns
tOFF = 25ns
• Rail-to-Rail Input and Output Operation
• Low Power Consumption
• TTL/CMOS Compatible Logic Control
• -40℃ to +85℃ Operating Temperature Range
• Available in Green TQFN-2.6×1.8-16L Package
PIN CONFIGUTION
优势替代
FEATURES
• Sw itch Type DPDT (2x)
• Input Type Data / Audio Sw itch
• Input Signal Range 0 to VCC
• VCC 1.65 to 4.45 V
• RON 2.5 Ω at 2.7 V
• RFLAT 0.8 Ω at 2.7 V
• ESD 8 kV HBM
• Bandw idth 245 MHz
• CON at 240MHz 16 pF
• COFF at 240MHz 6.0 pF
• Features Low ICCT
• Package 16- Lead UMLP
• 1.80 x 2.60 x
0.55 mm, 0.40 mm pitch
• Top Mark KA
• Ordering Information FSA2466UMX

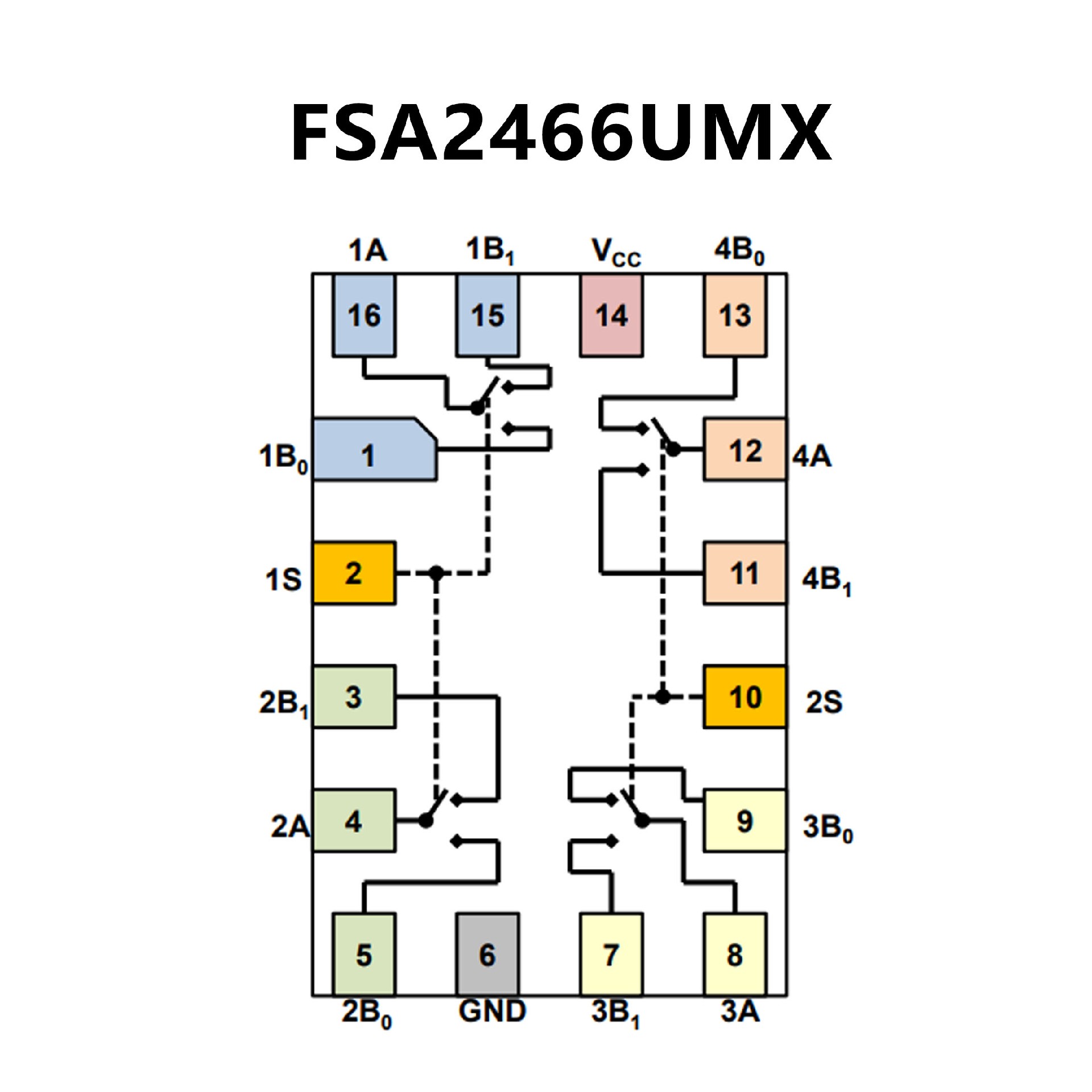

PIN CONFIGUTION
