• Synchronous Inverting Buck-Boost

  Converter(ELVSS)

  -6.0V to -0.8V Output Voltage with 100mV Step

  -3.0V Default Output Voltage

  1% Accuracy at -3V

  700mA Output Current Capability

• Synchronous Boost Converter (A_VDD)

  5.5V to 7.9V Output Voltage with 100mV Step

  7.3V Default Output Voltage

  0.9% Accuracy at 7.3V

 150mA Output Current Capability

• V_IN and V_OUT Bi-Directional Isolation

• Short Circuit Protection (SCP)

• Overload Protection

• Thermal Shutdown

• VELVSS Start-Up Delay: 5.6ms

• Short Circuit and OLP Detection Time: 0.71ms

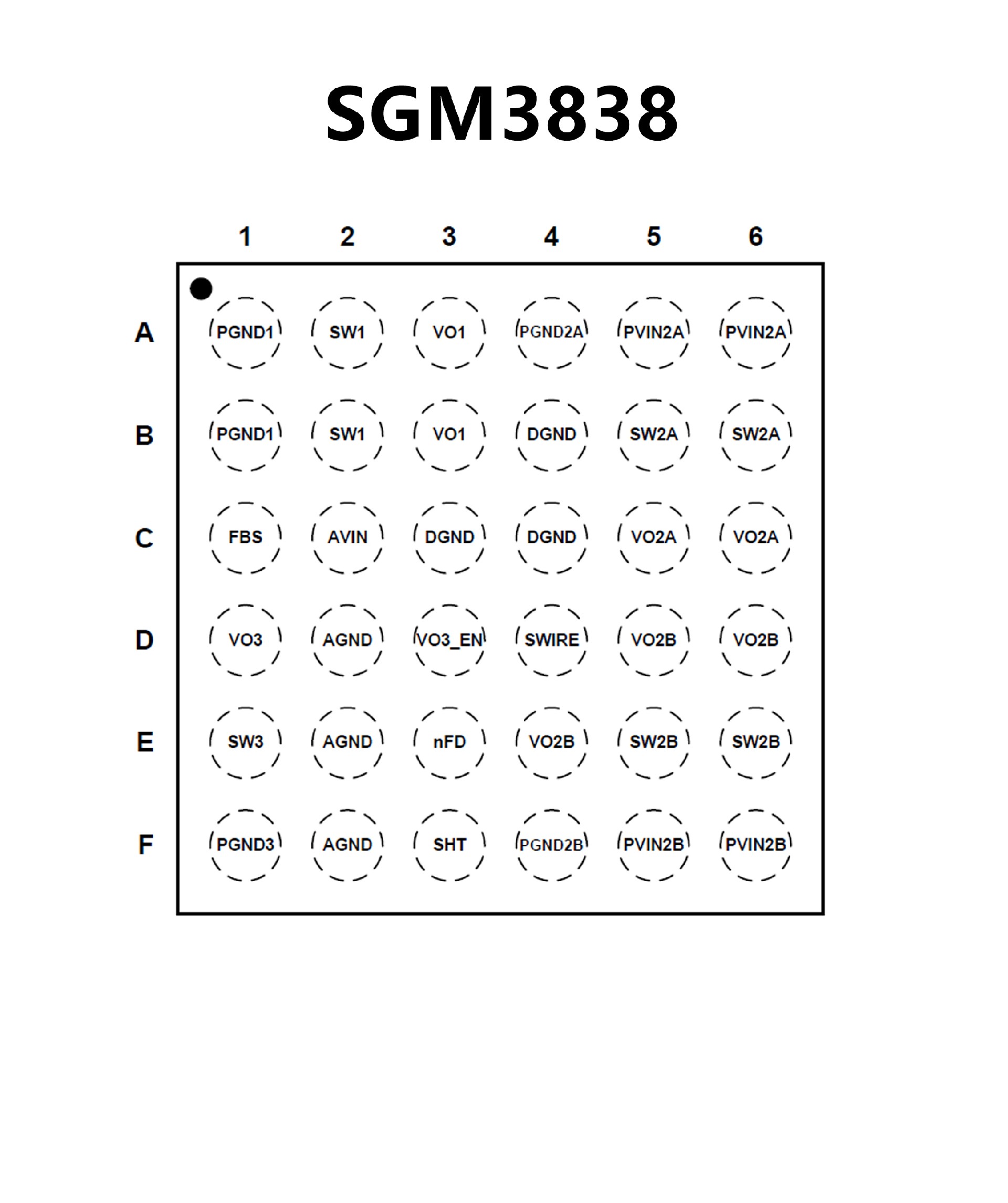

• Available in a Green WLCSP-2.5×2.5-36B Package
