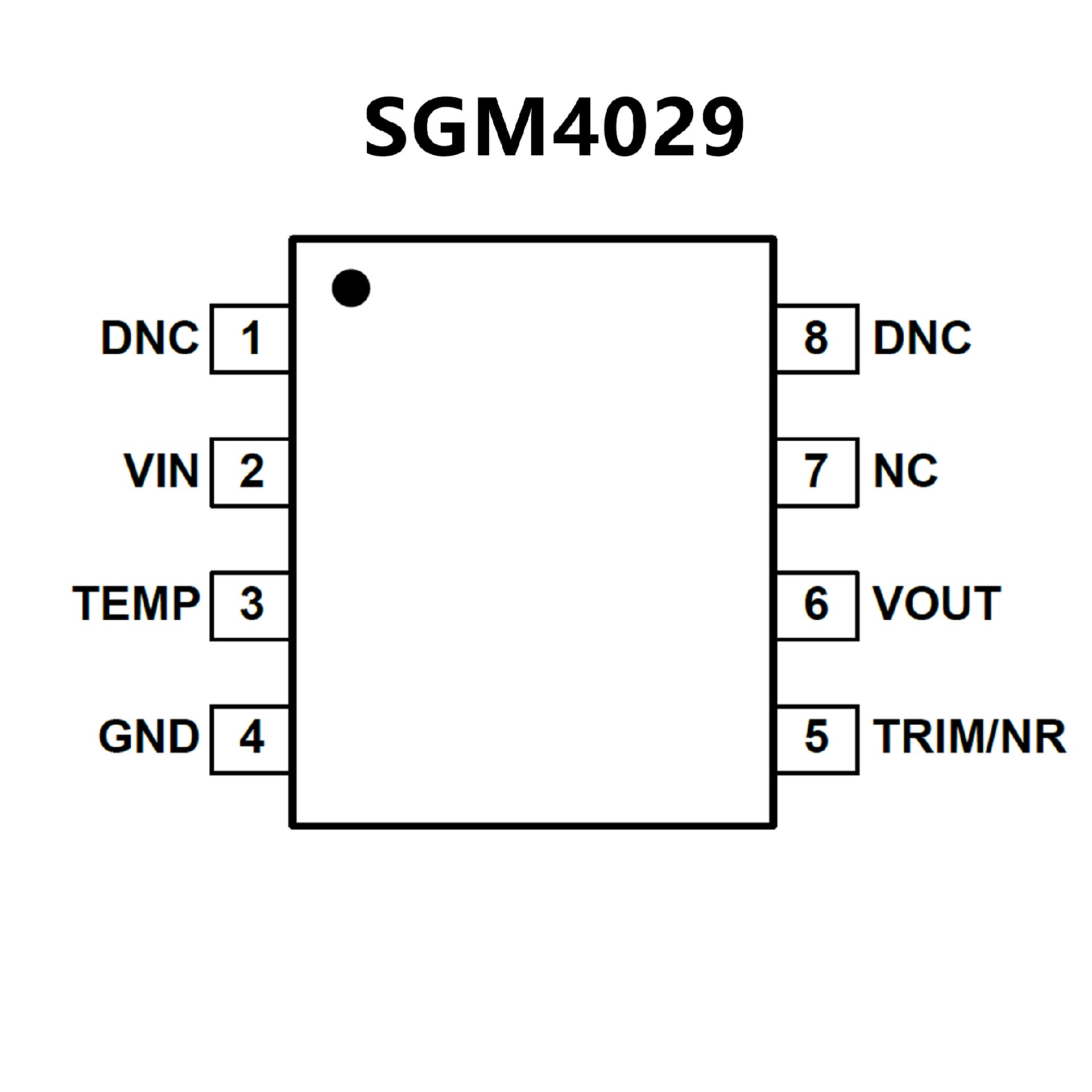

SGM4029-2.5.pdf• Low Temperature Drift:
-40℃ to +125℃: 5ppm/℃ (TYP), 10ppm/℃ (MAX)
0℃ to +85℃: 2ppm/℃ (TYP), 5ppm/℃ (MAX)
• High Accuracy: ±0.05% (TYP), ±0.1% (MAX)
• Low Noise: 5μVP-P/V
• High Output Current: ±10mA
• -40℃ to +125℃ Operating Temperature Range
• Available in Green SOIC-8 and MSOP-8 Packages

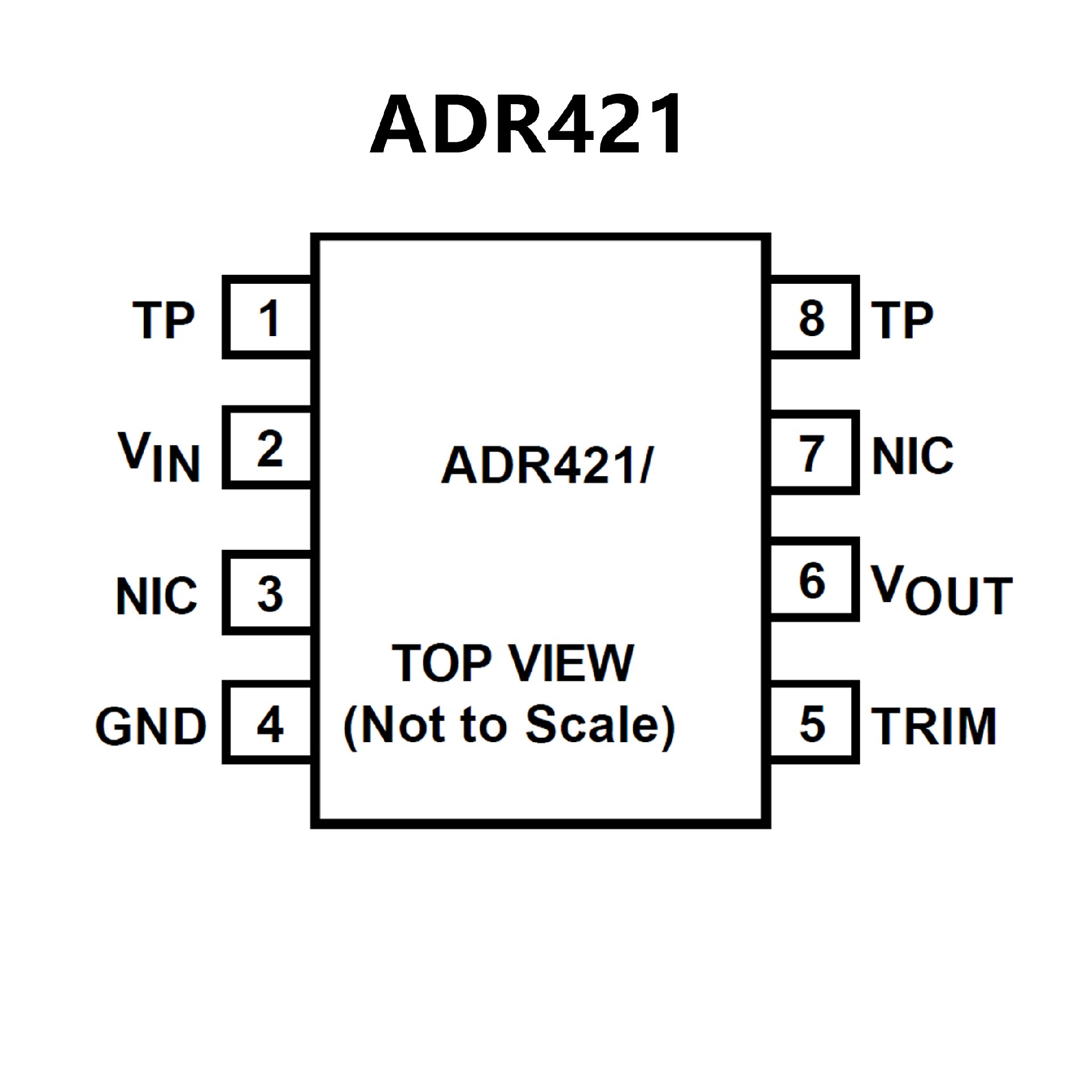

• Low noise (0.1 Hz to 10 Hz)
ADR420: 1.75 μV p-p
ADR421: 1.75 μV p-p
ADR423: 2.0 μV p-p
ADR425: 3.4 μV p-p
• Low temperature coefficient: 3 ppm/°C
• Long-term stability: 50 ppm/1000 hours
• Load regulation: 70 ppm/mA
• Line regulation: 35 ppm/V
• Low hysteresis: 40 ppm typical
• Wide operating range
ADR420: 4 V to 18 V
ADR421: 4.5 V to 18 V
ADR423: 5 V to 18 V
ADR425: 7 V to 18 V
• Quiescent current: 0.5 mA maximum
• High output current: 10 mA
• Wide temperature range: −40°C to +125°C
