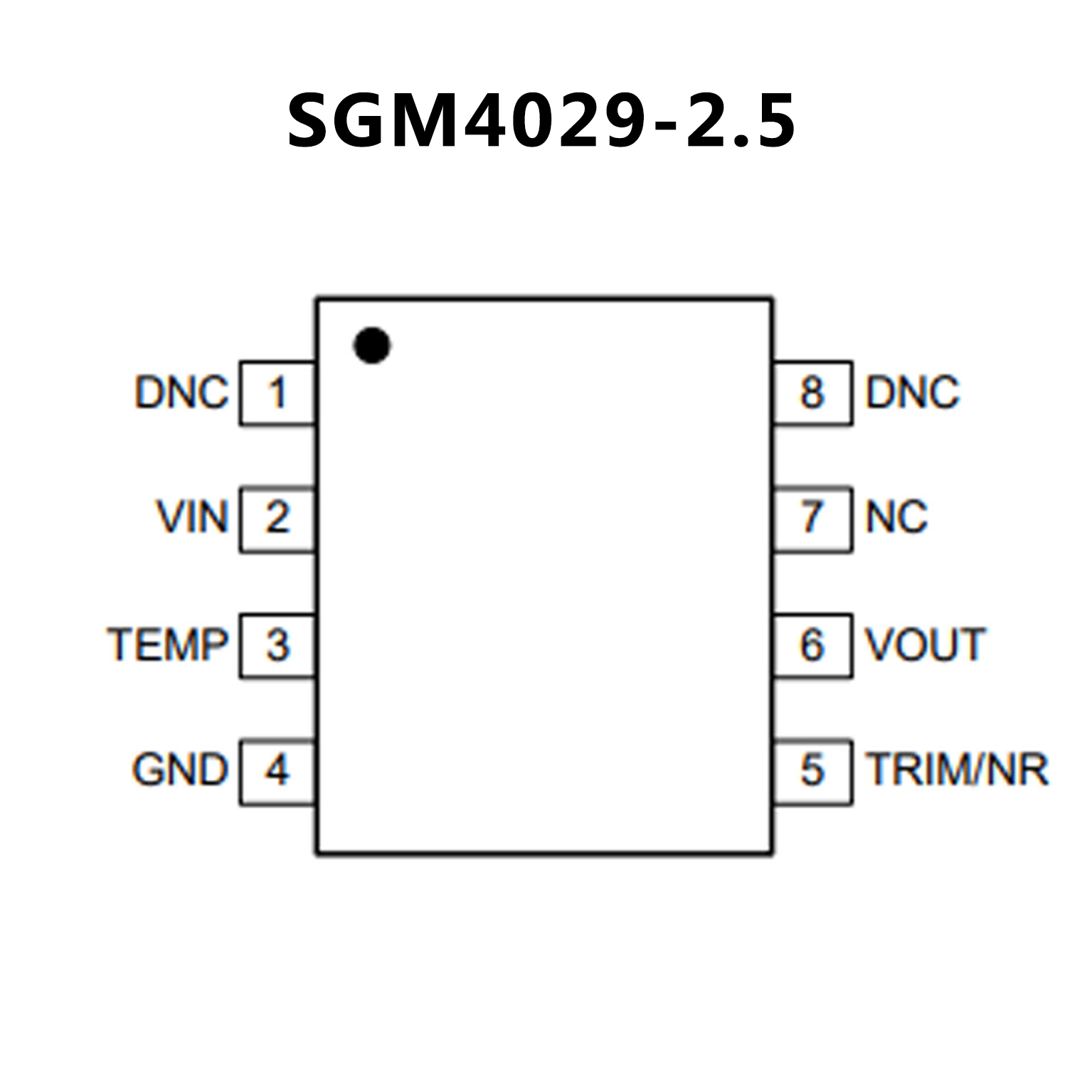

SGM4029-2.5.pdf• Low Temperature Drift:
5ppm/℃ (TYP), 10ppm/℃ (MAX)
• High Accuracy: ±0.05% (TYP), ±0.1% (MAX)
• Low Noise: 3μVPP/V
• Excellent Long-Term Stability:
50ppm/1000 hour (TYP) First 1000 Hours
25ppm/1000 hour (TYP) Second 2000 Hours
• High Output Current: ±10mA
• -40℃ to +125℃ Operating Temperature Range
• Available in Green SOIC-8 and MSOP-8 Packages
• Low noise (0.1 Hz to 10.0 Hz): 3.5 µV p-p at 2.500 V output
• No external capacitor required
• Low temperature coefficient
A grade: 10 ppm/°C maximum
B grade: 3 ppm/°C maximum
• Load regulation: 15 ppm/mA
• Line regulation: 20 ppm/V
• Wide operating range
ADR430: 4.1 V to 18 V
ADR431: 4.5 V to 18 V
ADR433: 5.0 V to 18 V
ADR434: 6.1 V to 18 V
ADR435: 7.0 V to 18 V
• High output source and sink current: 30 mA and −20 mA
• Wide temperature range: −40°C to +125°C
