Low Noise, Low Drift,Precision Voltage Reference,SGM4029 Replace REF5030.
SGM4029
SGM4029.pdf
FEATURES
• Low Temperature Drift:
-40℃ to +125℃: 5ppm/℃ (TYP), 10ppm/℃ (MAX)
0℃ to +85℃: 2ppm/℃ (TYP), 5ppm/℃ (MAX)
• High Accuracy: ±0.05% (TYP), ±0.1% (MAX)
• Low Noise: 5μVP-P/V
• High Output Current: ±10mA
• -40℃ to +125℃ Operating Temperature Range
• Available in Green SOIC-8 and MSOP-8 Packages

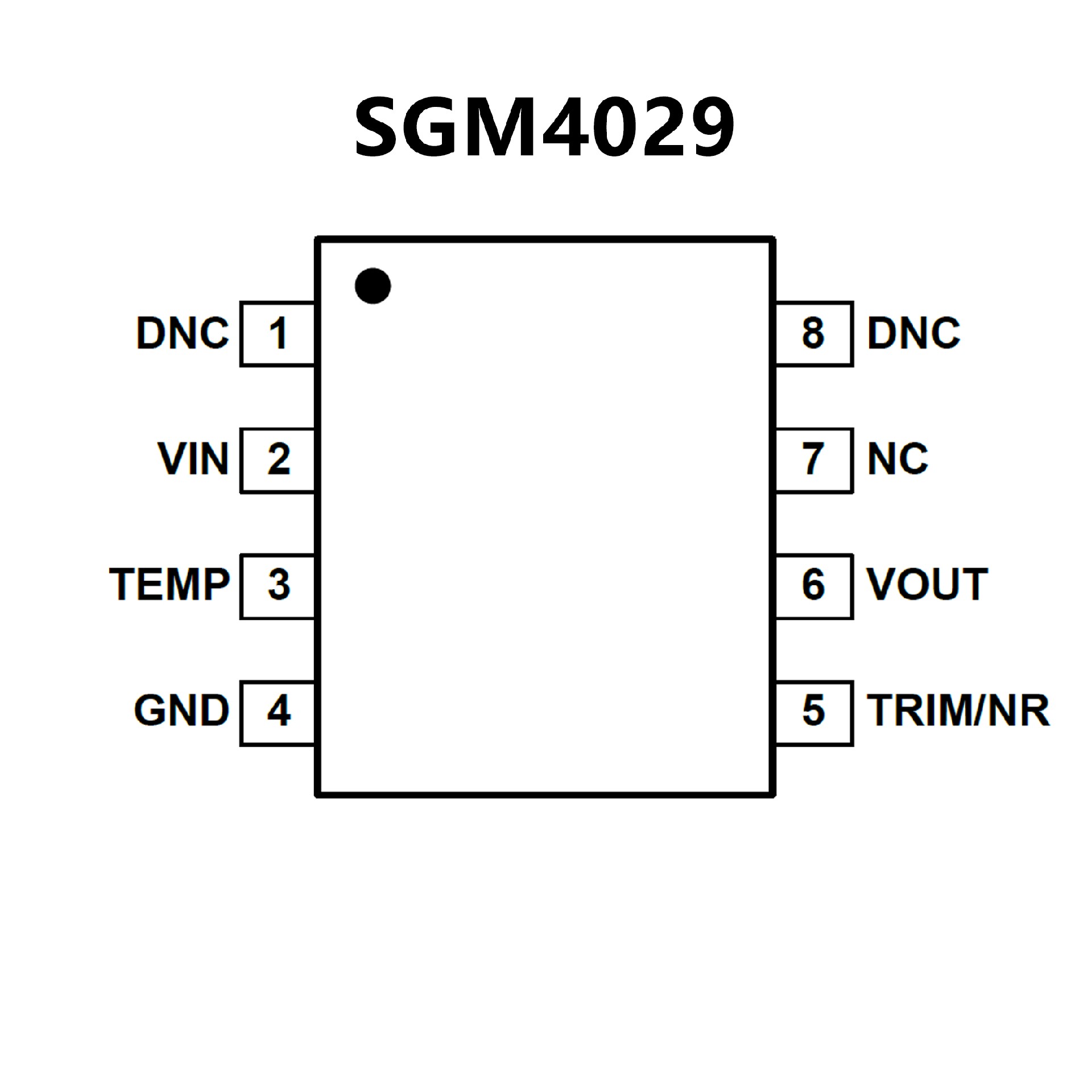

PIN CONFIGUTION

优势替代
FEATURES
• Low temperature drift:
High-grade: 3 ppm/°C (Max)
Standard-grade: 8 ppm/°C (Max)
• High Accuracy:
High-grade: 0.05% (Max)
Standard-rade: 0.1% (Max)
• Low noise: 3 μVPP/V
• Excellent long-term stability:
50 ppm/1000 hr (Typ) First 1000 hours
(VSSOP)
25 ppm/1000 hr (Typ) Second 2000 hours
(VSSOP)
• High-Output Current: ±10 mA
• Temperature range: –40°C to 125°C

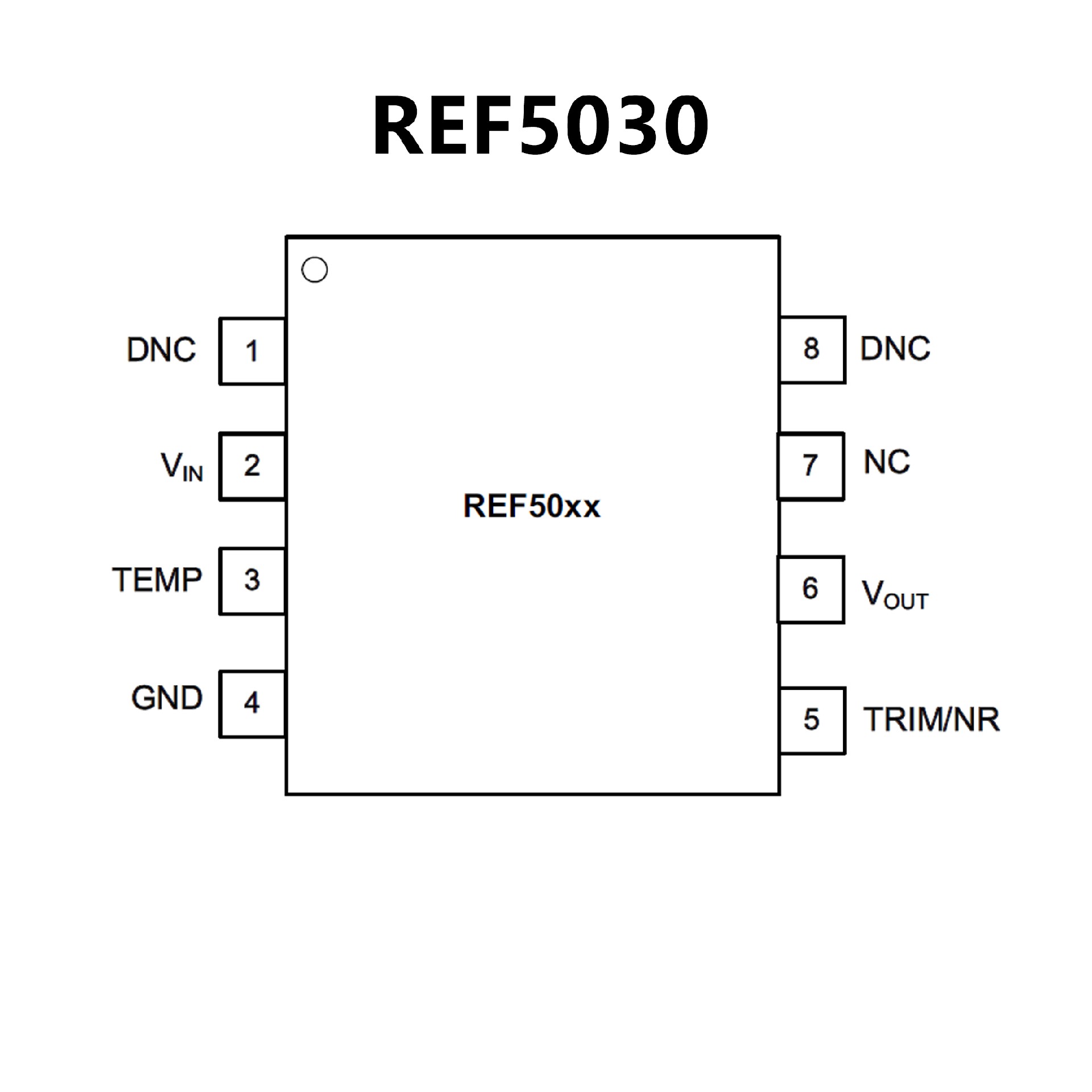

PIN CONFIGUTION
