Micro-Power Precision Shunt Voltage Reference, SGM4040 Replace LM4040.
SGM4040
SGM4040.pdf
SGM4040.pdfFEATURES
• Fixed Output Voltage: 2.5V
• Wide Operating Current
Range:
48μA to 15mA (TYP)
• Output Voltage Accuracy:
SGM4040B: 0.3% (MAX)
SGM4040C: 0.5% (MAX)
• Low Temperature Coefficient: 20ppm/℃ (TYP)
• Low Output Noise: 20μVRMS (TYP)
• Stable without External Capacitors
• Stable with Any Capacitive Load
• -40℃ to +125℃ Operating Temperature Range
• Available in Green SOT-23 and SC70-5 Packages
PIN CONFIGUTION
优势替代
FEATURES
• Small SOT-23 Package
• No Output Capacitor Required
• Tolerates Capacitive Loads
• Fixed Reverse-Breakdown Voltages of
1.225V,
2.500V, 4.096V, and 5.000V
• Adjustable Reverse-Breakdown Version

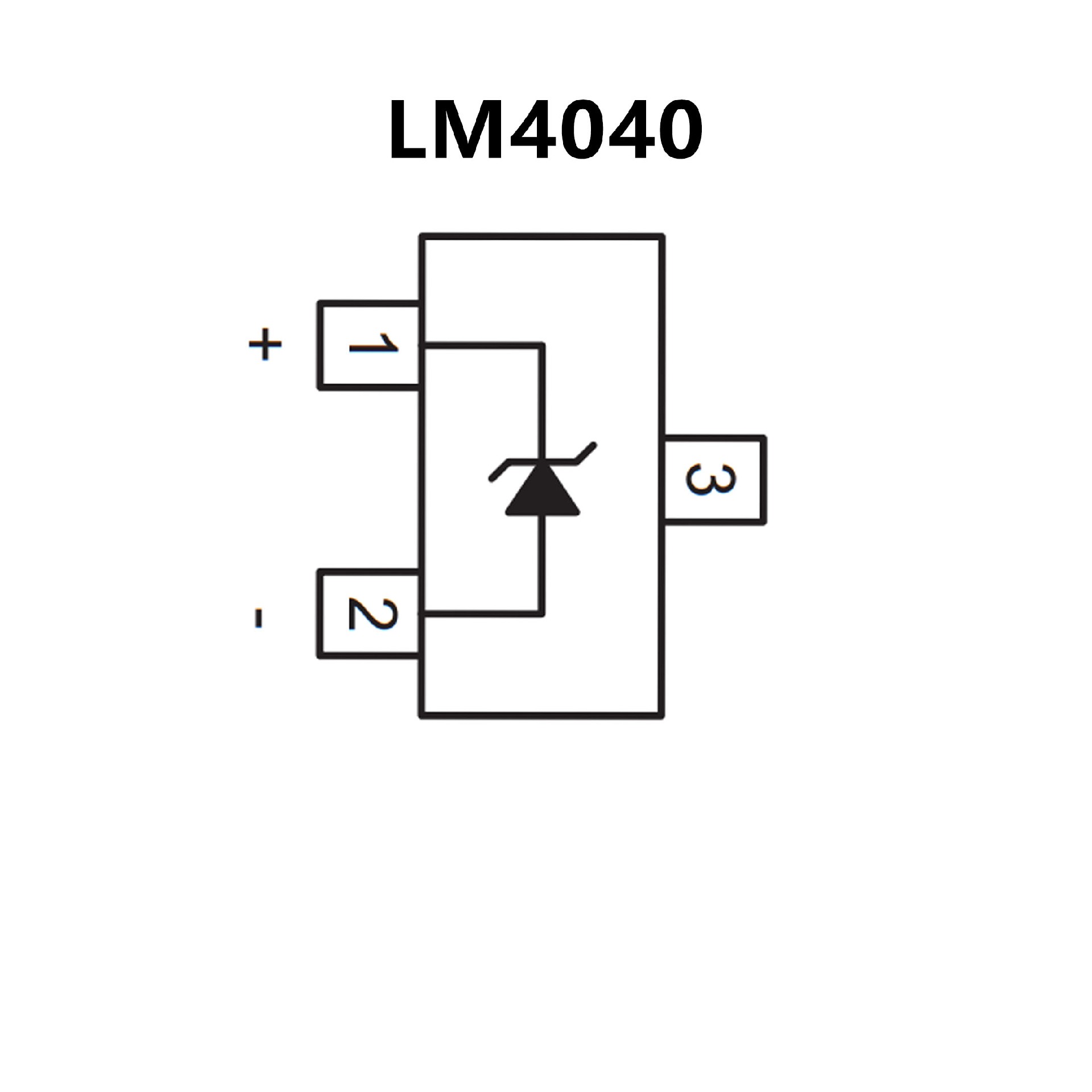

PIN CONFIGUTION
