• Protection of Charger Reverse

  Connection

• Protection of Battery Cell Reverse

  Connection without external load

• Integrate Advanced Power MOSFET

  with Equivalent of 44mΩ RDS(ON)

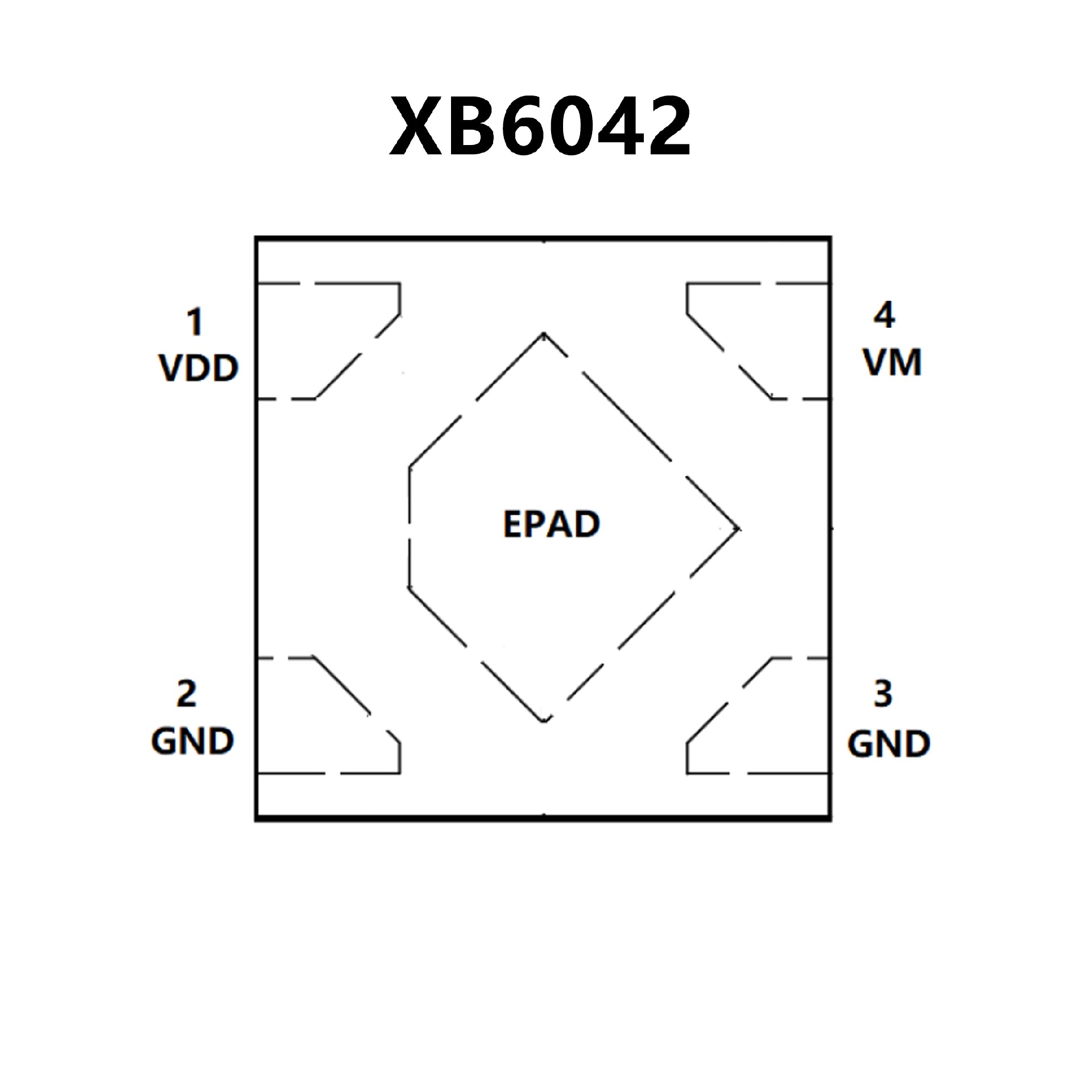

• DFN1X1x0.37-4 Package

• Low Overcharge Release Voltage

• Over-temperature Protection

• Overcharge Current Protection 0.4A

• Two-step Overcurrent Detection:

  -Overdischarge Current 0.4A

  -Load Short Circuiting

• Charger Detection Function

• 0V Battery Charging Function

  - Delay Times are generated inside

• High-accuracy Voltage Detection

• Low Current Consumption

  - Operation Mode:1.5μA Typ.

• RoHS Compliant and Lead (Pb) Free
