• 1- to 4-Cell Charging from a Variety of Input Types
3.58V to 24V Input Operating Voltage Range
USB 2.0/3.0/3.1 (Type C)/USB-PD Input Current
Support
Seamless Buck ↔ Buck-Boost ↔ BoostTransitions
Input Overload Protection (IDPM and VDPM
Regulation)
• CPU Throttling, Power and Current Monitoring
Full nPROCHOT Profile IMVP8/IMVP9 Compliant
Input Current Monitoring
Battery Charge/Discharge Current Monitoring
System Power Monitoring, IMVP8/IMVP9 Compliant
• Narrow Voltage DC (NVDC) Power Path Management
Instant-On with Depleted or No Battery
Battery Supplementation if Adapter is Fully Loaded
BATFET Ideal Diode Emulation in Supplement Mode
• Power-Up USB Port from Battery (USB OTG)
3V to 20.56V Adjustable OTG Voltage with 8mV
Resolution
Up to 6.35A Output Current Limit with 50mA
Resolution
• Pass Through Mode (PTM) to Improve Efficiency
• VMIN Active Protection (VAP) Mode
• VAP Supplements Battery from Input Caps for System
Power Spikes (Battery-Only Conditions)
• Input Current Optimizer Maximizes Power Extraction
• 800kHz or 1.2MHz Selectable Switching Frequency
• SMBus Interface for Flexible System Configuration
• Input Current Limit Setting Pin (without SMBus)
• Integrated ADC for Voltage/Current/Power Monitoring
• Low Battery Quiescent Current
• High Accuracy
TBD% for Charge Voltage Regulation
TBD% for Input/Charge Current Regulation
TBD% for Input/Charge Current Monitor
TBD% for Power Monitor
• Safety
Thermal Shutdown
Input/System/Battery Over-Voltage Protection
Input/MOSFET/Inductor Over-Current Protection

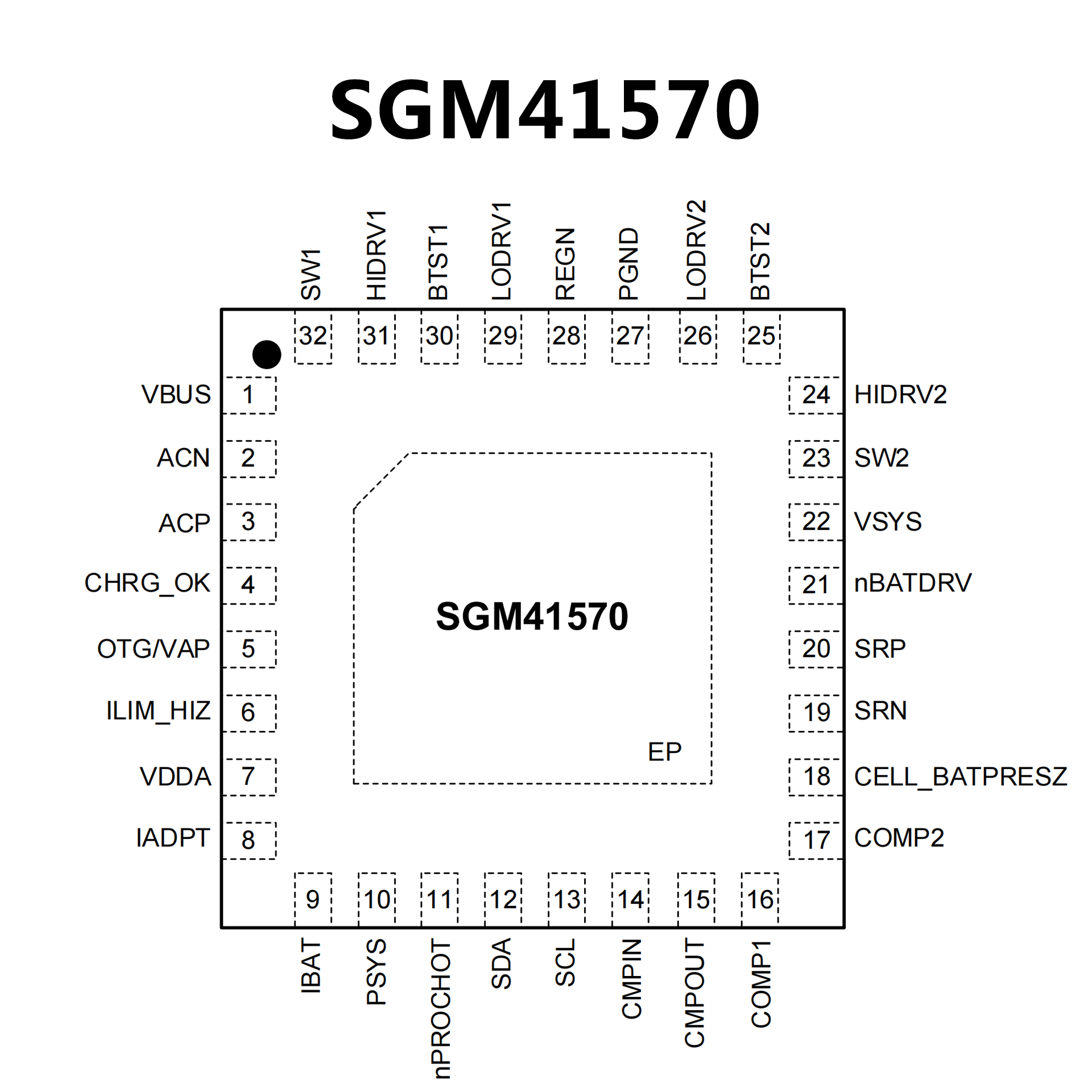

• Available in a Green TQFN-4×4-32AL Package
SGM41570.pdf
