Automotive Low-side Driver with Self-Protection Featuring Temperature and Current Limit, SGM42401Q P2P NCV8402.
SGM42401Q
SGM42401Q.pdf
SGM42401Q.pdfFEATURES
• AEC-Q100 Qualified for Automotive Applications
Device Temperature Grade 1
TA = -40℃ to +125℃
• Full Set of Protections
Short-Circuit Protection
Over-Voltage Protection
ESD Protection
Thermal Shutdown with Automatic Restart
• Clamp Integrated for Switching of Inductive Loads
• Support Gate Threshold Voltage: 1.75V (TYP)
• dV/dt Robustness
• Output Clamp Voltage: 42V
• Static Drain-to-Source On-Resistance:
90mΩ (TYP) at 10V
• Continuous Drain Current: 3.5A (TYP)
• Output Peak Current (Thermal Limited): 8.5A
• Logic Level Input Capable of Analog Driving
• Available in a Green SOT-223-3 Package

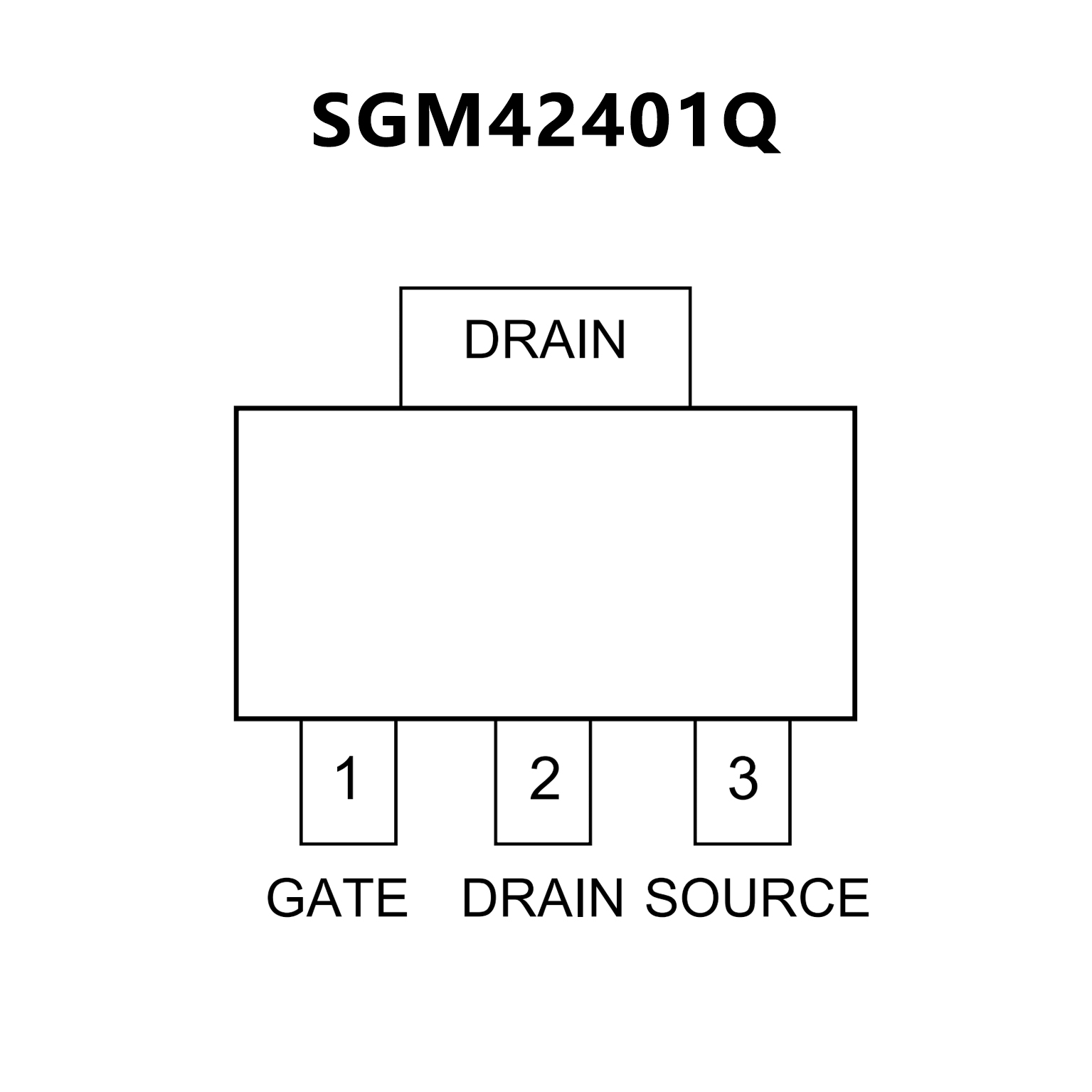

PIN CONFIGUTION
优势替代
FEATURES
• Short−Circuit Protection
• Thermal Shutdown with Automatic Restart
• Overvoltage Protection
• Integrated Clamp for Inductive Switching
• ESD Protection
• NCV8402AMNWT1G − Wettable Flanks Product
• dV/dt Robustness
• Analog Drive Capability (Logic Level Input)
• NCV Prefix for Automotive and Other Applications Requiring
Unique Site and Control Change Requirements;
AEC−Q101 Qualified and PPAP Capable
• These Devices are Pb−Free and are RoHS Compliant

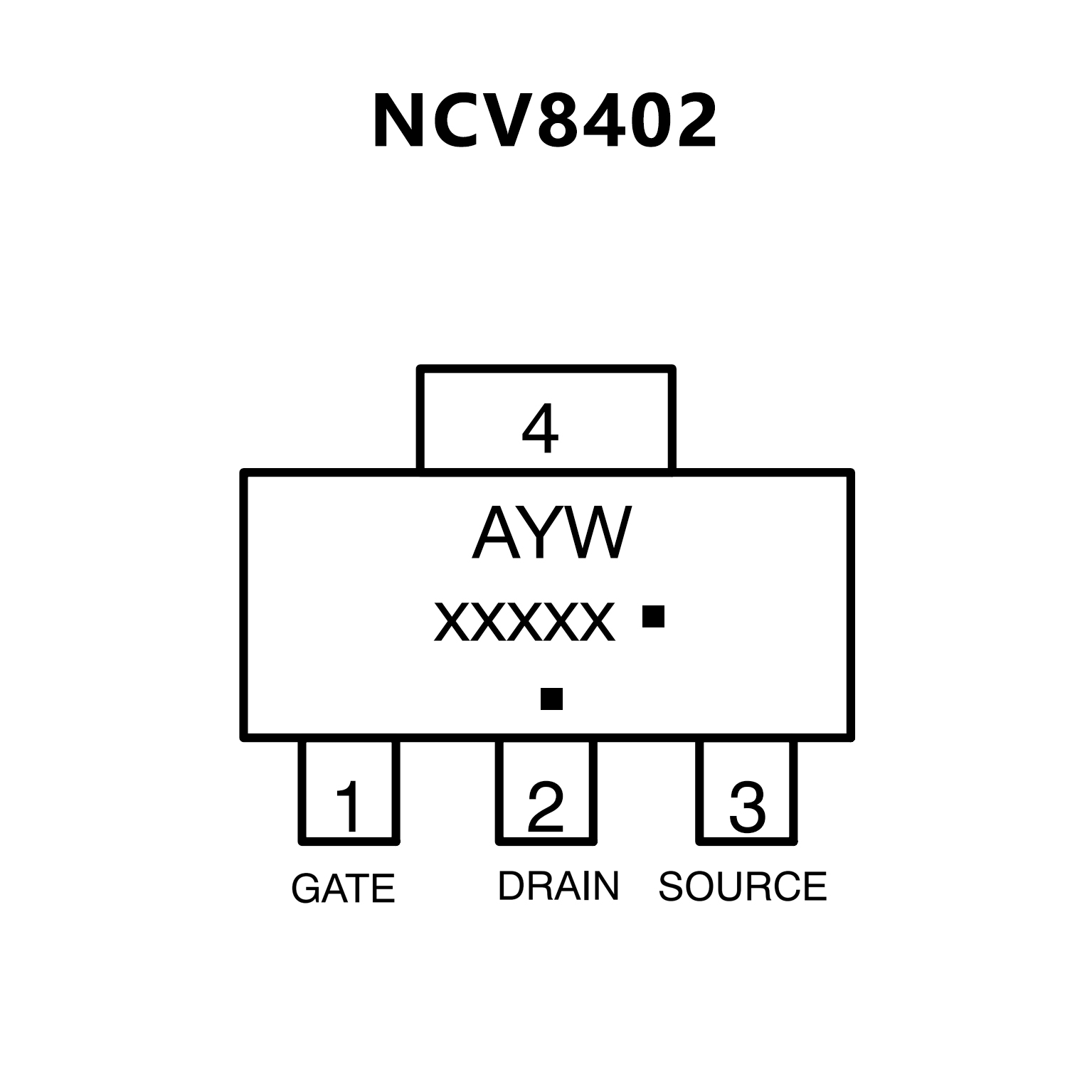

PIN CONFIGUTION
