SGM42402Q.pdf• AEC-Q100 Qualified for Automotive Applications
Device Temperature Grade 1
TA = -40℃ to +125℃
• Full Set of Protections
Short-Circuit Protection
Over-Voltage Protection
ESD Protection
Thermal Shutdown with Automatic Restart
• Clamp Integrated for Switching of Inductive Loads
• dV/dt Robustness
• 42V Drain-to-Source Breakdown Voltage
• Output Clamp Voltage: 42V
• Static Drain-to-Source On-Resistance:
110mΩ/Channel (TYP) at 10V
• Continuous Drain Current:
SOIC-8:
3.2A, 1-Channel On
2.2A/CH, 2-Channel On
SOIC-8 (Exposed Pad):
4.2A, 1-Channel On
3.1A/CH, 2-Channel On
Output Peak Current (Thermal Limited): 8.8A
• Logic Level Input Capable of Analog Driving

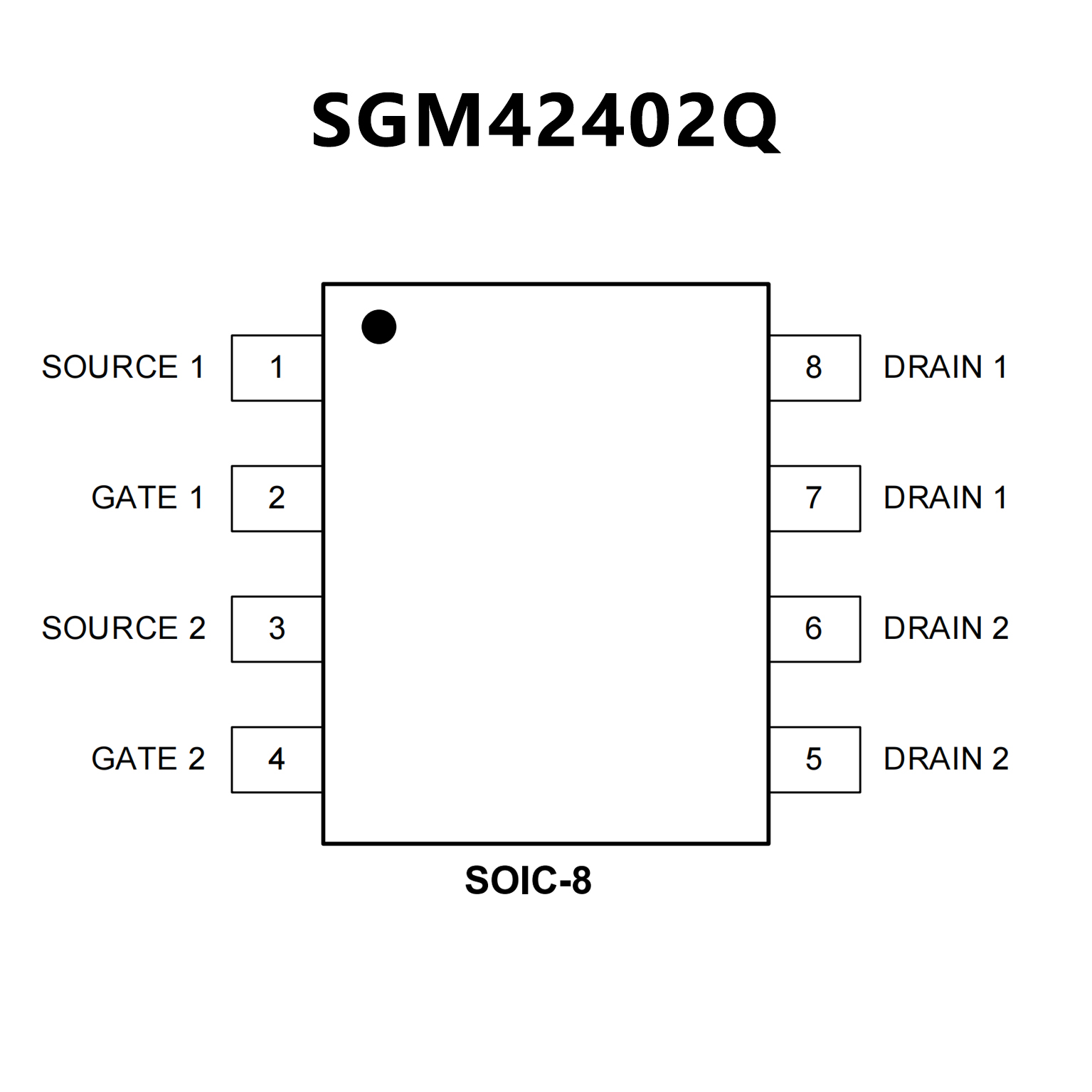

• Available in Green SOIC-8 and SOIC-8 (Exposed
Pad) Packages
• Short−Circuit Protection
• Thermal Shutdown with Automatic Restart
• Overvoltage Protection
• Integrated Clamp for Inductive Switching
• ESD Protection
• dV/dt Robustness
• Analog Drive Capability (Logic Level Input)
• AEC−Q101 Qualified
• NCV Prefix for Automotive and Other Applications
Requiring Site and Change Control
• These Devices are Pb−Free and are RoHS Compliant
