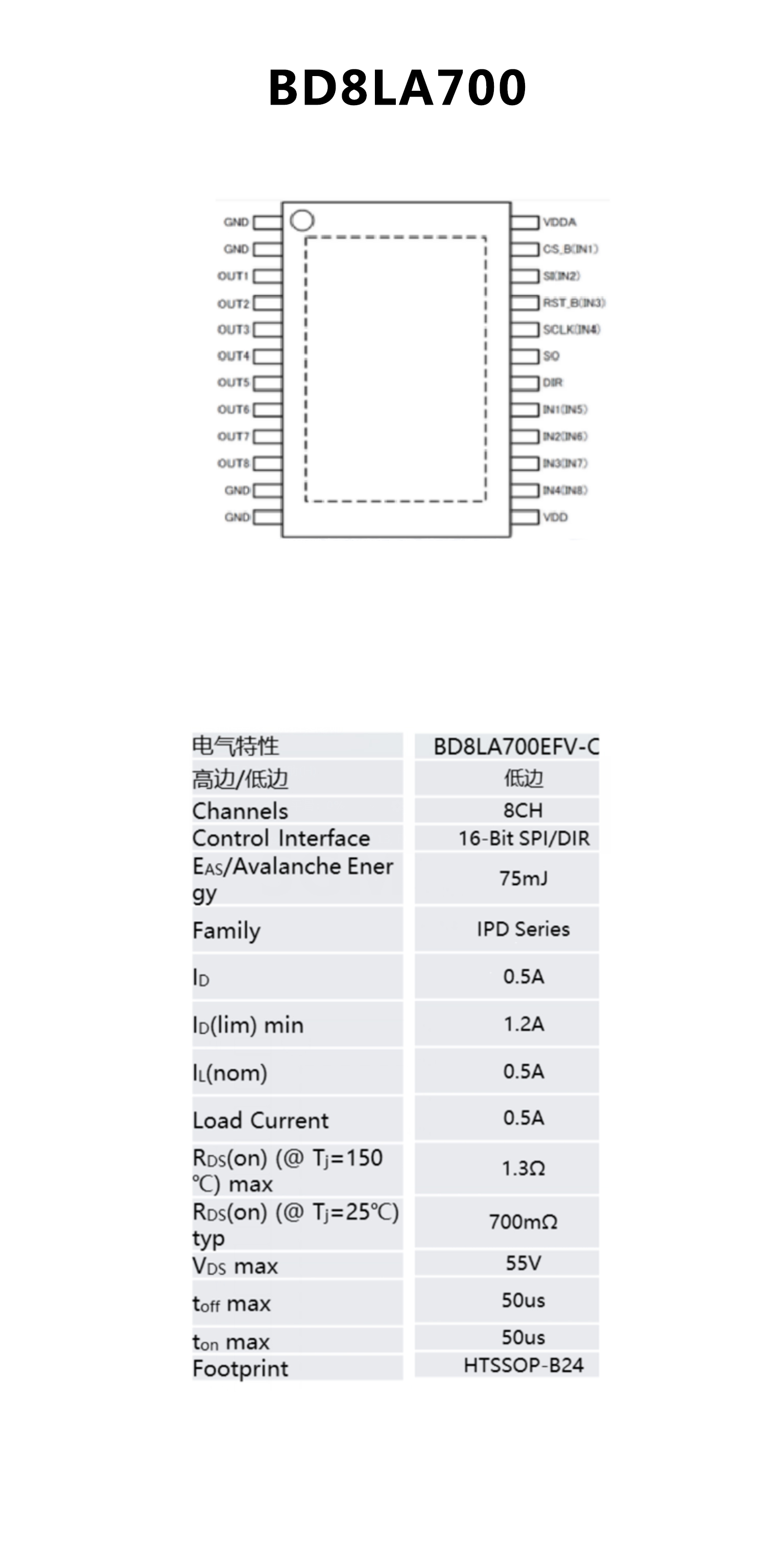

• Monolithic power IC that has a built-in control part (CMOS) and a power MOS FET on 1chip

• 8ch Low-side switch for driving resistive, inductive load

• 16bit Serial peripheral interface(SPI) for diagnostics and control

• Built-in Open Load Detection circuit in output-off state

• Built-in Over Current Protection circuit (OCP)

• Built-in Active Clamp circuit

• Built-in Thermal shutdown circuit (TSD）

• Low On resistance of RON=700mΩ(VIN=5V, Tj=25°C, Io=0.2A, Typ)

• Surface mount HTSSOP-B24 Package

• AEC-Q100 Qualified
