3A Triple 1/2-H Bridge Driver, SGM42553 Replace DRV8313.
SGM42553
SGM42553.pdf
SGM42553.pdfFEATURES
• Triple 1/2-H-Bridge Driver IC
3-Phase Brushless DC Motors
Solenoid and Brushed DC Motors
• High Current Drive Capability: 3A Peak
• Low MOSFET ON-Resistance
• Independent 1/2-H-Bridge Control
• Uncommitted Comparator Can Be Used for
Current Limit or Other Functions
• Built-In 3.3V 10mA LDO Regulator
• 8V to 60V Operating Supply Voltage Range
• Sleep Mode for Standby Operation

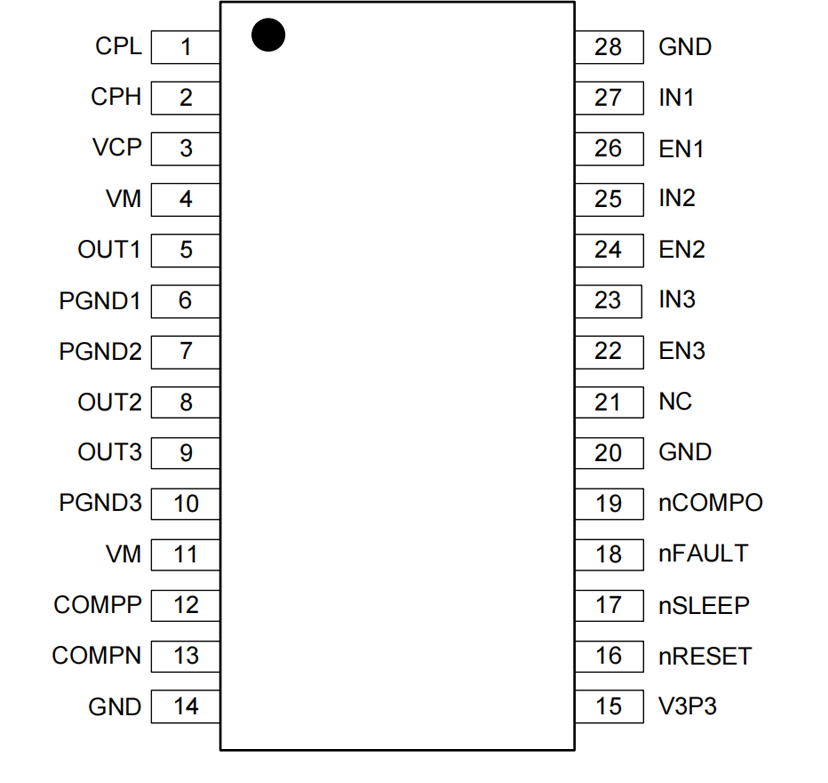

PIN CONFIGUTION
优势替代
FEATURES
• Triple 1/2-H Bridge Driver IC
3-Phase brushless DC Motors
Solenoid and Brushed DC Motors
• High Current-Drive Capability: 2.5-A Peak
• Low MOSFET ON-Resistance
• Independent 1/2-H-Bridge Control
• Uncommitted Comparator Can Be Used for
Current Limit or Other Functions
• Built-In 3.3-V 10-mA LDO Regulator
• 8-V to 60-V Operating Supply-Voltage Range
• Sleep Mode for Standby Operation
• Small Package and Footprint
28-Pin HTSSOP (PowerPAD™ Package)
36-Pin VQFN
PIN CONFIGUTION
