Dual H-Bridge Motor Controller IC, SGM42613 Replace DRV8813.
SGM42613
SGM42613.pdf
SGM42613.pdfFEATURES
• 8.2V to 36V Operating Voltage Range
• Up to 2.5A Drive Current at VM = 24V, TJ = +25℃
• Dual H-Bridge Current Controlled Motor Driver
• Drives a Bipolar Stepper Motor
• Four Current Scaling Control
• Selectable Slow, Fast or Mixed Decay Modes
• Industry Standard Parallel Digital Interface
• Low Current Sleep Mode
• 3.3V Reference Output
• Full Set of Protections
Over-Current Protection (OCP)
Thermal Shutdown (TSD)
VM Under-Voltage Lockout (UVLO)
Active Low Fault Indication Pin (nFAULT)
• Available in a Green TSSOP-28 (Exposed Pad) Package

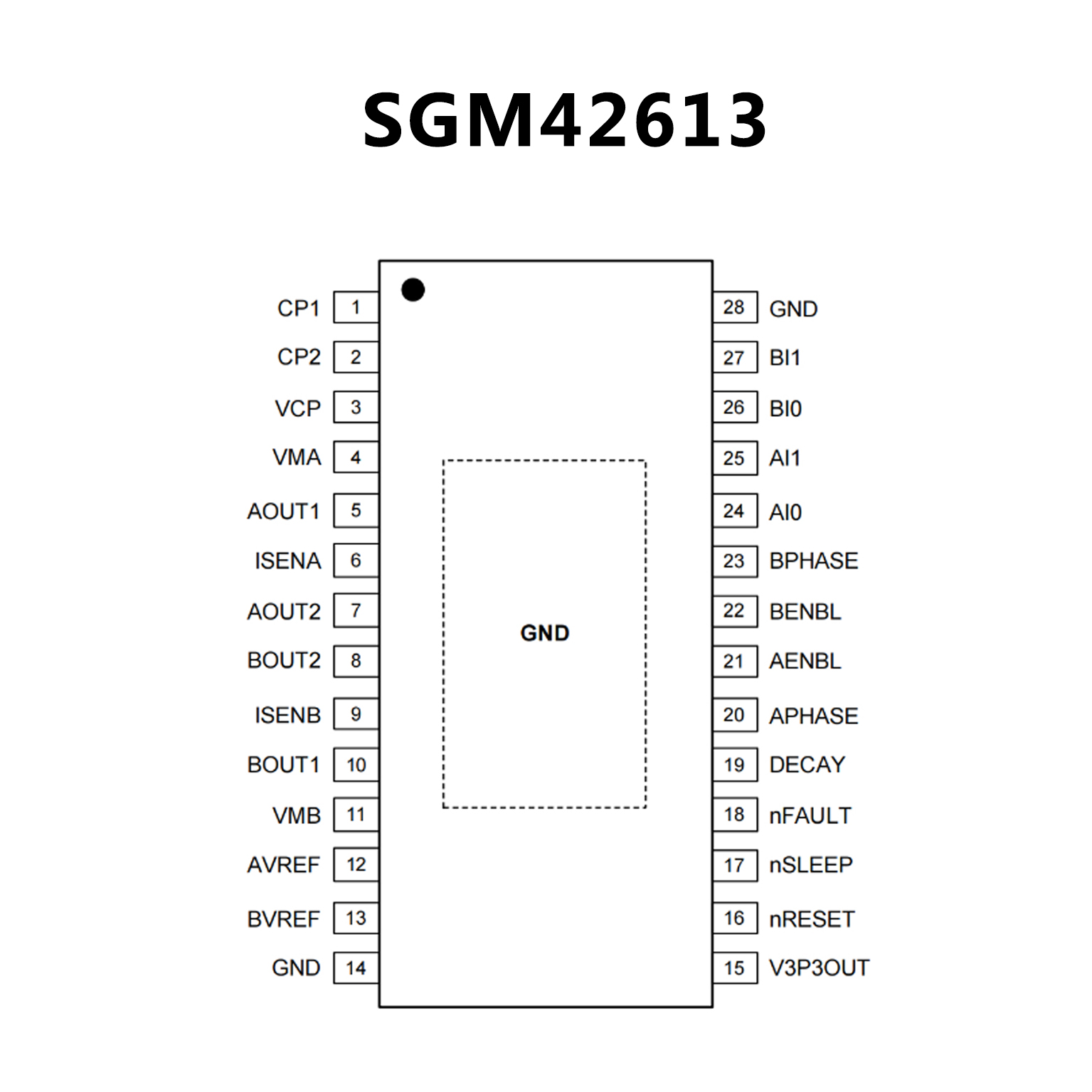

PIN CONFIGUTION
优势替代
FEATURES
• 8.2-V to 45-V Operating Supply Voltage Range
• 2.5-A Maximum Drive Current at 24 V and TA = 25°C
• Dual H-Bridge Current Control Motor Driver
Drive a Bipolar Stepper or Two DC Motors
Four Level Winding Current Control
• Multiple Decay Modes
Mixed Decay
Slow Decay
Fast Decay
• Industry Standard Parallel Digital ControlInterface
• Low Current Sleep Mode
• Built In 3.3-V ReferenceOutput
• Small Package and Footprint
• Protection Features
Overcurrent Protection (OCP)
Thermal Shutdown (TSD)
VM Undervoltage Lockout (UVLO)
Fault Condition Indication Pin (nFAULT)

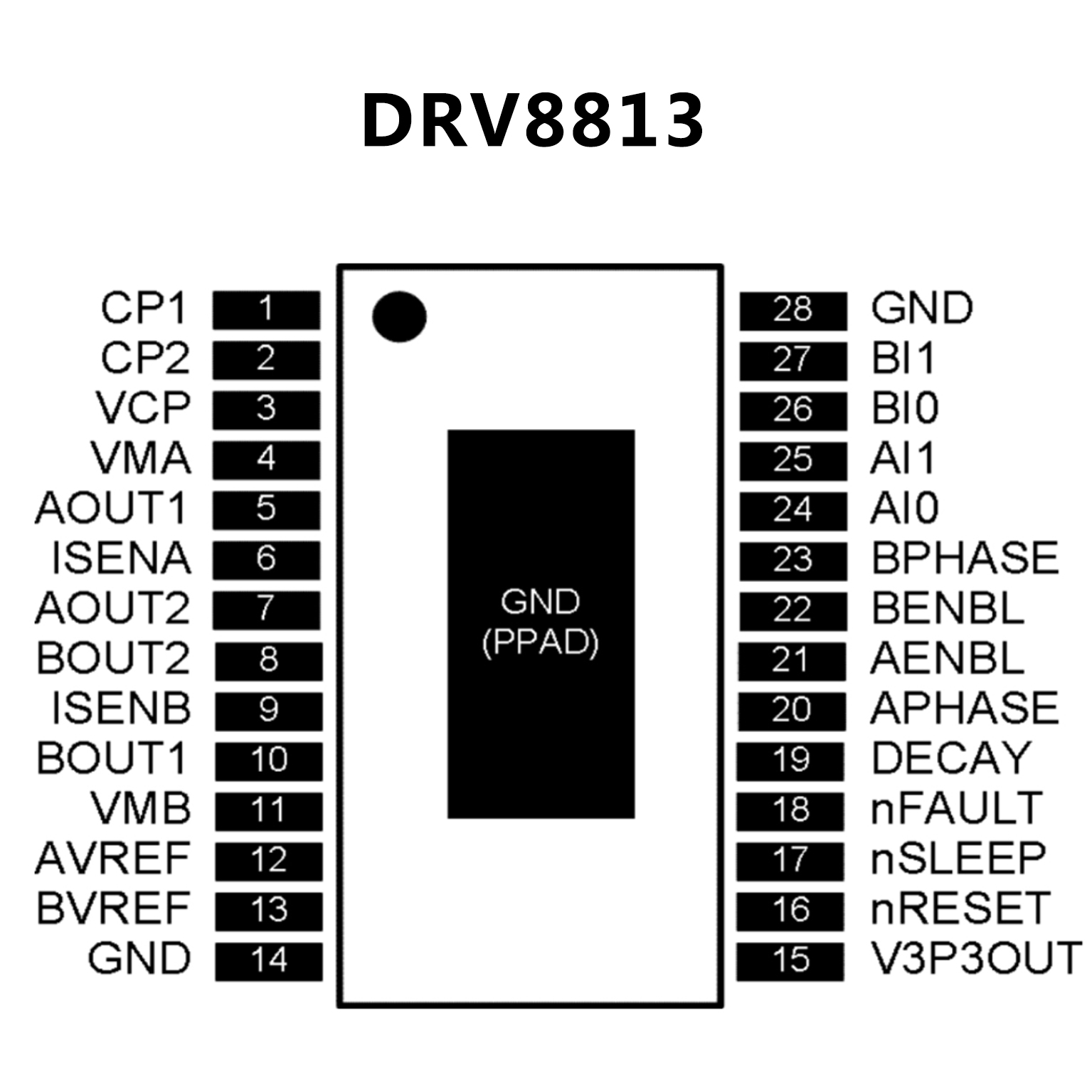

PIN CONFIGUTION
