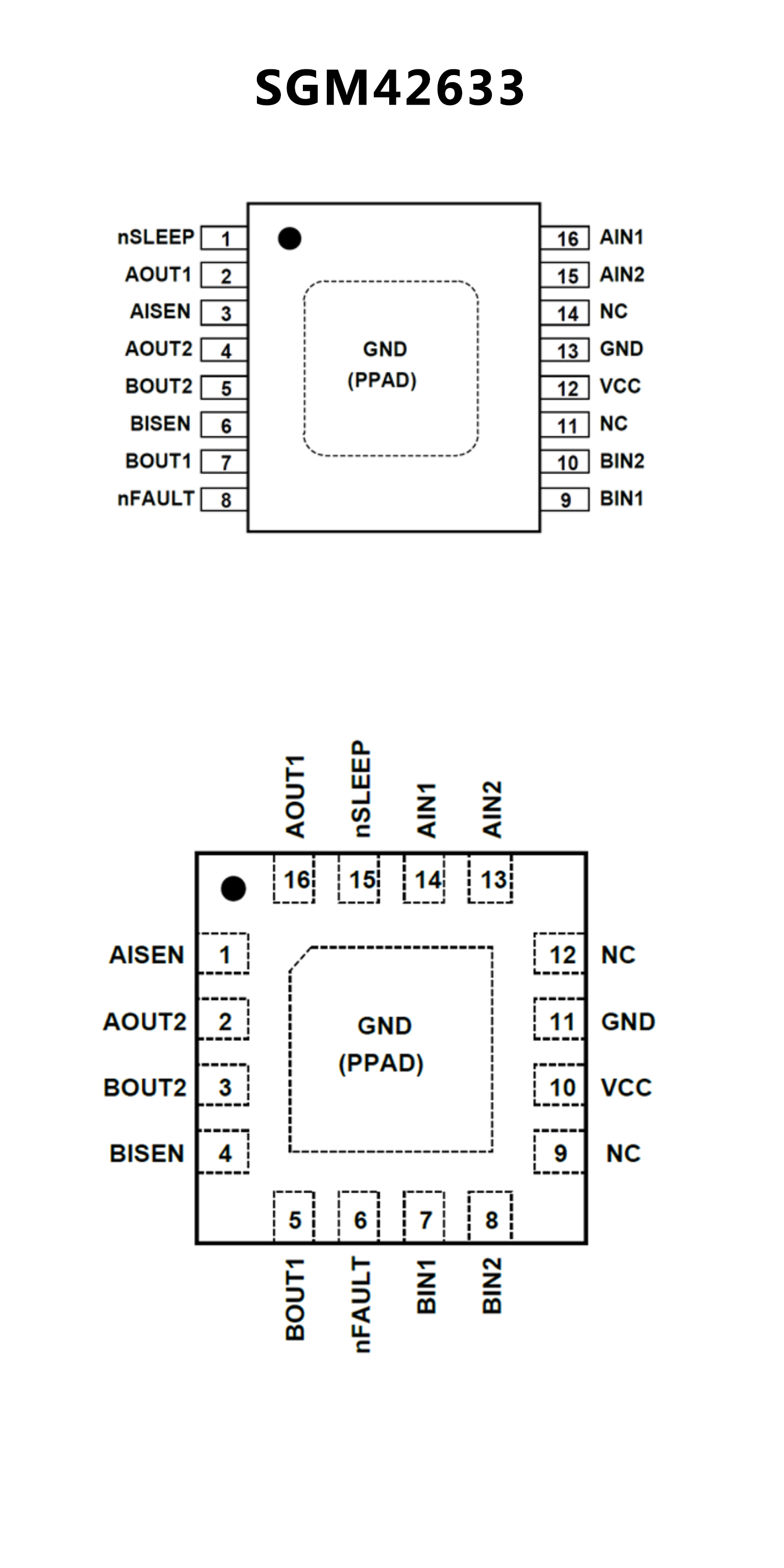

SGM42633.pdf• Wide Power Supply Voltage Range: 2.5V to 12V
• Dual H-Bridge Motor Driver
• Low Quiescent Current: 150μA (TYP)
• Sleep Mode Supply Current: 0.32μA (TYP)
• xINx (PWM) Interface
• Output Current Capability (at VCC = 5V, +25℃)
TSSOP Package:0.7A RMS, 1A
Peak per H-Bridge1.4A RMS in Parallel Mode
TQFN Package:0.6A RMS, 1A
Peak per H-Bridge1.2A RMS in Parallel Mode
• UVLO for VCC Voltage
• Over-Current Protection (OCP)
• Thermal Shutdown (TSD)
• Fault Indication Pin (nFAULT)
• Available in Green TSSOP-16 (Exposed Pad)
andTQFN-3×3-16L Packages

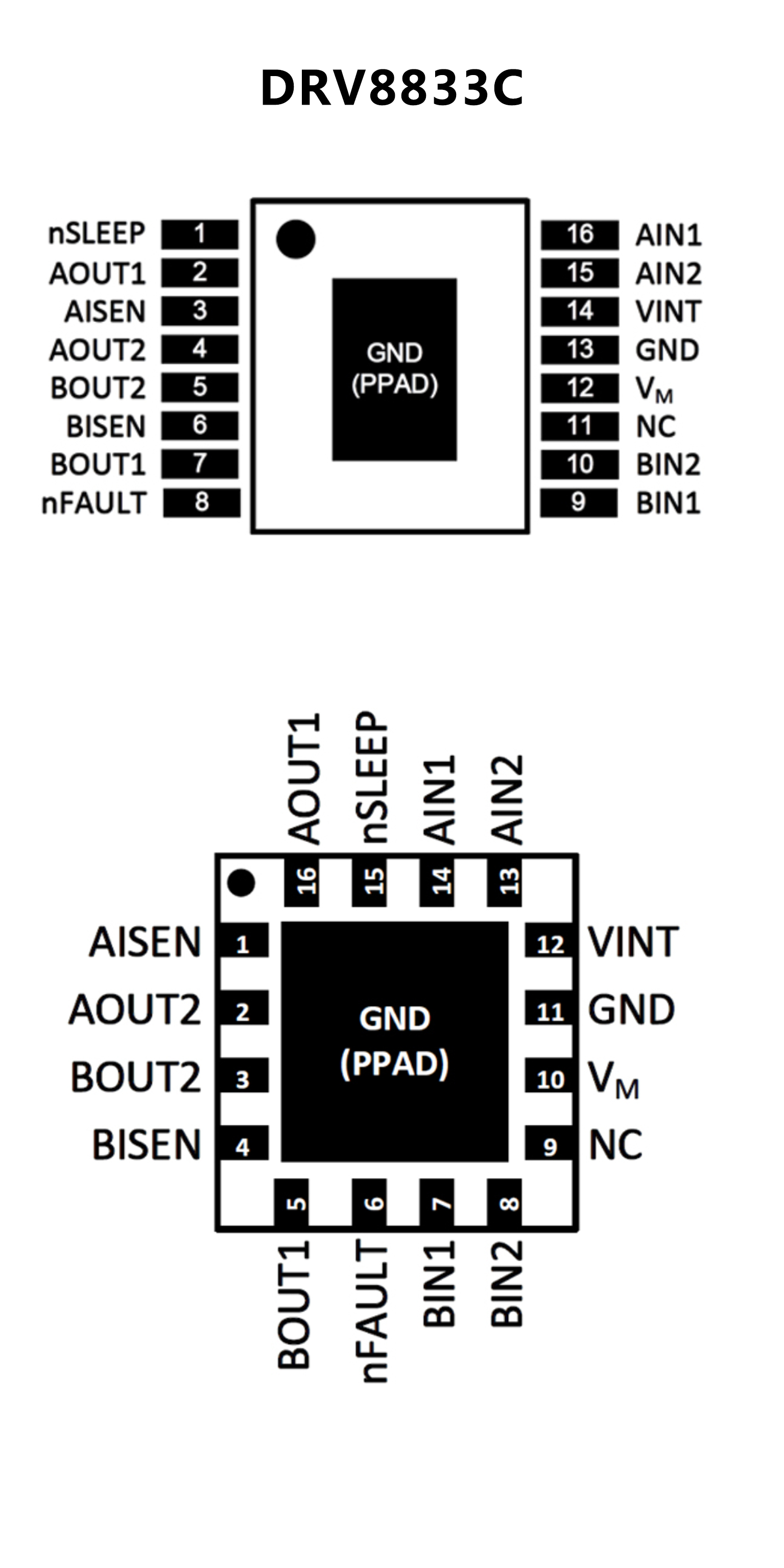

• Dual H-Bridge Motor Driver With Current Control
– 1 or 2 DC Motors or 1 Stepper Motor
– Low On-Resistance: HS + LS = 1735 mΩ (Typical, 25°C)
• Output Current Capability (at VM = 5 V, 25°C)
– PWP (HTSSOP) Package
– 0.7-A RMS, 1-A Peak per H-Bridge
– 1.4-A RMS in Parallel Mode
– RTE (QFN) Package
– 0.6-A RMS, 1-A Peak per H-Bridge
– 1.2-A RMS in Parallel Mode
• Wide Power Supply Voltage Range
– 2.7 to 10.8 V
• Integrated Current Regulation
• Easy Pulse-Width-Modulation (PWM) Interface
• 1.6-μA Low-Current Sleep Mode (at 5 V)
