Dual H-Bridge Motor Driver, SGM42633 Replace DRV8833CPWPR.
SGM42633
SGM42633.pdf
SGM42633.pdfFEATURES
• Wide Power Supply Voltage Range: 2.5V to 12V
• Dual H-Bridge Motor Driver
• Low Quiescent Current: 150μA (TYP)
• Sleep Mode Supply Current: 0.32μA (TYP)
• xINx (PWM) Interface
• Output Current Capability (at VCC = 5V, +25℃)
TSSOP Package:0.7A RMS, 1A
Peak per H-Bridge1.4A RMS in Parallel Mode
TQFN Package:0.6A RMS, 1A
Peak per H-Bridge1.2A RMS in Parallel Mode
• UVLO for VCC Voltage
• Over-Current Protection (OCP)
• Thermal Shutdown (TSD)
• Fault Indication Pin (nFAULT)
• Available in Green TSSOP-16 (Exposed Pad)
andTQFN-3×3-16L Packages

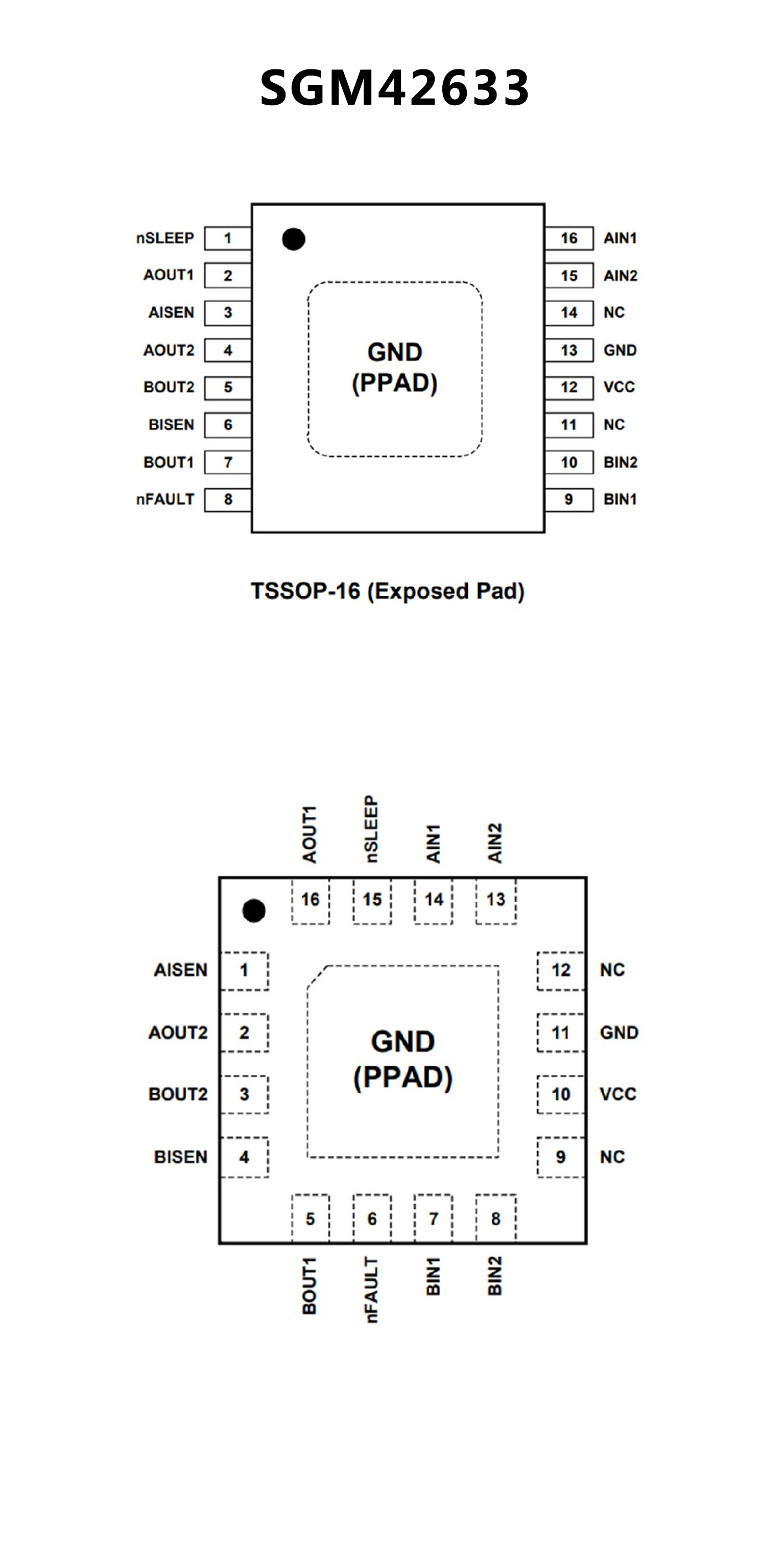

PIN CONFIGUTION
优势替代
FEATURES
• Dual H-Bridge Motor Driver With Current Control
1 or 2 DC Motors or 1 Stepper Motor
Low On-Resistance: HS + LS = 1735 mΩ(Typical, 25°C)
• Output Current Capability (at VM = 5 V, 25°C)
PWP (HTSSOP) Package
0.7-A RMS, 1-A Peak per H-Bridge
1.4-A RMS in Parallel Mode
RTE (QFN) Package
0.6-A RMS, 1-A Peak per H-Bridge
1.2-A RMS in Parallel Mode
• Wide Power Supply Voltage Range
2.7 to 10.8 V
• Integrated Current Regulation
• Easy Pulse-Width-Modulation (PWM) Interface
• 1.6-µA Low-Current Sleep Mode (at 5 V)
• Small Package and Footprint
16 HTSSOP (PowerPAD™) 5.00 × 6.40 mm
16 QFN (PowerPAD) 3.00 × 3.00 mm
• Protection Features
VM Undervoltage Lockout (UVLO)
Overcurrent Protection (OCP)
Thermal Shutdown (TSD)
Fault Indication Pin (nFAULT)

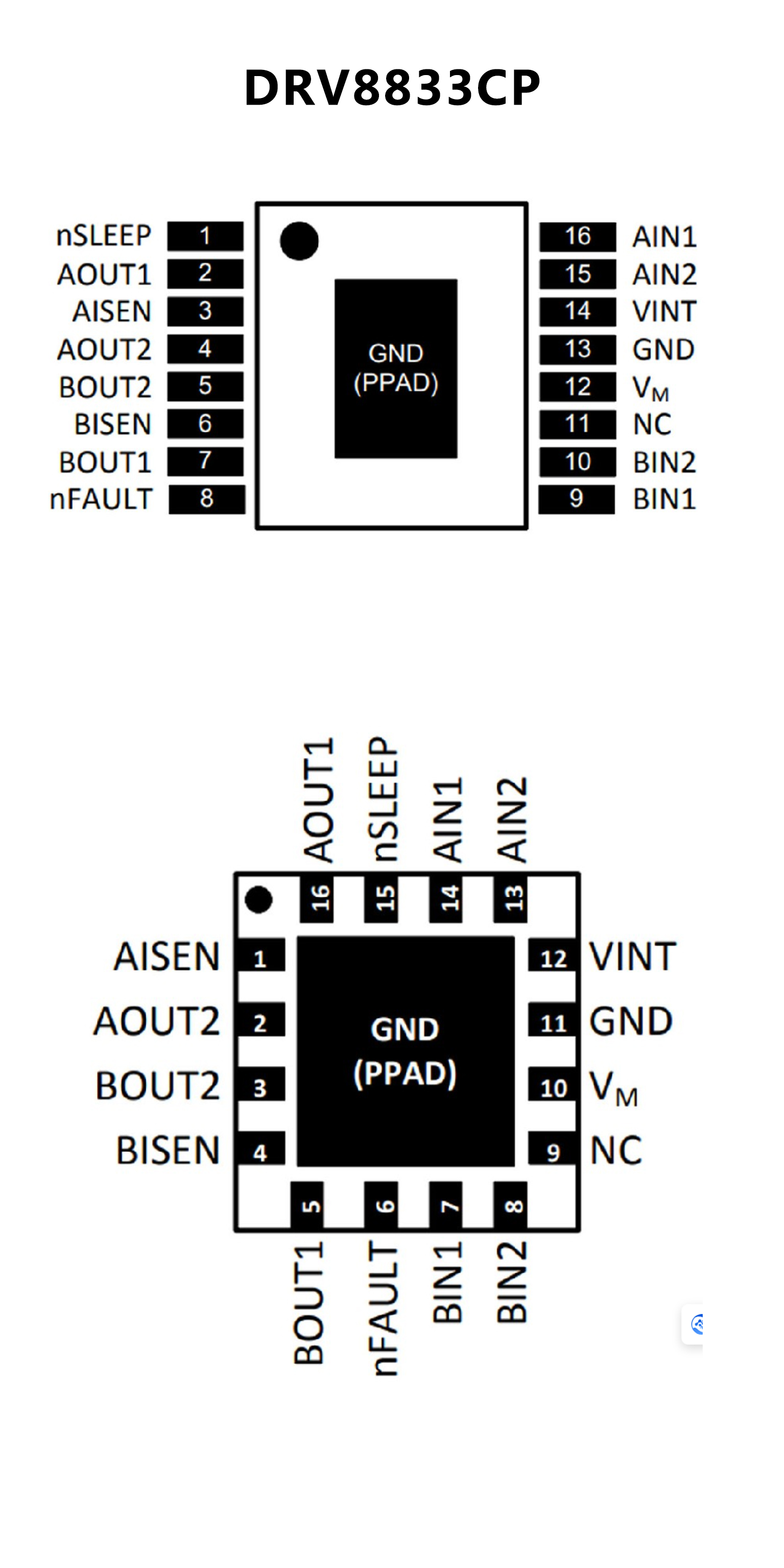

PIN CONFIGUTION
